Domains Overview

The Quality sections of regulatory applications are organized into a table of contents that includes sections and sub-sections under the titles “Drug Substance” and “Drug Product”. The structure is defined in the Common Technical Document for the Registration of Pharmaceuticals for Human Use, or CTD (see References). This structure is designed for unstructured PDF and Word documents.

Rather than recreating the legacy table of contents format in FHIR, pharmaceutical quality data represented by FHIR in this guide are organized into 14 new domains (see figure below). These 14 domains are designed to maximize the use of structured data and deliver benefits in terms of flexibility, efficiency, and data reuse.

Each domain has a page that describes its objective and provides a component diagram (where applicable), description of components, and examples.

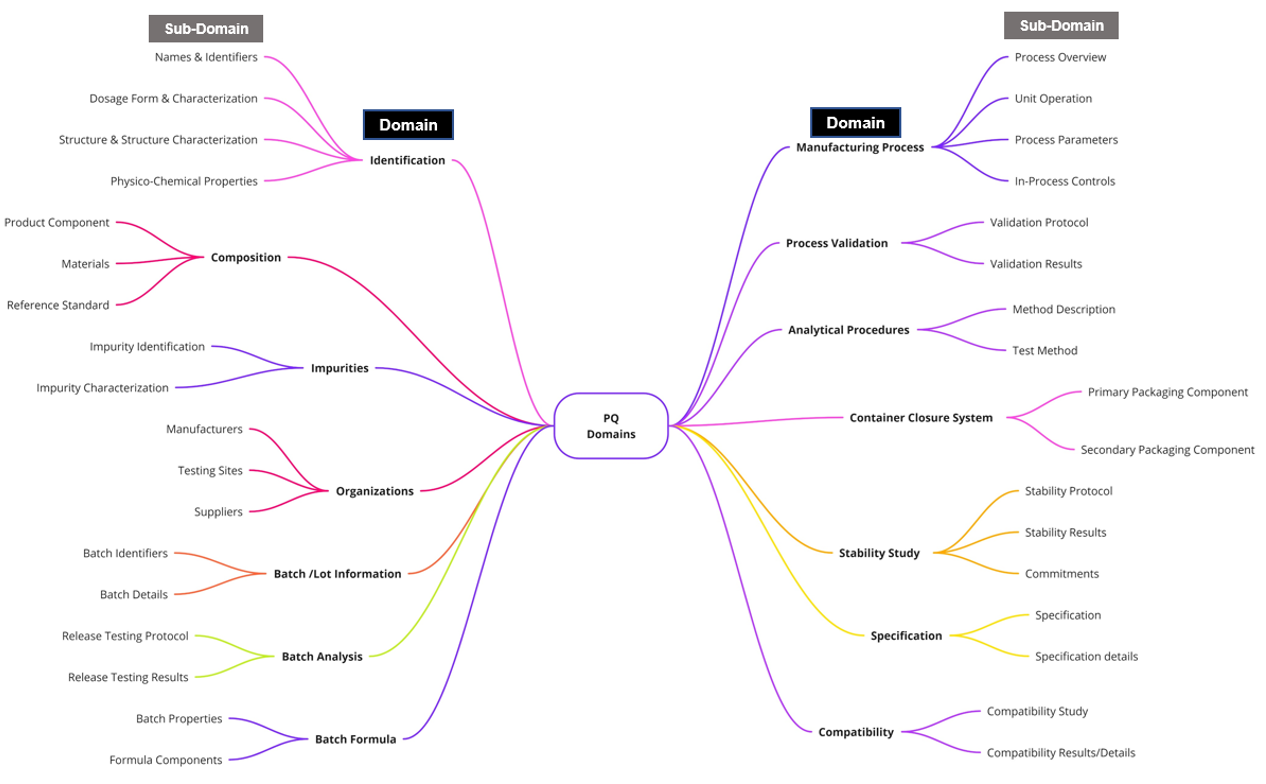

Figure: Pharmaceutical Quality (PQ) FHIR IG Data Domains

The 14 PQ domains and their supporting sub-domains, in which each domain is based on a major PQ concept, such as Stability or Container Closure System. The subdomains contain individual data elements (not pictured) which capture the desired level of granularity needed for effective data exchange and communication of data across multiple parties.

Table: Mapping the legacy CTD Drug Substance and Drug Product sections to the new FHIR Quality Domains

FHIR IG Domain	Drug Product	Drug Substance
1. Identification	3.2.P.2 Pharmaceutical Development    3.2.P.2.2 Drug Product    3.2.P.2.5 Microbiological Attributes 3.2.P.4 Control of Excipients    3.2.P.4.5 Excipients of Human or Animal Origin    3.2.P.4.6 Novel Excipients	3.2.S.1 General Information    3.2.S.1.3 General Properties 3.2.S.3 Characterisation    3.2.S.3.1 Elucidation of Structure and Other Characteristics
2. Composition	3.2.P.1 Description and Composition of the Drug Product 3.2.P.6 Reference Standards or Materials	3.2.S.5 Reference Standards or Materials
3. Impurities	3.2.P.5 Control of Drug Product    3.2.P.5.5 Characterisation of Impurities	3.2.S.3 Characterisation    3.2.S.3.2 Impurities
4. Organizations	3.2.P.3 Manufacture    3.2.P.3.1 Manufacturer(s)	3.2.S.2 Manufacture    3.2.S.2.1 Manufacturer(s)
5. Batch or Lot Information	3.2.P.5 Control of Drug Product    3.2.P.5.4 Batch Analyses	3.2.S.4 Control of Drug Substance    3.2.S.4.4 Batch Analyses
6. Batch Analysis	3.2.P.5 Control of Drug Product    3.2.P.5.4 Batch Analyses	3.2.S.4 Control of Drug Substance    3.2.S.4.4 Batch Analyses
7. Batch Formula	3.2.P.3 Manufacture    3.2.P.3.2 Batch Formula	Not Applicable
8. Manufacturing Process	3.2.P.3 Manufacture    3.2.P.3.3 Description of Manufacturing Process and Process Controls    3.2.P.3.4 Controls of Critical Steps and Intermediates	3.2.S.2 Manufacture    3.2.S.2.2 Description of Manufacturing Process and Process Controls
9. Process Validation	3.2.P.3 Manufacture    3.2.P.3.5 Process Validation and/or Evaluation	3.2.S.2 Manufacture    3.2.S.2.5 Process Validation and/or Evaluation
10. Analytical Procedures	3.2.P.5 Control of Drug Product    3.2.P.5.2 Analytical Procedures	3.2.S.4 Control of Drug Substance    3.2.S.4.2 Analytical Procedures
11. Container Closure System	3.2.P.2 Pharmaceutical Development    3.2.P.2.4 Container Closure System 3.2.P.7 Container Closure System	3.2.S.6 Container Closure System
12. Stability Study	3.2.P.8 Stability    3.2.P.8.1 Stability Summary and Conclusions    3.2.P.8.3 Stability Data	3.2.S.7 Stability    3.2.S.7.1 Stability Summary and Conclusions    3.2.S.7.3 Stability Data
13. Drug Specifications	3.2.P.5 Control of Drug Product    3.2.P.5.1 Specification(s)	3.2.S.4 Control of Drug Substance    3.2.S.4.1 Specification
14. Compatibility	3.2.P.2 Pharmaceutical Development    3.2.P.2.6 Compatibility	Not Applicable

Matrix: Reuse of FHIR Component Building Blocks Across PQ Domains

Pharmaceutical   Quality (Industry) FHIR IG component profiles	1. Drug Identification	2. Composition	3. Impurities	4. Organizations	5. Batch/Lot Information	6. Batch Analysis	7. Batch Formula	8. Manufacturing Process	9. Process Validation	10. Analytical Procedures	11. Container Closure System	12. Stability Study	13. Drug Specification	14. Compatibility
ActivityDefinition   - Test Drug PQ									X			X
Composition   - Drug PQ	X
DeviceDefinition   - Drug PQ								X	X	X
DiagnosticReport   - Analysis Drug PQ	X	X	X			X			X			X		X
DocumentReference   - Drug PQ			X					X
Ingredient   - Drug PQ	X	X				X	X	X	X		X	X	X
ManufacturedItemDefinition   - Drug PQ	X										X
Medication   - Batch Information Drug PQ	X		X		X	X	X		X			X		X
MedicinalProductDefinition   - Drug Product PQ	X	X	X		X	X	X	X	X	X	X	X	X	X
Observation   - Test Result Drug PQ	X	X	X			X			X			X		X
ObservationDefinition   - Test Method Drug PQ	X	X				X			X	X	X	X	X	X
Organization   - Drug PQ	X	X	X	X	X	X		X	X			X	X	X
PackagedProductDefinition   - Drug PQ		X									X
PlanDefinition   - Drug PQ	X	X				X		X	X	X	X	X	X	X
Procedure   - Drug PQ									X
SpecimenDefinition   - Drug PQ										X		X
Specimen   - Drug PQ					X							X
SubstanceDefinition   - Component Substance Drug PQ	X	X	X		X	X	X	X	X	X	X	X	X
Substance   - Drug PQ	X	X				X			X			X

Summary of Domain resources

The resources that are used across all domains are summarised in this diagram:
