Da Vinci Risk Adjustment Implementation Guide
2.0.0-ballot - STU2 Ballot United States of America flag

This page is part of the Da Vinci Risk Adjustment FHIR Implementation Guide (v2.0.0-ballot: STU2 (v2.0.0) Ballot 1) based on FHIR R4. The current version which supercedes this version is 1.0.0. For a full list of available versions, see the Directory of published versions

Da Vinci Risk Adjustment Implementation Guide Home Page

Official URL: http://hl7.org/fhir/us/davinci-ra/ImplementationGuide/hl7.fhir.us.davinci-ra Version: 2.0.0-ballot
Active as of 2023-03-28 Computable Name: RiskAdjustment

Copyright/Legal: Used by permission of HL7 International - Clinical Quality Information Work Group, all rights reserved Creative Commons License

The May 2023 Ballot includes the following high level changes to support new functionalities, introduce Digital Condition Category as DRAFT content for review, and address resolved trackers.

Where possible, new and updated content are highlighted with green text and background

Summary

The Da Vinci Fast Healthcare Interoperability Resource (FHIR) Risk Adjustment Implementation Guide (IG) describes exchanging risk adjustment coding gaps between payers and providers. Risk adjusted premium calculations are important to government managed care. To better inform providers of opportunities to address risk adjusted conditions, better enable payers to communicate risk adjustment information, and enhance government sponsors’ ability to allocate funding accurately, payers and providers need a standard protocol to share and receive clinical data related to risk adjustment and a standard methodology to communicate risk based coding, documentation and submission status of chronic conditions. The first Standard for Trial Use (STU) version of this implementation guide focused on the standard exchange format of risk adjustment coding gaps from payers to providers, it offers potential for reducing administrative burden experienced by providers by standardizing the reporting they receive from all payers.

This version of the implementation guide focuses on the communication from providers back to payers. It adds functionalities to support the workflow that allows providers and certified risk adjustment coders to review and remediate the risk adjustment coding gap reports provided by the payer. Providers and risk adjustment coders may close gaps, invalidate gaps, or discover net-new Condition Categories (CCs) during medical record review. The added functionalities allow them to provide the updated coding gap data along with supporting clinical evaluation evidence back to payers. This version also introduces digital Condition Category (dCC). It describes how to specify dCCs using Clinical Quality Language (CQL) through an example which would allow for a more automated process of generating risk adjustment coding gap reports by evaluating dCCs against clinical data.

This implementation guide is supported by the Da Vinci initiative which is a private effort to accelerate the adoption of Health Level Seven International Fast Healthcare Interoperability Resources (HL7® FHIR®) as the standard to support and integrate value-based care (VBC) data exchange across communities. Like all Da Vinci Implementation Guides, it follows the HL7 Da Vinci Guiding Principles for exchange of patient health information. As an HL7 FHIR Implementation Guide, changes to this specification are managed by the sponsoring Clinical Quality Information (CQI) Work Group and are incorporated as part of the standard balloting process.

How to read this implementation guide

This implementation guide is divided into several pages which are listed at the top of each page in the menu bar:

  • Home: The home page provides the summary, background information, scope, and actors for this implementation guide.
  • Methodology: These pages provide guidance on the resource profiles and operation defined in this implementation guide.
    • General Guidance: This page provides guidance that applies to all functionalities in this implementation guide.
    • Report Generation: This page describes how generating Risk Adjustment Coding Gap Report is accomplished.
    • Report Query: This page provides guidance on using query to return Risk Adjustment Coding Gap Report(s) and their evaluated resources.
    • Remediation: This page documents how to use Task to request gap closure, gap invalidation, or add a net-new to coding gaps reported in a Risk Adjustment Coding Gap Report and provide clinical evaluation evidence.
    • Report Annotation: This page describes how providers can add comment/annotation(s) to the Risk Adjustment Coding Gap Report to indicate that they took an action while seeing the patient
  • Digital Condition Category (dCC): This page describes how a Condition Category can be structured as a proportion measure and be specified using CQL as a digital Condition Category in a similar fashion to electronic quality measures through an example.
  • FHIR Artifacts: These pages lists FHIR artifacts specified in this implementation guide.
    • Profiles: This page lists the set of Profiles that are defined in this implementation guide to exchange risk adjustment coding gaps.
    • Extensions: This page lists the set of Extensions that are defined in this implementation guide to exchange risk adjustment coding gaps.
    • Operations: This page lists operations defined in this implementation guide.
    • Terminology: This page lists code systems and value sets defined in this implementation guide.
    • Capability statements: This page describes the expected FHIR capabilities of the risk adjustment actors of this implementation guide.
  • Examples: This page lists all the examples used in this implementation guide.
  • Glossary: This page lists glossary and acronyms for this implementation guide.
  • Downloads: This page provides links to downloadable artifacts.

Background

Health risk is a combination of two factors, loss and probability. Many players in the healthcare industry need to measure and manage health risk. For example, providers need to know which patients in their panel are facing the greatest clinical risks to prioritize their care; insurance payers need to know the expected financial risk of their covered lives so they can price their premiums appropriately.

Modeling Approaches: Risk Adjustment vs. Risk Prediction

Risk adjustment models are used to compare and normalize health risks across groups or populations. For instance, the Medicare Advantage (MA) population represents a risk pool, as does the subset of the MA population that Payer X covers. One common use of risk adjustment is to make equitable comparisons among healthcare payers that take into account the health status of their enrolled members, to provide adequate financial support for treating individuals with higher-than-average health needs, and to minimize incentives for plans and providers to selectively enroll healthier members. Risk adjustment models determine whether Payer X’s risk pool represents more or less health risk than the MA population average, so that if Payer X is running a greater risk – say, because its risk pool includes a greater portion of economically disadvantaged persons – then appropriate payments are made to help ensure that these members’ premiums are subsidized to offset the higher expected cost of claims that Payer X will incur. Risk adjustment is used for this purpose within Medicare (the CMS-HCC1 and CMS-RxHCC1 models), Medicaid (the CDPS1 and MRX1 models), the Affordable Care Act (the HSS-HCC and RXC1 models), as well as other health insurance programs.

Risk prediction models have a different intent. These are used to predict the future behavior of individuals or populations such as who is likely to be a high utilizer of healthcare services or who is likely to experience adverse health care events.

Model Hierarchies: Condition Categories(CCs) vs. HCCs; Disease Hierarchies vs. Disease Categories; Superseding

This IG has mainly focused on the Medicare Advantage risk adjustment models, but it should also work for other risk adjustment and prediction models as long as they structure their data using Condition Categories (CCs). A Condition Category (CC) is a clinically or financially related grouping of medical conditions. The number of Condition Categories (CCs) in each risk model depends on the purpose of that model, from about 80 Condition Categories (CCs) in the CMS-HCC model to about 400 Condition Categories (CCs) in the DxCG1 model. It is very common for Condition Categories (CCs) to be organized in terms of disease hierarchies and disease categories, with the former denoting the severity of a disease and the latter indicating other aspects such as which system and/or part of the anatomy is affected, how the disease affects the body, the nature of the disease process, what causes it, how it spreads, how quickly it progresses and so forth. When a disease hierarchy is applied it assigns Condition Categories (CCs) into Hierarchical Condition Categories (HCCs) with less severe HCCs superseded (dropped) if evidence of higher severity HCCs is present. Since different HCCs have impact upon total risk assessment, they should be maintained. For example, the combination of a new diagnosis of major depression to an existing diagnosis of non-insulin dependent diabetes may increase total risk by more than the sum of the individual category risk assignments.

Risk Adjustment Applications: Revenue Normalization vs. Resource Utilization

This IG focuses on risk adjustment for revenue normalization, but risk adjustment has several other applications. Quality measures such as Plan All-Cause Readmissions, Acute Hospital Utilization, Hospitalization Following Discharge from a Skilled Nursing Facility, Emergency Department Utilization and Hospitalization for Potentially Preventable Complications are all risk-adjusted. Risk adjustment is used in care management to identify future high-cost or high-utilizing individuals, direct them toward appropriate treatment options, allocate resources for that treatment, and evaluate the outcomes of those programs. Risk adjustment is also used as an analytical method by actuaries and underwriters for pricing purposes. However, the goals, processes and methods of these other risk adjustment applications are quite different from those of risk adjustment for revenue normalization and are outside the scope of this IG.

Unless otherwise specified, when the term “risk adjustment” is used in this IG it is limited to risk adjustment for revenue normalization and is exclusively concerned with the exchange of diagnostic data to resolve Condition Category (CC) or HCC gaps.

Time Periods: Clinical Evaluation vs. Data Collection; Payment Years; Sweeps

There are several important time periods to keep track of here. For example, the Medicare Advantage clinical evaluation period runs from January 1 of [PY-1] through December 31 of [PY-1] during which the patient may have encounter(s) with provider(s) to document the presence of disease(s). The date of service for the extracted diagnosis must correspond to the correct Payment Year but payers are generally permitted more than one calendar year to collect the diagnoses. The Medicare Advantage data collection period1 runs from January 1 [PY-1] to the end of January [PY+1]; during this time the payer may submit diagnoses collected during the clinical evaluation period to CMS. PY denotes the Payment Year, or the year when the payer receives it payment adjustment from Medicare. These payments begin on January 1 of [PY] based on diagnoses submitted to CMS through the first week of September of [PY-1]. This is a particularly important date known as the September Sweeps. For financial reasons, payers want to submit as many diagnoses as they can prior to September Sweeps because these are used to set the amount for the initial payment adjustments. Payers sometimes offer providers “Early Bird” incentives to document HCCs as soon in the year as they can, preferably prior to September Sweeps. For this reason, it is important for the payer to record when they receive medical evidence that closes an HCC gap so the provider can receive any “Early Bird” incentives they may have earned.

For example, during Medicare Advantage PY 2022 diagnoses are accepted from patient encounters with dates of service during the clinical evaluation period of Jan 1, 2021 to Dec 31, 2021. Payers may submit to Medicare the diagnoses they collect from these encounters as soon as Jan 1, 2021 and continuing through the end of Jan 2023. Sweeps for PY 2022 occur at the end of the first week of Sep 2021. Payers begin receiving payment adjustments from Medicare beginning in Jan 2022 based on diagnoses received through Sweeps.

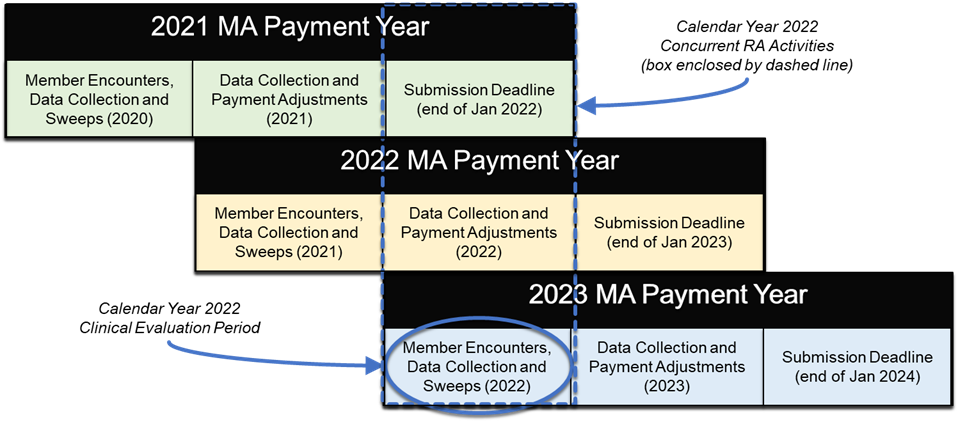

The risk adjustment activities in support of these payment cycles concurrently overlap during any given year, as shown in the Figure 1-1. Note that this figure shows the Medicare Advantage risk adjustment cadence; other programs such as Medicaid and the ACA follow a different annual risk adjustment cadence.

Figure 1-1 Medicare Advantage Risk Adjustment Cadence

Concurrent Models: Blending; Special-Purpose Models

Since the data collection period is always longer than the clinical evaluation period there will be multiple models actively collecting data at the same time. For example, during the calendar year 2022 a typical MA payer will be actively collecting data to close gaps from several models:

  • CMS-HCC V24 for the 2021 Payment Year (2020 dates of service, data submission deadline is the end of January 2022)
  • CMS-HCC V22 for the 2021 Payment Year (2020 dates of service, data submission deadline is the end of January 2022)
  • CMS-HCC V21 for the 2021 Payment Year (2020 dates of service, data submission deadline is the end of January 2022)
  • CMS-RxHCC V05 for the 2021 Payment Year (2020 dates of service, data submission deadline is the end of January 2022)
  • CMS-HCC V24 for the 2022 Payment Year (2021 dates of service)
  • CMS-HCC V22 for the 2022 Payment Year (2021 dates of service)
  • CMS-HCC V21 for the 2022 Payment Year (2021 dates of service)
  • CMS-RxHCC V05 for the 2022 Payment Year (2021 dates of service)
  • CMS-HCC V24 for the 2023 Payment Year (2022 dates of service)
  • CMS-HCC V22 for the 2023 Payment Year (2022 dates of service)
  • CMS-RxHCC V05 for the 2023 Payment Year (2022 dates of service)

To avoid confusion, the provider supplies dates for the clinical evaluation period, which is driven by dates of service. So if the provider sets the clinical evaluation period to run from Jan 1, 2022 through Dec 31, 2022, the payer would only report Condition Category (CC) gaps from these models:

  • CMS-HCC V24 for the 2023 Payment Year (2022 dates of service)
  • CMS-HCC V22 for the 2023 Payment Year (2022 dates of service)
  • CMS-RxHCC V05 for the 2023 Payment Year (2022 dates of service)

What’s going on with these three different model versions? There are three answers.

  1. Risk adjustment models are an important actuarial tool for insurance payers, who must forecast the health risk of populations several years in advance. To avoid undermining any statistical analyses that are based on these HCC models, any changes to these models are rolled out in gradual, predictable ways. New models are always phased in, usually over period of four or five years, during which the risk scores from the older model are gradually given less weight and risk scores from the new model are weighted more heavily. This model transition process is called blending. For several years leading up to 2022 the V22 and V24 models coexisted side by side. By 2022 the blending period ended with the V24 risk scores being accorded 100% of the weight.
  2. Risk scores for members diagnosed with certain medical conditions such as End Stage Renal Disease (ESRD) or who are enrolled in a special Medicare Advantage Plan for All-encompassing Care for the Elderly (PACE1) are always scored using the model which is one version previous to the current one. While the V22 and V24 models were being blended both were considered current, meaning that the next previous version was V21. When a member is diagnosed with renal disease and CMS designates them as ESRD, the member shifts from being scored under the V22/V24 models to being scored under the V21 model. By 2022 the blending period was over, the V24 model became the most current model, the V22 model came into use for ESRD and PACE, and the V21 model was phased out.
  3. Throughout this period the CMS-RxHCC V05 model was also in continuous use. The purpose of the CMS-RxHCC model is to normalize the expected cost of medications across populations, just as the CMS-HCC model normalizes the expected cost of medical treatment. Despite the name, the RxHCC model is derived from medical claims – not pharmacy claims. The RxHCC model overlaps with CMS-HCC to a considerable degree; many times the same diagnosis will close both an HCC and an RxHCC, although there are some diagnoses that only roll up to RxHCCs and not HCCs. Many risk adjustment models feature this separation between the medical and prescription drug portions of the model (Medicare CMS-HCC and CMS-RxHCC; Medicaid CPDS and MRX; ACA HHS-HCC and RXC.)

Scope

After careful review with the risk adjustment subject matter experts, it was determined that the most challenging aspect of the current risk adjustment process was the inconsistent manner in which reports on risk adjustment coding gaps were communicated between a provider (or system operating on their behalf) and a payer (or system operating on the payer’s behalf). Figure 1-2 shows a high-level example of the risk adjustment workflow in CMS Medicare Advantage program. This implementation guide focuses on specifying a standard exchange format, the Risk Adjustment Coding Gap Report, between payers and providers. This diagram does not depict preceding steps such as the payer receiving clinical or claims data from providers or other sources, nor does it attempt to define contractual relationships.

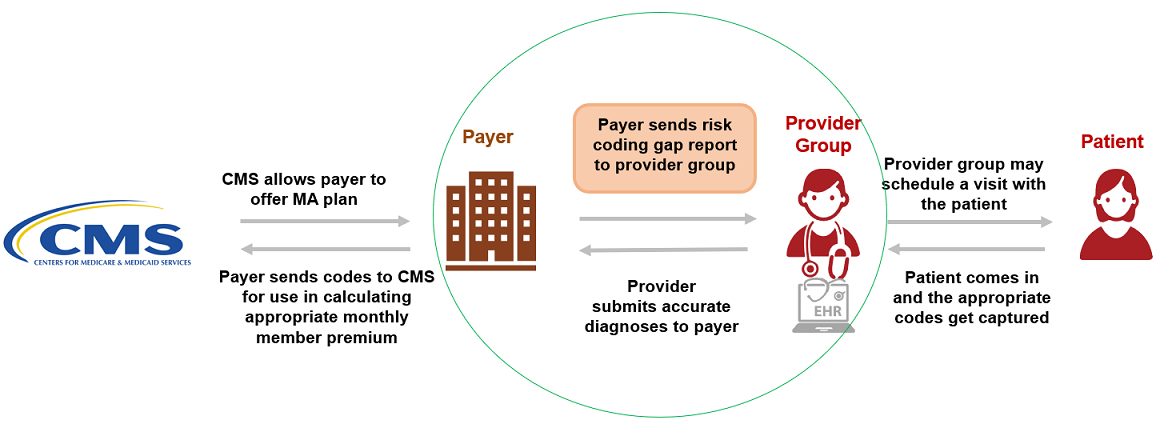

Figure 1-2 Workflow for Medicare Advantage Population

This implementation guide does not define how payers determine a coding gap and how coding gaps are produced or managed on the payer side including hierarchies. This implementation guide also does not define suspecting processes and algorithms/predictive models that are used for suspecting analytics.

Actors and Roles

Different entities can play different Roles in different scenarios. The Actors in this implementation guide are Payer, Provider, and Risk Adjustment Coder (working on behalf of the Payer, e.g., Certified Risk Adjustment Coder (CRC)). For clarity in this IG, we may use the term Payer to refer to both the Payer and Risk Adjustment Coder. Their roles as Client and Server are described below.

Client:

Server:

  • Reporting Server
    • Payer plays this role when 1) generates and stores Risk Adjustment Coding Gap Report, or 2) when adds annotation to the Risk Adjustment Coding Gap Report, if the Payer chooses to share any or all annotations submitted by Provider
  • Remediation Server
    • Payer/Risk Adjustment Coder plays this role when receives and processes the Risk Adjustment Clinical Evaluation Evidence Task
    • Provider plays this role when POST Risk Adjustment Coding Gap Report with annotation

The Methodology section of this implementation guide describes these Actors in more detail in the context of report generation, query, and remediation steps of risk adjustment lifecycle and report annotation.

Credits

This implementation guide was made possible by the thoughtful contributions of the following people and organizations:

Primary Authors

  • Brent Zenobia, Novillus
  • Linda Michaelsen, Optum
  • Rob Reynolds, Smile Digital Health
  • Yan Heras, Optimum eHealth

Contributors

  • Amy Neftzger, United Healthcare
  • Brian J Murtha, Centene
  • Bryn Rhodes, Smile Digital Health
  • Cody Danielshak, Epic
  • Josh Lamb, Optum
  • Lloyd McKenzie, Dogwood Health Consulting
  • Michael Stearns, Wolters Kluwer
  • Viet Nguyen, Stratametrics
