Health Cards Specification

Overview

Health Cards Conceptual Model

Adapted from Figure 1 of the W3C Verifiable Credentials specification

• Issuer (e.g., a lab, pharmacy, healthcare provider, EHR, public health department, or immunization information system) generates verifiable credentials
• Holder stores credentials and presents them at will
• Verifier receives credentials from holder and ensures they are properly signed

Design Goals

• Support end-to-end workflow where users receive and present relevant healthcare data
• Enable workflow with open standards
• Support strong cryptographic signatures
• Enable privacy preserving data presentations for specific use cases

Approach: Start Small – Think Big

We enable Health Cards by defining building blocks that can be used across healthcare. The core building block allows us to aggregate data into meaningful sets, signed by an issuer, and stored/presented by a consumer as needed. The broader set of use cases should eventually include:

• Managing an immunization record that can be shared with schools or employers, or for travel
• Sharing verifiable health history data with clinical research studies
• Sharing voluntary data with public health agencies
• Sharing questionnaire responses with healthcare providers

When we launched the project, our short-term definition of success included:

• Represent "Health Cards" in a "Health Wallet", focusing on COVID-19 status
• Ensure that each role (issuer, holder, app) can be implemented by any organization following open standards, provided they sign on to the relevant trust framework

User Experience and Data Flow

• User Receives a Health Card from an Issuer. The Health Card is a signed data artifact that the user can obtain through any of these methods:
  • issuer offers a Health Card on paper or PDF, including a QR code (required method)
  • issuer offers a Health Card for download as a .smart-health-card file (required method)
  • issuer hosts a Health Card for FHIR API access via a compatible Health Wallet application. This workflow includes a SMART on FHIR authorization step with an Issuer, where the user grants read access to any resources that will be present in Health Cards (e.g., Patient, Immunization, Observation, DiagnosticReport)
• User Saves a Health Card, whether on paper or digitally.
• User Presents a Health Card to a Verifier. Presentation includes explicit user opt-in and approval, and may involve displaying a QR code, sharing a file, or using an on-device SDK (e.g., for verifier-to-holder app-to-app communications)

Trust

Anyone can issue Health Cards, and every verifier can make its own decision about which issuers to trust. A "trust framework" can help verifiers to externalize these decisions and drive toward more consistent practices. The SMART Health Cards IG is designed to operate independent of any trust framework, while allowing trust frameworks to be layered on top. We anticipate such frameworks will emerge to meet different jurisdictional and use case driven requirements. In all cases, verifiers can discover public keys associated with an issuer via /.well-known/jwks.json URLs.

Privacy

Data Minimization

It is an explicit design goal to let the holder only disclose a minimum amount of information to a verifier. The information required to be disclosed is use-case dependent, and – particularly in a healthcare setting – it can be difficult for lay people to judge which data elements are necessary to be shared.

The granularity of information disclosure will be at the level of an entire credential (i.e., a user can select "which cards" to share from a Health Wallet, and each card is shared wholesale). The credentials are designed to only include the minimum information necessary for a given use case.

Granular Sharing

Data holders should have full control over the data they choose to share for a particular use-case. Since Health Cards are signed by the issuer and cannot be altered later, it is important to ensure that Health Cards are created with granular sharing in mind. Therefore, issuers SHOULD only combine distinct data elements into a Health Card when a Health Card FHIR profile requires it.

Commonly, Health Cards will be created to convey information about a specific disease. In such cases, Health Card FHIR Profiles SHOULD only include data that need to be conveyed together. (e.g., immunizations for different diseases should be kept separate. Immunizations and lab results should be kept separate. Immunizations and immunization exemption status should be kept separate.)

In other cases, Health Cards may be created to convey a broader set of clinical information, such as a patient summary document that can be shared in a clinical setting. In these cases, standard FHIR profiles such as International Patient Summary should guide the decision about which data to include.

Future Considerations

If we identify optional data elements for a given use case, we might incorporate them into credentials by including a cryptographic hash of their values instead of embedding values directly. Longer term we can provide more granular options using techniques like zero-knowledge proofs, or by allowing a trusted intermediary to summarize results in a just-in-time fashion.

Data Model for Specific Use Cases

This framework defines a general approach to representing demographic and clinical data in FHIR, outlined in Modeling Verifiable Credentials in FHIR.

The data model for the Health Card payload at .vc.credentialSubject.fhirBundle is specific to a given use case (e.g., a COVID-19 immunization card). These use case-specific details are not included as part of this framework. Instead, they are described in use case-specific FHIR Implementation Guides:

Protocol Details

Generating and resolving cryptographic keys

The following key types are used in the Health Cards Framework:

• Elliptic Curve keys using the P-256 curve

Signing Health Cards

• Issuers sign Health Card VCs (Verifiable Credentials) with a signing key (private key)
• Issuer publish the corresponding public key (public key) at /.well-known/jwks.json
• Wallets and Verifiers use the public key to verify Issuer signatures on Health Cards

Determining keys associated with an issuer

Each public key used to verify signatures is represented as a JSON Web Key (see RFC7517), with some of its properties encoded using base64url (see section 5 of RFC4648):

• SHALL have "kty": "EC", "use": "sig", and "alg": "ES256"
• SHALL have "kid" equal to the base64url-encoded SHA-256 JWK Thumbprint of the key (see RFC7638)
• SHALL have "crv": "P-256, and "x", "y" equal to the base64url-encoded values for the public Elliptic Curve point coordinates (see RFC7518)
• SHALL NOT have the Elliptic Curve private key parameter "d"
• If the issuer has an X.509 certificate for the public key, SHALL have "x5c" equal to an array of one or more base64-encoded (not base64url-encoded) DER representations of the public certificate or certificate chain (see RFC7517). The public key listed in the first certificate in the "x5c" array SHALL match the public key specified by the "crv", "x", and "y" parameters of the same JWK entry. If the issuer has more than one certificate for the same public key (e.g. participation in more than one trust community), then a separate JWK entry is used for each certificate with all JWK parameter values identical except "x5c".

Issuers SHALL publish their public keys as JSON Web Key Sets (see RFC7517), available at <<iss value from JWS>> + /.well-known/jwks.json, with Cross-Origin Resource Sharing (CORS) enabled, using TLS version 1.2 following the IETF BCP 195 recommendations or TLS version 1.3 (with any configuration).

The URL at <<iss value from JWS>> SHALL use the https scheme and SHALL NOT include a trailing /. For example, https://smarthealth.cards/examples/issuer is a valid iss value (https://smarthealth.cards/examples/issuer/ is not).

Signing keys in the .keys[] array can be identified by kid following the requirements above (i.e., by filtering on kty, use, and alg).

For example, the following is a fragment of a jwks.json file with one signing key:

{
  "keys":[
    {
      "kty": "EC",
      "kid": "_IY9W2kRRFUigDfSB9r8jHgMRrT0w4p5KN93nGThdH8",
      "use": "sig",
      "alg": "ES256",
      "crv": "P-256",
      "x": "7xbC_9ZmFwKqOHpwX6-LnlhIh5SMIuNwl0PW1yVI_sk",
      "y": "7k2fdIRNDHdf93vL76wxdXEPtj_GiMTTyecm7EUUMQo",
    }
  ]
}

Certificates

X.509 certificates can be used by issuers to indicate the issuer's participation in a PKI-based trust framework.

If the Verifier supports PKI-based trust frameworks and the Health Card issuer includes the "x5c" parameter in matching JWK entries from the .keys[] array, the Verifier establishes that the issuer is trusted as follows:

1. Verifier validates the leaf certificate's binding to the Health Card issuer by:
   • matching the <<iss value from JWS>> to the value of a uniformResourceIdentifier entry in the certificate's Subject Alternative Name extension (see RFC5280), and
   • verifying the signature in the Health Card using the public key in the certificate.
2. Verifier constructs a valid certificate path of unexpired and unrevoked certificates to one of its trusted anchors (see RFC5280).

Key Management

Issuers SHOULD generate new signing keys at least annually.

When an issuer generates a new key to sign Health Cards, the public key SHALL be added to the issuer's JWK set in its jwks.json file. Retired private keys that are no longer used to sign Health Cards SHALL be destroyed. Older public key entries that are needed to validate previously signed Health Cards SHALL remain in the JWK set for as long as the corresponding Health Cards are clinically relevant. However, if a private signing key is compromised, then the issuer SHALL immediately remove the corresponding public key from the JWK set in its jwks.json file and request revocation of all X.509 certificates bound to that public key; verifiers will from then on reject all Health Cards signed using that key.

Revocation

Individual Health Cards MAY be revoked using a revocation identifier property rid encoded in the vc claim of the JWT. This should be a short identifier, meaningless to the verifiers; the only constraint is that the identifier SHALL use the base64url alphabet (but doesn’t need to be base64url encoded, see section 5 of RFC4648) and be no longer than 24 characters. Issuers MAY use application-specific user identifiers for this purpose, but since these could be publicly listed in revocation lists, issuers SHOULD use a one-way transformation of the data combined with enough entropy to prevent reversal. It is RECOMMENDED to use the base64url encoding of the first 64 bits of the output of HMAC-SHA-256 (as specified in RFC4868) on the user identifier using a 256-bit random secret key concatenated with the <<kid>>; i.e.,

rid = base64url(hmac-sha-256(secret_key || <<kid>>, user_id)[1..64]).

The revocation HMAC secret can be generated once and reused for all the issuer keys and issued Health Cards. If an issuer chooses to change the secret, old values need to be remembered in order to re-calculate previously generated rid.

To enable per-card revocation, the issuer creates, for each of its keys, a JSON Card Revocation List (CRL) file with the following content:

{
"kid": "<<kid>>",
"method": "rid",
"ctr": "<<ctr>>",
"rids": [...]
}

where

• "<<kid>>" is the ID of the corresponding issuer key,
• "rid" identifies the revocation method specified in this framework; legacy cards can use different methods specified in external revocation profiles,
• "<<ctr>>" is a counter indicating how many times this file has been updated; initial value is 1,
• rids is an array of revoked cards' identifiers rid values. These values are represented as strings from the base64url alphabet, plus an optional timestamp suffix consisting of . followed by a numerical timestamp (e.g., .1636977600)

To revoke a Health Card issued under the key "<<kid>>", an issuer adds its revocation identifier to the rids array of the corresponding <<kid>>'s revocation file. Since an issuer might want to invalidate a series of Health Cards associated with the user up to a certain time, the rid might be followed by a separator . a timestamp (encoded as the number of seconds from 1970-01-01T00:00:00Z UTC, as specified by RFC7519). After updating the rids array (with one or more items), the <<ctr>> is incremented.

As an example, the rids array ["AQPCj4wwk6Mt", "lHKzqFUMjhs.1636977600"] marks as revoked any Health Cards with rid equal to AQPCj4wwk6Mt and Health Cards with rid equal to lHKzqFUMjhs issued before November 15, 2021 12:00:00 PM GMT.

The per-key revocation file is made available at https://"<<Issuer URL>>"/.well-known/crl/"<<kid>>".json, where

• "<<Issuer URL>>" is the issuer URL listed in the Health Card,
• "<<kid>>" is the key ID with which the Health Card was signed.

Issuers supporting this revocation method SHALL include in their published JWK set, for each key, a crlVersion field encoding the update counter "«ctr»" for the corresponding revocation file.

If the crlVersion is present in the Issuer's JWK for key <<kid>>, Verifiers SHALL

• Download the https://"<<Issuer URL>>"/.well-known/crl/"<<kid>>".json file or use a cached version if the counter value has not changed since the last retrieval,
• Reject the Health Card if the calculated rid is contained in the CRL's rids array and (if a timestamp suffix is present) the Health Card’s nbf is value is before the timestamp.

Revocation of Health Cards without a rid field (including all pre-v1.2.0 ones) can be done using external mechanisms to calculate a dynamic rid value based on the JWS’s content.

If individual revocation of SMART Health Cards is not possible, then an issuer SHOULD revoke its issuing key, and allow users to obtain new Health Cards; limiting the validity period of a key helps to mitigate the adverse effects of this situation. See the revocation FAQ for more details.

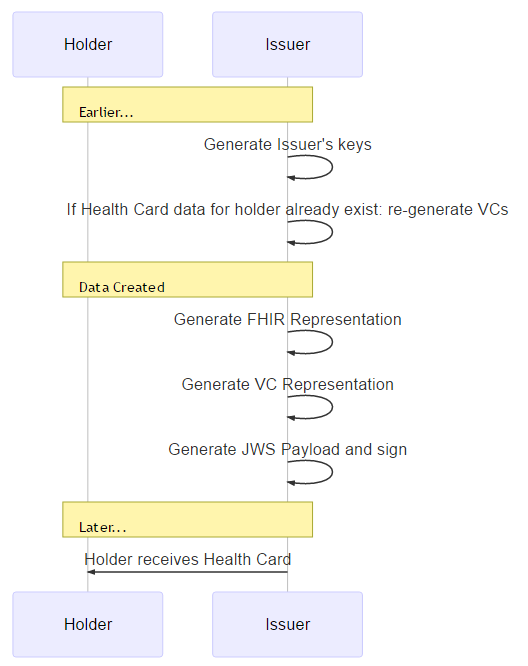

Issuer Generates Results

When the issuer is ready to generate a Health Card, the issuer creates a FHIR payload and packs it into a corresponding Health Card VC (or Health Card Set).

Health Cards are encoded as Compact Serialization JSON Web Signatures (JWS)

The VC structure (scaffold) is shown in the following example. The Health Cards framework serializes VCs using the compact JWS serialization, where the payload is a compressed set of JWT claims (see Appendix 3 of RFC7515 for an example using ECDSA P-256 SHA-256, as required by this specification). Specific encoding choices ensure compatibility with standard JWT claims, as described at https://www.w3.org/TR/vc-data-model/#jwt-encoding.

The type, and credentialSubject properties are added to the vc claim of the JWT. The type values are defined in Credential Types; the https://smarthealth.cards#health-card SHALL be present; other types SHOULD be included when they apply. Verifiers and other entities processing SMART Health Cards SHALL ignore any additional type elements they do not understand. The issuer property is represented by the registered JWT iss claim and the issuanceDate property is represented by the registered JWT nbf ("not before") claim (encoded as the number of seconds from 1970-01-01T00:00:00Z UTC, as specified by RFC7519). Hence, the overall JWS payload matches the following structure (before it is minified and compressed):

{
  "iss": "<<Issuer URL>>",
  "nbf": 1591037940,
  "vc": {
    "type": [
      "https://smarthealth.cards#health-card",
      "<<Additional Types>>",
    ],
    "credentialSubject": {
      "fhirVersion": "<<FHIR Version, e.g. '4.0.1'>>",
      "fhirBundle":{
        "resourceType": "Bundle",
        "type": "collection",
        "entry": ["<<FHIR Resource>>", "<<FHIR Resource>>", "..."]
      }
    }
  }
}

Health Cards are Compact

Issuers SHALL ensure that the following constraints apply at the time of issuance:

• JWS Header
  • header includes alg: "ES256"
  • header includes zip: "DEF"
  • header includes kid equal to the base64url-encoded (see section 5 of RFC4648) SHA-256 JWK Thumbprint of the key (see RFC7638)
• JWS Payload
  • payload is minified (i.e., all optional whitespace is stripped)
  • payload is compressed with the DEFLATE (see RFC1951) algorithm before being signed (note, this should be "raw" DEFLATE compression, omitting any zlib or gz headers)

For details about how to represent a Health Card as a QR code, see below.

User Retrieves Health Cards

In this step, the user learns that a new Health Card is available (e.g., by receiving a text message or email notification, or by an in-wallet notification for FHIR-enabled issuers.)

via File Download

To facilitate this workflow, the issuer can include a link to help the user download the credentials directly, e.g., from a login-protected page in the Issuer's patient portal. The file SHALL be served with a .smart-health-card file extension and SHALL be provided with a MIME type of application/smart-health-card (e.g., web servers SHALL include Content-Type: application/smart-health-card as an HTTP Response containing a Health Card), so the Health Wallet app can be configured to recognize this extension and/or MIME type. Contents should be a JSON object containing an array of Verifiable Credential JWS strings:

{
  "verifiableCredential": [
    "<<Verifiable Credential as JWS>>",
    "<<Verifiable Credential as JWS>>"
  ]
}

via QR (Print or Scan)

Alternatively, issuers can represent an individual JWS inside a Health Card available as a QR code (for instance, printed on a paper-based vaccination record or after-visit summary document). See details.

Finally, the Health Wallet asks the user if they want to save any/all of the supplied credentials.

via "Deep Link"

For a user to import one or more SMART Health Cards to their Health Wallet with one tap or click, issuers can display app-specific "deep links". These are available on most modern operating systems and will open in a native app if the respective app is installed on the computer or smartphone.

Apps can define their own deep link syntax. However, for consistency we recommend Health Wallets support the following format, which re-uses the JSON format defined for file download:

<<app-specific deep link base URL>>#{"verifiableCredential":["<<Verifiable Credential as JWS>>"<<','0+ more JWS>>]}

To follow this recommendation, deep link base URLs SHALL use a secure protocol (e.g., https://), and SHOULD end with /SMARTHealthCard/.

Note that the recommended format serves the JWS content in a # fragment to ensure that no data is transmitted to the server in the event that an app-specific deep link is opened in a browser context (e.g., on a device where the app has not been installed).

For a concrete example, consider an app whose deep link base is https://app.example.com/i/SMARTHealthCard/. A deep link to import two SMART Health Cards into the app would look something like this (actual JWS payload shortened for readability):

https://app.example.com/i/SMARTHealthCard/#{"verifiableCredential":["eyJhbGc.dVPBbtswDP.Xo3dhlA","eyJhbGc.xVVNc9MwEP.B3KT7OD"]}

With proper URL encoding a link will look like:

<a href="https://app.example.com/i/SMARTHealthCard/#%7B%22verifiableCredential%22%3A%5B%22eyJhbGc.dVPBbtswDP.Xo3dhlA%22%2C%22eyJhbGc.xVVNc9MwEP.B3KT7OD%22%5D%7D">
  Link Text
</a>

After OS-mediated redirection, the Health Wallet app can now parse each JWS and present the collection for import to the user.

via FHIR $health-cards-issue Operation

For a more seamless user experience when FHIR API connections are already in place, results may also be conveyed through a FHIR API $health-cards-issue operation defined here. For issuers that support SMART on FHIR access, the Health Wallet MAY request authorization with SMART on FHIR scopes (e.g., launch/patient patient/Immunization.read for an Immunization use case). This allows the Health Wallet to automatically request issuance of VCs, including requests for periodic updates.

Discovery of FHIR Support

A SMART on FHIR Server capable of issuing VCs according to this specification SHALL advertise its support by adding the health-cards capability to its /.well-known/smart-configuration JSON file. For example:

{
  "authorization_endpoint": "https://ehr.example.com/auth/authorize",
  "token_endpoint": "https://ehr.example.com/auth/token",
  "token_endpoint_auth_methods_supported": ["client_secret_basic"],
  "scopes_supported": ["launch", "launch/patient", "patient/*.*", "offline_access"],
  "response_types_supported": ["code", "code id_token", "id_token", "refresh_token"],
  "capabilities": ["health-cards", "launch-standalone", "context-standalone-patient", "client-confidential-symmetric"]
}

Presenting Health Cards to a Verifier

In this step, the verifier asks the user to share a Health Card. A Health Card containing the result can be conveyed by presenting a QR code; by uploading a file; or by leveraging wallet-specific APIs.

When a wallet-specific API is used to manage this sharing workflow, the API SHOULD ensure that the requester can specify filters for:

1. SMART Health Card resource types, to restrict the request based on FHIR Resource Types such as "Immunization" or "Observation". See FHIR Resource Types. Type-based filters evalute Health Cards based on the FHIR resource types within the Health Card payload at .vc.credentialSubject.fhirBundle.entry[].resource.

2. SMART Health Card value sets, to further restrict the request by FHIR content such as "any standardized vaccine code for mpox". See Health Card ValueSets. Valueset-based filters apply to the FHIR Resources within the Health Card payload at .vc.credentialSubject.fhirBundle.entry[].resource. For Immunizations, the Immunization.vaccineCode is evaluated. For Observations, the Observation.code is evaluated.

This same filtering approach is used by the $health-cards-issue operation, via the credentialType and credentialValueSet parameters. Over time, we will endeavor to provide more standardized presentation workflows for on-device and web-based exchange.

Health Cards as QR Codes

Each JWS string that appears in the .verifiableCredential[] of a .smart-health-card file can be represented as a QR code, if the payload is small enough. We aim to ensure that printed (or electronically displayed) codes are usable at physical dimensions of 40mmx40mm. This constraint allows us to use QR codes up to Version 22, at 105x105 modules. When representing a JWS as a QR code, implementers SHALL follow the rules for Encoding QRs.

Ensuring Health Cards can be presented as QR codes:

• Allows basic storage and sharing of Health Cards for users without a smartphone
• Allows smartphone-enabled users to print a usable backup
• Allows full Health Card contents to be shared with a verifier

The following limitations apply when presenting Health Card as QR codes, rather than engaging in device-based workflows:

• Does not capture a digital record of a request for presentation
  • Verifier cannot include requirements in-band
  • Verifier cannot include purposes of use in-band
• Does not capture a digital record of the presentation

Encoding QRs

When printing or displaying a Health Card using QR codes, let "N" be the total number of chunks required, and let "C" be a variable indicating the index of the current chunk. Each chunk of the JWS string value SHALL be represented as a QR with two data segments:

1. A segment encoded with bytes mode consisting of
   • the fixed string shc:/ (registered as an IANA scheme)
DEPRECATED
• plus (only if more than one chunk is required; note this feature is deprecated):
  • decimal representation of “C” (e.g., 1 for the first chunk, 2 for the second chunk, and so on)
  • plus the fixed string /
  • plus decimal representation of “N” (e.g., 2 if there are two chunks in total, 3 if there three chunks in total, and so on)
  • plus the fixed string /
2. A segment encoded with numeric mode consisting of the characters 0-9. Each character “c” of the JWS is converted into a sequence of two digits as by taking Ord(c)-45 and treating the result as a two-digit base ten number. For example, 'X' is encoded as 43, since Ord('X') is 88, and 88-45 is 43. (The constant “45” appears here because it is the ordinal value of -, the lowest-valued character that can appear in a compact JWS. Subtracting 45 from the ordinal values of valid JWS characters produces a range between 00 and 99, ensuring that each character of the JWS can be represented in exactly two base-10 numeric digits.)

(The reason for representing Health Cards using Numeric Mode QRs instead of Binary Mode (Latin-1) QRs is information density: with Numeric Mode, 20% more data can fit in a given QR, vs Binary Mode. This is because the JWS character set conveys only log_2(65) bits per character (~6 bits); binary encoding requires log_2(256) bits per character (8 bits), which means ~2 wasted bits per character.)

For example:

• a single chunk might produce a QR code like shc:/56762909524320603460292437404460 <snipped for brevity>

Expiration of Health Cards

SMART Health Cards contain factual information that is assured to be correct at the point of issuance and does not change with the passage of time. Therefore, Health Cards generally do not expire and an expiration date is not used. There are, however, situations where the ability to set an expiration date is beneficial.

One use case for issuing SMART Health Cards with an expiration date is a government entity issuing a vaccination card to foreign visitors for their use while in the destination country. This visitor's vaccination card is issued based on original documents presented by the visitor. Even with robust verification protocols, the government entity may not want to vouch for the validity of the visitor pass for an unlimited period of time. Importantly, the original document may be invalidated at some point in the future, e.g. by its signing keys being revoked. It may be impractical for the government entity issuing the visitor pass to track and reactively revoke the visitor pass. This risk can be mitigated by setting an expiration date on the visitor pass at the time of issuance. The expiration date could, for example, correspond to the visitor's allowed duration of stay in the foreign country.

To address use cases such as the preceding one, an optional SMART Health Card expiration date can be represented by the registered JWT exp claim (encoded as the number of seconds from 1970-01-01T00:00:00Z UTC, as specified by RFC7519). Verifiers SHALL check the expiration, if present, and reject SMART Health Cards with an exp value that is before the current verification date-time.

Examples

See the examples page for examples of SMART Health Cards and components.

Potential Extension: Standardized presentation workflows

The spec is currently focused on representing Health Cards in a standardized data payload. This allows many simple patterns for sharing, but future work can introduce standardized presentation exchange flows (e.g., OpenID Self-Issued Identity Provider, a.k.a. SIOP)

Requests for Comment (RFCs)

This RFC page in the SMART Health Cards GitHub contains RFCs related to SMART Health Cards.

References

• Fast Health Interoperability Resources (FHIR): https://hl7.org/fhir/
• DEFLATE Compression: https://tools.ietf.org/html/rfc1951
• JSON Web Token (JWT): https://tools.ietf.org/html/rfc7519
• JSON Web Key (JWK): https://tools.ietf.org/html/rfc7517
• JSON Web Key (JWK) Thumbprint: https://tools.ietf.org/html/rfc7638
• HMAC-SHA-256: https://tools.ietf.org/html/rfc4868
