Drug Specification

Pharmaceutical Quality (Industry)
1.0.0 - STU1 International flag

This page is part of the Pharmaceutical Quality (Industry) (v1.0.0: STU1) based on FHIR (HL7® FHIR® Standard) v5.0.0. This is the current published version. For a full list of available versions, see the Directory of published versions

Details about drug substance or drug product release and stability specification (tests, acceptance criteria).

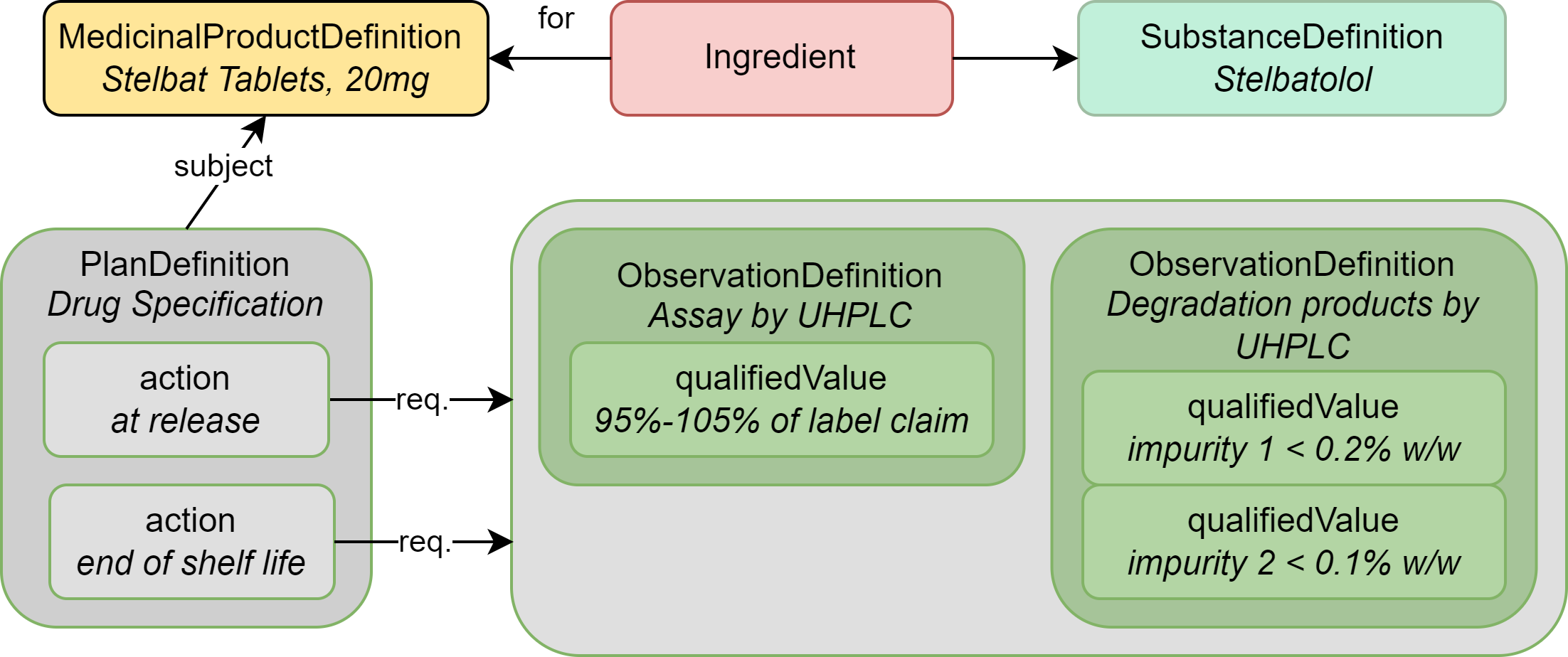

MedicinalProductDefinition	The drug product (Stelbat tablets, 20mg)
Ingredient	The active ingredient (stelbatalol) or the ingredients that make up the drug product
SubstanceDefinition	Chemical or biological details about substance(s) associated with the ingredient
PlanDefinition	Describes the specification set of tests
ObservationDefinition	Each individual test and acceptance criteria; also used to group closely related tests
Organization	(not illustrated above): The company/site that performed the testing or manufacturing

CTD section synthetic source data samples (PDF):

XML and JSON examples of synthetic quality data:

HTML presentation example of synthetic quality data:

Product Specification - Note that HTML examples represent ways to create human-readable output using structured quality data (see section 1.2 Scope).

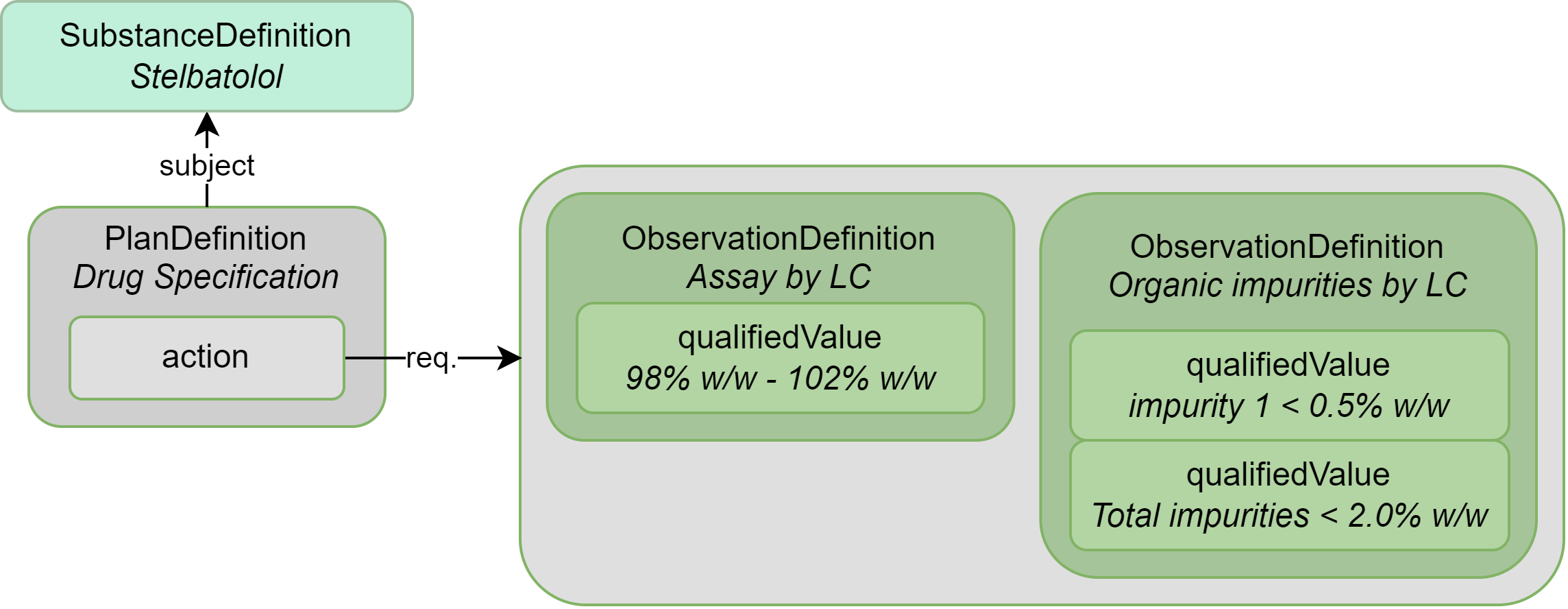

SubstanceDefinition	The substance which this is a specification for
PlanDefinition	Describes the specification set of tests
ObservationDefinition	Each individual test and acceptance criteria; also used to group closely related tests

CTD section synthetic source data samples (PDF):

XML and JSON examples of synthetic quality data:

HTML presentation example of synthetic quality data:

Substance Specification - Note that HTML examples represent ways to create human-readable output using structured quality data (see section 1.2 Scope).
