Composition

Pharmaceutical Quality (Industry)
1.0.0 - STU1 International flag

This page is part of the Pharmaceutical Quality (Industry) (v1.0.0: STU1) based on FHIR (HL7® FHIR® Standard) v5.0.0. This is the current published version. For a full list of available versions, see the Directory of published versions

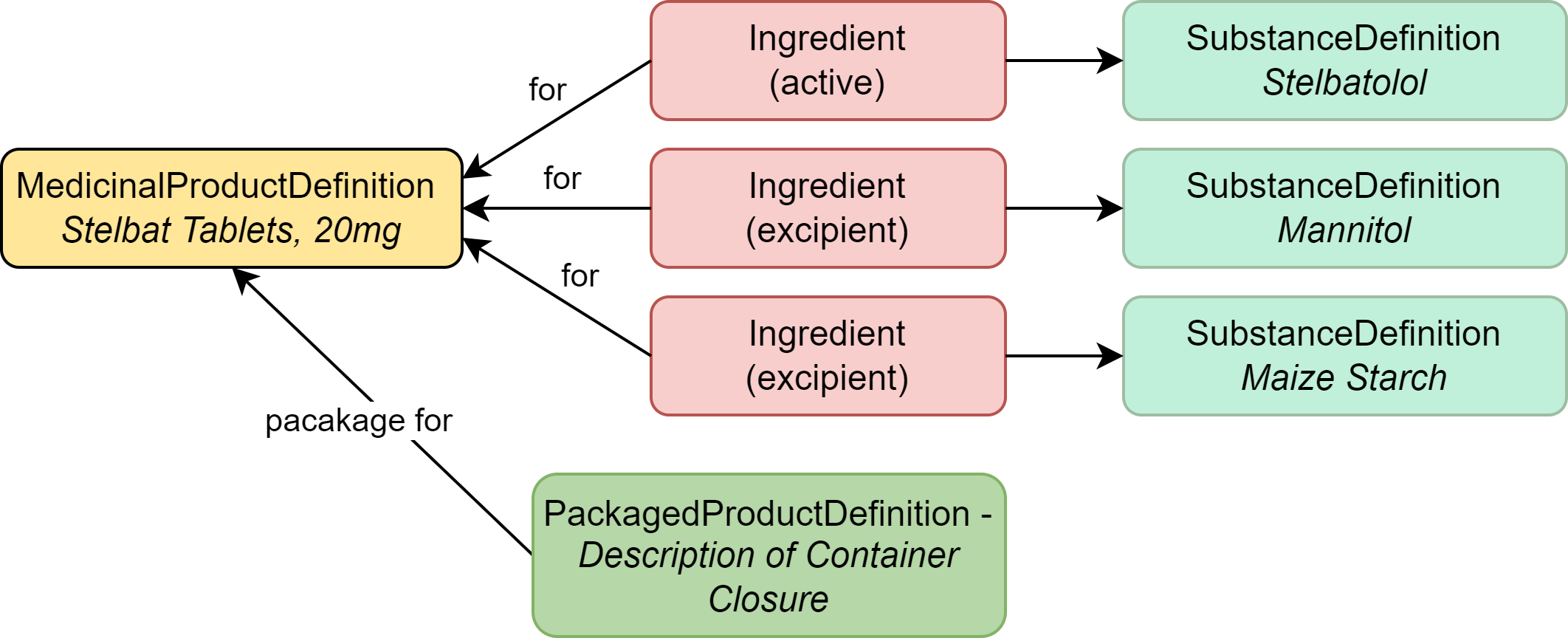

Provide details about drug substance and drug product components, materials, and Quality reference standards.

MedicinalProductDefinition	The drug product (Stelbat tablets, 20mg)
Ingredient	The active ingredient (stelbatalol) and other ingredients that make up the product
SubstanceDefinition	The documented impurities
PackagedProductDefinition	Information about the packaging for the product

CTD section synthetic source data samples (PDF):

XML and JSON examples of synthetic quality data:

HTML presentation example of synthetic quality data:

Product Composition - Note that HTML examples represent ways to create human-readable output using structured quality data (see section 1.2 Scope).

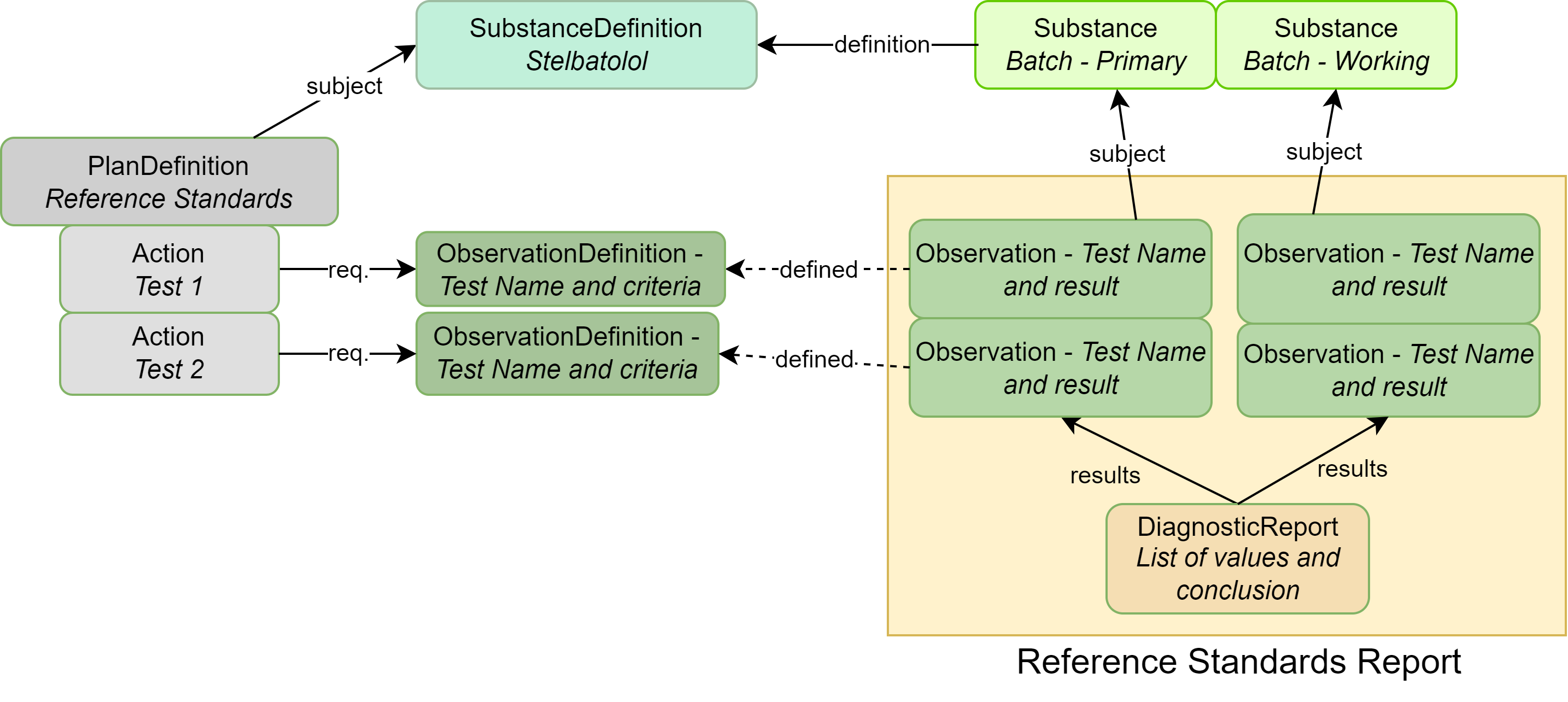

SubstanceDefinition	The substance for which reference standards are being established
Substance	Identifying information about an actual batch of substance (an instance)
PlanDefinition	Describes the reference standards set of tests
ObservationDefinition	Each individual test and acceptance criteria
Observation	The results of a specific test mentioned in the ObservationDefinition
DiagnosticReport	Contains all results as a group and captures conclusions
Organization	(not illustrated above): The company/site that performed the testing or manufacturing

CTD section synthetic source data samples (PDF):

3.2.S.5 Reference Standards or Materials (3.2.P.6 Reference Standards or Materials is similar.)

XML and JSON examples of synthetic quality data:

HTML presentation example of synthetic quality data:

Substance Reference Standards or Materials - Note that HTML examples represent ways to create human-readable output using structured quality data (see section 1.2 Scope).
