Subscribing and unsubscribing

Subscribing and unsubscribing is how applications establish their connection and determine which events they will be notified of. Hubs SHALL support WebSockets and MAY support webhooks. If the Hub does not support webhooks then they should deny any subscription requests with webhook as the channel type.

Subscribing consists of different exchanges:

These exchanges can be implemented in two ways depending on the channel type:

• For webhook subscriptions, the Hub confirms the subscription was actually requested by the subscriber by contacting the hub.callback URL.
• For websocket subscriptions, the Hub returns a wss URL and subscriber establishes WebSocket connection.

A Hub SHALL support WebSockets and MAY support webhooks subscriptions. A subscriber specifies the preferred hub.channel.type of either webhook or websocket during creation of its subscription. Websockets are particularly useful if a subscriber is unable to host an accessible callback URL.

Implementer feedback is solicited around the optionality and possible deprecation of webhooks.

Subscription Request

To create a subscription, the subscribing app SHALL perform an HTTP POST to the Hub’s base URL (as specified in hub.url) with the parameters in the table below.

This request SHALL have a Content-Type header of application/x-www-form-urlencoded and SHALL use the following parameters in its body, formatted accordingly:

If OAuth 2.0 authentication is used, this POST request SHALL contain the Bearer access token in the HTTP Authorization header.

Hubs SHALL allow subscribers to re-request subscriptions that are already activated. Each subsequent and verified request to a Hub to subscribe or unsubscribe SHALL override the previous subscription state for a specific hub.topic, hub.callback / hub.channel.endpoint url combination. For example, a subscriber MAY modify its subscription by sending a subscription request (hub.mode=subscribe) with a different hub.events value with the same topic and callback/endpoint url, in which case the Hub SHALL replace the subscription’s previous hub.events with the newly provided list of events.

For webhook subscriptions, the callback URL MAY contain arbitrary query string parameters (e.g., ?foo=bar&red=fish). Hubs SHALL preserve the query string during subscription verification by appending new, Hub-defined, parameters to the end of the list using the & (ampersand) character to join. When sending event notifications, the Hub SHALL make a POST request to the callback URL including any query string parameters in the URL portion of the request, not as POST body parameters.

The client that creates the subscription MAY NOT be the same system as the server hosting the callback URL or connecting to the WSS URL (e.g., a federated authorization model could exist between these two systems). However, in FHIRcast, the Hub assumes that the same authorization and access rights apply to both the subscribing client and the system receiving notifications.

websocket Initial Subscription Request Example

In this example, the app creates an initial subscription and asks to be notified of the patient-open and patient-close events.

POST https://hub.example.com
Host: hub.example.com
Authorization: Bearer i8hweunweunweofiwweoijewiwe
Content-Type: application/x-www-form-urlencoded

hub.channel.type=websocket&hub.mode=subscribe&hub.topic=fdb2f928-5546-4f52-87a0-0648e9ded065&hub.events=patient-open,patient-close

webhook Subscription Request Example

In this example, the app asks to be notified of the patient-open and patient-close events.

POST https://hub.example.com
Host: hub.example.com
Authorization: Bearer i8hweunweunweofiwweoijewiwe
Content-Type: application/x-www-form-urlencoded

hub.channel.type=webhook&hub.callback=https%3A%2F%2Fapp.example.com%2Fsession%2Fcallback%2Fv7tfwuk17a&hub.mode=subscribe&hub.topic=fdb2f928-5546-4f52-87a0-0648e9ded065&hub.secret=shhh-this-is-a-secret&hub.events=patient-open,patient-close

Subscription Response

Upon receiving subscription or unsubscription requests, the Hub SHALL respond to a subscription request with an HTTP 202 “Accepted” response. This indicates that the request was received and will now be verified by the Hub. When using WebSockets, the HTTP body of the response SHALL consist of a JSON object containing an element name of hub.channel.endpoint and a value of the WSS URL. The WebSocket WSS URL SHALL be cryptographically random, unique, and unguessable. If using webhooks, the Hub SHOULD perform verification of intent as soon as possible.

If a Hub refuses the request or finds any errors in the subscription request, an appropriate HTTP error response code (4xx or 5xx) SHALL be returned. In the event of an error, the Hub SHOULD return a description of the error in the response body as plain text, to be used by the client developer to understand the error. This is not meant to be shown to the end user. Hubs MAY decide to reject some subscription requests based on their own policies.

websocket Subscription Response Example

HTTP/1.1 202 Accepted

{
 "hub.channel.endpoint": wss://hub.example.com/ee30d3b9-1558-464f-a299-cbad6f8135de
}

webhook Subscription Response Example

HTTP/1.1 202 Accepted

Subscription Confirmation

If a subscribe or unsubscribe request is not denied, the Hub SHALL confirm the subscription. The subscription confirmation step informs the subscriber of the details of Hub’s recently created subscription. For webhook subscriptions, the confirmation also verifies the intent of the subscriber and ensures that the subscriber actually controls the callback URL.

webhook Intent Verification Request

In order to prevent an attacker from creating unwanted subscriptions on behalf of a subscriber, a Hub must ensure that a webhook subscriber did indeed send the subscription request. The Hub SHALL verify a subscription request by sending an HTTPS GET request to the subscriber’s callback URL as given in the subscription request. This request SHALL have the following query string arguments appended.

webhook Intent Verification Request Example

GET https://app.example.com/session/callback/v7tfwuk17a?hub.mode=subscribe&hub.topic=fdb2f928-5546-4f52-87a0-0648e9ded065&hub.events=patient-open,patient-close&hub.challenge=meu3we944ix80ox&hub.lease_seconds=7200 HTTP 1.1
Host: subscriber

webhook Intent Verification Response

If the hub.topic of the Intent Verification Request corresponds to a pending subscribe or unsubscribe request that the subscriber wishes to carry out it SHALL respond with an HTTP success (2xx) code, a header of Content-Type: text/html, and a response body equal to the hub.challenge parameter. If the subscriber does not agree with the action, the subscriber SHALL respond with a 404 “Not Found” response.

The Hub SHALL consider other server response codes (3xx, 4xx, 5xx) to mean that the verification request has failed. If the subscriber returns an HTTP success (2xx) but the content body does not match the hub.challenge parameter, the Hub SHALL consider verification to have failed.

The below flow diagram and example illustrate the successful subscription sequence and message details.

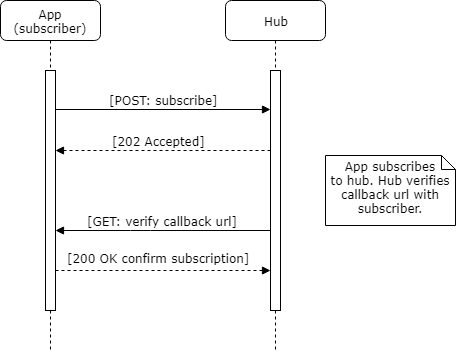

webhook Successful Subscription Sequence

webhook Intent Verification Response Example

HTTP/1.1 200 OK
Content-Type: text/html

meu3we944ix80ox

NOTE The spec uses GET vs POST to differentiate between the confirmation/denial of the subscription request and delivering the content. While this is not considered “best practice” from a web architecture perspective, it does make implementation of the callback URL simpler. Since the POST body of the content distribution request may be any arbitrary content type and only includes the actual content of the document, using the GET vs POST distinction to switch between handling these two modes makes implementations simpler.

websocket Subscription Confirmation

To confirm a subscription request, upon the subscriber establishing a WebSocket connection to the hub.channel.endpoint WSS URL, the Hub SHALL send a confirmation. This confirmation includes the following elements:

websocket Subscription Confirmation Example

{
  "hub.mode": "subscribe",
  "hub.topic": "fdb2f928-5546-4f52-87a0-0648e9ded065",
  "hub.events": "patient-open,patient-close",
  "hub.lease_seconds": 7200
}

websocket Successful Subscription Sequence

Current context notification upon successful subscription

NOTE Implementer feedback on this optional feature is required.

Upon the successful creation of a new subscription, the subscribing application will receive notifications for subsequent workflow steps, according to the hub.events specified in the subscription. Any previously established context is unknown to the newly subscribed application. To improve user experience, Hubs SHOULD follow a successful subscription with an event notification informing the newly subscribed application of the most recent *-open event for which no *-close event has occurred, according to the app’s subscription. Hubs that implement this feature, SHALL NOT send an app events to which it is not subscribed.

Although these event notifications are triggered by a successful subscription, they are indistinguishable from a normal, just-occurred workflow event triggered notification, as specified in Event Notification. Note that the timestamp in the event notification is the time at which the event occurred and not at which the notification is generated.

Subscription Denial

If (and when) a subscription is denied, the Hub SHALL inform the subscriber. This can occur when a subscription is requested for a variety of reasons, or it can occur after a subscription had already been accepted because the Hub no longer supports that subscription (e.g. it has expired). The communication mechanism for a subscription denial varies per hub.channel.type, but the information communicated from the Hub to the subscriber does not.

The below webhook flow diagram and WebSocket flow diagram and examples illustrate the subscription denial sequence and message details.

webhook Subscription Denial

To deny a webhook subscription, the Hub sends an HTTP GET request to the subscriber’s callback URL as given in the subscription request. This request appends the fields as query string arguments. The subscriber SHALL respond with an HTTP success (2xx) code.

webhook Subscription Denial Sequence

webhook Subscription Denial Example

GET https://app.example.com/session/callback/v7tfwuk17a?hub.mode=denied&hub.topic=fdb2f928-5546-4f52-87a0-0648e9ded065hub.events=patient-open,patient-close&hub.reason=session+unexpectedly+stopped HTTP 1.1
Host: subscriber

websocket Subscription Denial

To deny a websocket subscription, the Hub sends a JSON object to the subscriber through the established WebSocket connection.

websocketSubscription Denial Sequence

websocket Subscription Denial Example

{
   "hub.mode": "denied",
   "hub.topic": "fba7b1e2-53e9-40aa-883a-2af57ab4e2c",
   "hub.events": "patient-open,patient-close",
   "hub.reason": "session unexpectedly stopped"
}

Unsubscribe

Once a subscribing app no longer wants to receive event notifications, it SHALL unsubscribe from the session. An unsubscribe cannot alter an existing subscription, only cancel it. Note that the unsubscribe request is performed over HTTP(s), even for subscriptions using WebSockets. websocket unsubscribes will destroy the websocket which cannot be reused. A subsequent subscription SHALL be done over a newly created and communicated WebSocket endpoint.

webhook Unsubscribe Request Example

POST https://hub.example.com
Host: hub
Authorization: Bearer i8hweunweunweofiwweoijewiwe
Content-Type: application/x-www-form-urlencoded

hub.channel.type=webhook&hub.callback=https%3A%2F%2Fapp.example.com%2Fsession%2Fcallback%2Fv7tfwuk17a&hub.mode=unsubscribe&hub.topic=fdb2f928-5546-4f52-87a0-0648e9ded065&hub.secret=shhh-this-is-a-secret&hub.challenge=meu3we944ix80ox

websocket Unsubscribe Request Example

POST https://hub.example.com
Host: hub
Authorization: Bearer i8hweunweunweofiwweoijewiwe
Content-Type: application/x-www-form-urlencoded

hub.channel.type=websocket&hub.channel.endpoint=wss%3A%2F%2Fhub.example.com%2Fee30d3b9-1558-464f-a299-cbad6f8135de%0A&hub.mode=unsubscribe&hub.topic=fdb2f928-5546-4f52-87a0-0648e9ded065

webhook and websocket Unsubscription Sequence
