SMART Backend Services Authorization

Profile Audience and Scope

This profile is intended to be used by developers of backend services (clients) that autonomously (or semi-autonomously) need to access resources from FHIR servers that have pre-authorized defined scopes of access. This specification handles use cases complementary to the SMART App Launch protocol. Specifically, this profile describes the registration-time metadata required for a client to be pre-authorized, and the runtime process by which the client acquires an access token that can be used to retrieve FHIR resources. This specification is not restricted to use for retrieving bulk data; it may be used to connect to any FHIR API endpoint, including both synchronous and asynchronous access.

Use this profile when the following conditions apply:

• The target FHIR server can register the client and pre-authorize access to a defined set of FHIR resources.
• The client may run autonomously, or with user interaction that does not include access authorization.
• The client is able to protect a private key.
• No compelling need exists for a user to authorize the access at runtime.

Note See Also: The FHIR specification includes a set of security considerations including security, privacy, and access control. These considerations apply to diverse use cases and provide general guidance for choosing among security specifications for particular use cases.

Examples

• An analytics platform or data warehouse that periodically performs a bulk data import from an electronic health record system for analysis of a population of patients.

• A lab monitoring service that determines which patients are currently admitted to the hospital, reviews incoming laboratory results, and generates clinical alerts when specific trigger conditions are met. Note that in this example, the monitoring service may be a backend client to multiple servers.

• A data integration service that periodically queries the EHR for newly registered patients and synchronizes these with an external database

• A utilization tracking system that queries an EHR every minute for bed and room usage and displays statistics on a wall monitor.

• Public health surveillance studies that do not require real-time exchange of data.

Underlying Standards

• HL7 FHIR RESTful API
• RFC5246, The Transport Layer Security Protocol, V1.2
• RFC6749, The OAuth 2.0 Authorization Framework
• RFC7515, JSON Web Signature
• RFC7517, JSON Web Key
• RFC7518, JSON Web Algorithms
• RFC7519, JSON Web Token (JWT)
• RFC7521, Assertion Framework for OAuth 2.0 Client Authentication and Authorization Grants
• RFC7523, JSON Web Token (JWT) Profile for OAuth 2.0 Client Authentication and Authorization Grants
• RFC7591, OAuth 2.0 Dynamic Client Registration Protocol

Conformance Language

This specification uses the conformance verbs SHALL, SHOULD, and MAY as defined in RFC2119. Unlike RFC 2119, however, this specification allows that different applications may not be able to interoperate because of how they use optional features. In particular:

1. SHALL: an absolute requirement for all implementations
2. SHALL NOT: an absolute prohibition against inclusion for all implementations
3. SHOULD/SHOULD NOT: A best practice or recommendation to be considered by implementers within the context of their particular implementation; there may be valid reasons to ignore an item, but the full implications must be understood and carefully weighed before choosing a different course
4. MAY: This is truly optional language for an implementation; can be included or omitted as the implementer decides with no implications

Advertising Server Conformance with SMART Backend Services

A server MAY advertise its conformance with SMART Backend Services, by hosting a Well-Known Uniform Resource Identifiers (URIs) (RFC5785) JSON document as described at SMART App Launch Authorization Discovery. If advertising support, a server’s /.well-known/smart-configuration endpoint SHOULD include token_endpoint, scopes_supported, token_endpoint_auth_methods_supported (with values that include private_key_jwt), and token_endpoint_auth_signing_alg_values_supported (with values that include at least one of RS384, ES384) attributes for backend services. The response is a JSON document using the application/json mime type.

Example Response

HTTP/1.1 200 OK
Content-Type: application/json

{
  "token_endpoint": "https://ehr.example.com/auth/token",
  "token_endpoint_auth_methods_supported": ["private_key_jwt"],
  "token_endpoint_auth_signing_alg_values_supported": ["RS384", "ES384"],
  "scopes_supported": ["system/*.read"],
  "registration_endpoint": "https://ehr.example.com/auth/register"
}

Registering a SMART Backend Service (communicating public keys)

Before a SMART client can run against a FHIR server, the client SHALL generate or obtain an asymmetric key pair and SHALL register its public key set with that FHIR server’s authorization service. SMART does not require a standards-based registration process, but we encourage FHIR service implementers to consider using the OAuth 2.0 Dynamic Client Registration Protocol.

No matter how a client registers with a FHIR authorization service, the client SHALL register the public key the client will use to authenticate itself to the SMART FHIR authorization server. The public key SHALL be conveyed to the FHIR authorization server in a JSON Web Key (JWK) structure presented within a JWK Set, as defined in JSON Web Key Set (JWKS). The client SHALL protect the associated private key from unauthorized disclosure and corruption.

For consistency in implementation, servers SHALL support registration of client JWKs using both of the following techniques (clients SHALL choose one of these methods at registration time):

1. URL to JWK Set (strongly preferred). This URL communicates the TLS-protected endpoint where the client’s public JWK Set can be found. This endpoint SHALL be accessible via TLS without authentication or authorization. Advantages of this approach are that it allows a client to rotate its own keys by updating the hosted content at the JWK Set URL, assures that the public key used by the FHIR server is current, and avoids the need for the FHIR server to maintain and protect the JWK Set.

2. JWK Set directly (strongly discouraged). If a client cannot host the JWK Set at a TLS-protected URL, it MAY supply the JWK Set directly to the FHIR server at registration time. In this case, the FHIR server SHALL protect the JWK Set from corruption, and SHOULD remind the client to send an update whenever the key set changes. Conveying the JWK Set directly carries the limitation that it does not enable the client to rotate its keys in-band. Incuding both the current and successor keys within the JWK Set helps counter this limitation. However, this approach places increased responsibility on the FHIR server for protecting the integrity of the key(s) over time, and denies the FHIR server the opportunity to validate the currency and integrity of the key at the time it is used.

The client SHALL be capable of generating a JSON Web Signature in accordance with RFC7515. The client SHALL support both RS384 and ES384 for the JSON Web Algorithm (JWA) header parameter as defined in RFC7518. The FHIR authorization server SHALL be capable of validating signatures with at least one of RS384 or ES384. Over time, best practices for asymmetric signatures are likely to evolve. While this specification mandates a baseline of support clients and servers MAY support and use additional algorithms for signature validation. As a reference, the signature algorithm discovery protocol token_endpoint_auth_signing_alg_values_supported property is defined in OpenID Connect as part of the OAuth2 server metadata.

No matter how a JWK Set is communicated to the FHIR server, each JWK SHALL represent an asymmetric key by including kty and kid properties, with content conveyed using “bare key” properties (i.e., direct base64 encoding of key material as integer values). This means that:

• For RSA public keys, each JWK SHALL include n and e values (modulus and exponent)
• For ECDSA public keys, each JWK SHALL include crv, x, and y values (curve, x-coordinate, and y-coordinate, for EC keys)

Upon registration, the client SHALL be assigned a client_id, which the client SHALL use when requesting an access token.

Obtaining an Access Token

By the time a client has been registered with the FHIR server, the key elements of organizational trust will have been established. That is, the client will be considered “pre-authorized” to access FHIR resources. Then, at runtime, the client will need to obtain an access token in order to retrieve FHIR resources as pre-authorized. Such access tokens are issued by the FHIR authorization server, in accordance with the OAuth 2.0 Authorization Framework, RFC6749.

Because the authorization scope is limited to protected resources previously arranged with the authorization server, the client credentials grant flow, as defined in Section 4.4 of RFC6749, may be used to request authorization. Use of the client credentials grant type requires that the client SHALL be a “confidential” client capable of protecting its authentication credential.

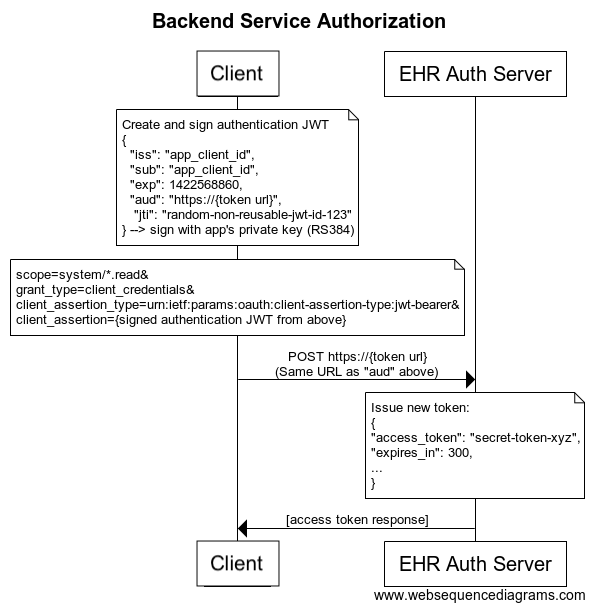

This specification describes requirements for requesting an access token through the use of an OAuth 2.0 client credentials flow, with a JWT assertion as the client’s authentication mechanism. The exchange, as depicted below, allows the client to authenticate itself to the FHIR server and to request a short-lived access token in a single exchange.

To begin the exchange, the client SHALL use the Transport Layer Security (TLS) Protocol Version 1.2 (RFC5246) or a more recent version of TLS to authenticate the identity of the FHIR authorization server and to establish an encrypted, integrity-protected link for securing all exchanges between the client and the authorization server’s token endpoint. All exchanges described herein between the client and the FHIR server SHALL be secured using TLS V1.2 or a more recent version of TLS .

Protocol details

Before a client can request an access token, it SHALL generate a one-time-use JSON Web Token (JWT) that will be used to authenticate the client to the FHIR authorization server. The authentication JWT SHALL include the following claims, and SHALL be signed with the client’s private key (which SHOULD be an RS384 or ES384 signature). For a practical reference on JWT, as well as debugging tools and client libraries, see https://jwt.io.

After generating an authentication JWT, the client requests a new access token via HTTP POST to the FHIR authorization server’s token endpoint URL, using content-type application/x-www-form-urlencoded with the following parameters:

Scopes

As the client authorization addressed by this specification involves no user or launch context, the existing SMART on FHIR scopes are not appropriate. Instead, clients SHALL use “system” scopes that parallel SMART “user” scopes. System scopes have the format system/(:resourceType|*).(read|write|*)– which conveys the same access scope as the matching user format user/(:resourceType|*).(read|write|*). However, system scopes are associated with permissions assigned to an authorized software client rather than to a human end-user.

Enforcing Authorization

There are several cases where a client might ask for data that the server cannot or will not return:

• Client explicitly asks for data that it is not authorized to see (e.g. in the case of an Export Operation request, a client asks for Observation resources (_type=Observation) but has scopes that only permit system/Patient.read). In this case a server SHOULD respond with a failure to the initial request.
• Client explicitly asks for data that the server does not support (e.g. in the case of an Export Operation request, a client asks for Practitioner resources (_type=Practitioner) but the server does not support exporting Practitioner data). In this case a server SHOULD respond with a failure to the initial request.
• Client explicitly asks for data that the server supports and that appears consistent with its access scopes – but some additional out-of-band rules/policies/restrictions prevents the client from being authorized to see these data. In this case, the server MAY withhold certain results from the response, and MAY indicate to the client that results were withheld by including OperationOutcome information in the “error” array for the response as a partial success.

Authorization Server Obligations

Signature Verification

The EHR’s authorization server SHALL validate the JWT according to the processing requirements defined in Section 3 of RFC7523 including validation of the signature on the JWT.

In addition, the authentication server SHALL:

• check that the jti value has not been previously encountered for the given iss within the maximum allowed authentication JWT lifetime (e.g., 5 minutes). This check prevents replay attacks.
• ensure that the client_id provided is known and matches the JWT’s iss claim

To resolve a key to verify signatures, a server SHALL follow this algorithm:

1. If the jku header is present, verify that the jku is whitelisted (i.e., that it matches the value supplied at registration time for the specified client_id).
   1. If the jku header is not whitelisted, the signature verification fails.
   2. If the jku header is whitelisted, create a set of potential keys by dereferencing the jku URL. Proceed to step 3.
2. If jku is absent, create a set of potential key sources consisting of: all keys found by dereferencing the registration-time JWK Set URL (if any) + any keys supplied in the registration-time JWK Set (if any). Proceed to step 3.
3. Filter the potential keys to retain only those where the kid matches the value supplied in the client's JWK header, and the kty is consistent with the signature algorithm used for the JWT (e.g., RSA for a JWT using an RSA-based signature, or EC for a JWT using an EC-based signature).
4. Attempt to verify the JWK using each key in the potential keys list.
   1. If any attempt succeeds, the signature verification succeeds.
   2. If all attempts fail, the signature verification fails.

If an error is encountered during the authentication process, the server SHALL respond with an invalid_client error as defined by the OAuth 2.0 specification.

Issuing Access Tokens

Once the client has been authenticated, the authorization server SHALL mediate the request to assure that the scope requested is within the scope pre-authorized to the client.

If the access token request is valid and authorized, the authorization server SHALL issue an access token in response. The access token response SHALL be a JSON object with the following properties:

To minimize risks associated with token redirection, the scope of each access token SHOULD encompass, and be limited to, the resources requested. Access tokens issued under this profile SHALL be short-lived; the expires_in value SHOULD NOT exceed 300, which represents an expiration-time of five minutes.

The client SHOULD return a “Cache-Control” header in its JWKS response

• The authorization server SHALL NOT cache a JWKS for longer than the client’s cache-control header indicates.
• The authorization server SHOULD cache a client’s JWK Set according to the client’s cache-control header; it doesn’t need to retrieve it anew every time.

If an error is encountered during the authorization process, the server SHALL respond with the appropriate error message defined in Section 5.2 of the OAuth 2.0 specification. The server SHOULD include an error_uri or error_description as defined in OAuth 2.0.

Rules regarding circumstances under which a client is required to obtain and present an access token along with a request are based on risk-management decisions that each FHIR resource service needs to make, considering the workflows involved, perceived risks, and the organization’s risk-management policies. Refresh tokens SHOULD NOT be issued.

Worked example

Assume that a “bilirubin result monitoring service” client has registered with the FHIR authorization server, establishing the following

• JWT “issuer” URL: bili_monitor
• OAuth2 client_id: bili_monitor
• JWK identfier: kid value (see example JWK)

The client protects its private key from unauthorized access, use, and modification.

At runtime, when the bilirubin monitoring service wants to start monitoring some bilirubin values, it needs to obtain an OAuth 2.0 access token with the scopes system/*.read and system/CommunicationRequest.write. To accomplish this (see example raw), the client must first generate a one-time-use authentication JWT with the following claims:

1. Generate a JWT to use for client authentication:

{
  "iss": "bili_monitor",
  "sub": "bili_monitor",
  "aud": "https://authorize.smarthealthit.org/token",
  "exp": 1422568860,
  "jti": "random-non-reusable-jwt-id-123"
}

2. Digitally sign the claims, as specified in RFC7515.

Using the client’s RSA private key, with SHA-384 hashing (as specified for an RS384 algorithm (alg) parameter value in RFC7518), the signed token value is:

eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzM4NCIsImtpZCI6ImVlZTlmMTdhM2I1OThmZDg2NDE3YTk4MGI1OTFmYmU2In0.eyJpc3MiOiJiaWxpX21vbml0b3IiLCJzdWIiOiJiaWxpX21vbml0b3IiLCJhdWQiOiJodHRwczovL2F1dGhvcml6ZS5zbWFydGhlYWx0aGl0Lm9yZy90b2tlbiIsImV4cCI6MTQyMjU2ODg2MCwianRpIjoicmFuZG9tLW5vbi1yZXVzYWJsZS1qd3QtaWQtMTIzIn0.l2E3-ThahEzJ_gaAK8sosc9uk1uhsISmJfwQOtooEcgUiqkdMFdAUE7sr8uJN0fTmTP9TUxssFEAQnCOF8QjkMXngEruIL190YVlwukGgv1wazsi_ptI9euWAf2AjOXaPFm6t629vzdznzVu08EWglG70l41697AXnFK8GUWSBf_8WHrcmFwLD_EpO_BWMoEIGDOOLGjYzOB_eN6abpUo4GCB9gX2-U8IGXAU8UG-axLb35qY7Mczwq9oxM9Z0_IcC8R8TJJQFQXzazo9YZmqts6qQ4pRlsfKpy9IzyLzyR9KZyKLZalBytwkr2lW7QU3tC-xPrf43jQFVKr07f9dA

Note: to inspect this example JWT, you can visit https://jwt.io. Paste the signed JWT value above into the “Encoded” field, and paste the sample public signing key (starting with the {"kty": "RSA" JSON object, and excluding the { "keys": [ JWK Set wrapping array) into the “Public Key” box. The plaintext JWT will be displayed in the “Decoded:Payload” field, and a “Signature Verified” message will appear.

3. Obtain an access token

The client then calls the SMART authentication server’s “token endpoint” using the one-time use authentication JWT as its authentication mechanism:

Request

POST /token HTTP/1.1
Host: authorize.smarthealthit.org
Content-Type: application/x-www-form-urlencoded

grant_type=client_credentials&scope=system%2F*.read%20system%2FCommunicationRequest.write&client_assertion_type=urn%3Aietf%3Aparams%3Aoauth%3Aclient-assertion-type%3Ajwt-bearer&client_assertion=eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzM4NCIsImtpZCI6ImVlZTlmMTdhM2I1OThmZDg2NDE3YTk4MGI1OTFmYmU2In0.eyJpc3MiOiJiaWxpX21vbml0b3IiLCJzdWIiOiJiaWxpX21vbml0b3IiLCJhdWQiOiJodHRwczovL2F1dGhvcml6ZS5zbWFydGhlYWx0aGl0Lm9yZy90b2tlbiIsImV4cCI6MTQyMjU2ODg2MCwianRpIjoicmFuZG9tLW5vbi1yZXVzYWJsZS1qd3QtaWQtMTIzIn0.l2E3-ThahEzJ_gaAK8sosc9uk1uhsISmJfwQOtooEcgUiqkdMFdAUE7sr8uJN0fTmTP9TUxssFEAQnCOF8QjkMXngEruIL190YVlwukGgv1wazsi_ptI9euWAf2AjOXaPFm6t629vzdznzVu08EWglG70l41697AXnFK8GUWSBf_8WHrcmFwLD_EpO_BWMoEIGDOOLGjYzOB_eN6abpUo4GCB9gX2-U8IGXAU8UG-axLb35qY7Mczwq9oxM9Z0_IcC8R8TJJQFQXzazo9YZmqts6qQ4pRlsfKpy9IzyLzyR9KZyKLZalBytwkr2lW7QU3tC-xPrf43jQFVKr07f9dA

Response

The response is a bearer token that will enable the client to retrieve
resources from, and communicate with, the FHIR resource server for a five-minute time period.

HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8
Cache-Control: no-store
Pragma: no-cache

{
  "access_token": "m7rt6i7s9nuxkjvi8vsx",
  "token_type": "bearer",
  "expires_in": 300,
  "scope": "system/*.read system/CommunicationRequest.write"
}

Presenting an Access Token to FHIR API

With a valid access token, a client MAY issue a FHIR API call to a FHIR resource server or other appropriate endpoint. The request MUST include an Authorization header that presents the access_token as a “Bearer” token:

Authorization: Bearer {access_token}

[where {access_token} is replaced with the actual token value]

Example Request

GET https://ehr.example.org/metadata
Authorization: Bearer m7rt6i7s9nuxkjvi8vsx

The server SHALL validate the access token and SHALL ensure that the token has not expired and that its scope includes the requested resource. The method the server uses to validate the access token is beyond the scope of this specification but generally involves an interaction or coordination between the resource server and the authorization server.
