Definitions, Interpretations and Requirements common to all US-Meds actors

This section outlines the definitions and interpretations and specific guidance for the US-Meds IG use cases The conformance verbs used are defined in FHIR Conformance Rules. The general guidance used in the US-Core IG apply to this guide as well.

Background on the FHIR Medications resources

Pharmacy FHIR Resources

The 5 FHIR pharmacy resources concerned with the ordering, dispensing, administration and recording of medications are:

Details about each resource can be found in the FHIR specification. A general discussion regarding the interaction between these resources is described in the FHIR Medications Module and the Guide to Resources Sections.

Relationships Between the Pharmacy FHIR Resources

This IG focuses on access and updates to a patient’s medications and the interaction between the medication order/prescription (MedicationRequest) and the medication record (MedicationStatement). It is therefore important to understand the relationships between these resources. Figure 1 illustrates the workflow relationship between the medication order and the fulfillment as represented by the FHIR medication resources. Note that in the outpatient setting the patient does the administration.

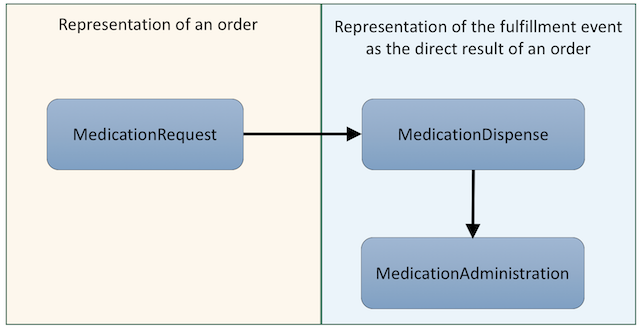

Figure 1: FHIR Medication Order and Fulfillment

MedicationStatement Provenance

Several sources may be used to create a MedicationStatement as is shown in Figure 2 below. The information may come from a patient, a related person (such as a family member), a provider, or a system’s medication orders. A patient or related person may directly report the information or provide some type of record including other FHIR resources. The information from an ordering system may also be used to create a MedicationStatement resource. Any combination of these sources may be used. For example, oftentimes the patient is the only source of information when the patient reports an OTC medication. Alternatively, when the patient reports actual medication usage for a known prescription, then the MedicationStatement is a combination of the order and patient stated compliance or usage. If the patient or provider provided no information, the entire MedicationStatement is derived from the order.

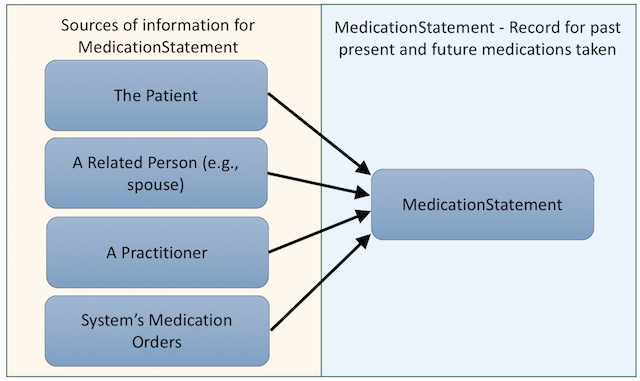

Figure 2: MedicationStatement Information Sources

Various Ways to Represent the Medication

The pharmacy FHIR resources can represent a medication using either a code or a reference to a Medication resource. Typically, a code will be used to represent either a branded (for example, Crestor 10mg tablet) or a generic (for example, Rosuvastatin 10mg tablet) medication. When using a code, the code SHALL be extensibly bound to RxNorm - i.e. unless the concept is not covered by RxNorm, the RxNorm code SHALL be used. More information about using codes can be found in US Core General Guidance Section and the FHIR Specification. A medication resource is typically used when information that is not included as part of the RxNorm code is required. For example, the Medication resource is the only way to correctly represent compounded or extemporaneously prepared medication. When referencing the Medication resource, the resource may be a contained or an external resource. These options are shown in figure 3 below. The server application MAY choose any combination of these methods, but if an external reference to Medication is used, the server SHALL support the include parameter for searching this element. The client application MUST support all methods. The US Core IG provides examples that show these different methods. Additional guidance is provided below and in the CapabilityStatement section.

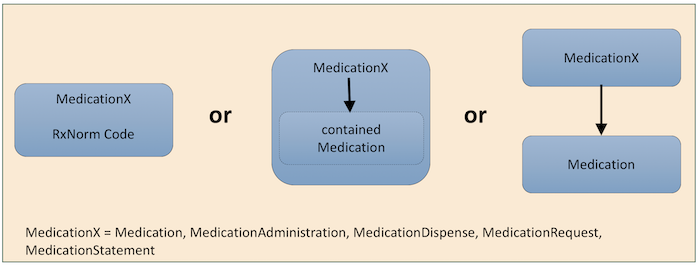

Figure 3: How A Medication is Represented in Pharmacy Resources

Use Case 1 - Patient and Provider access to a patients’ medications

The guidance below addresses how a patient or a provider can access a patients’ active, historical and future (planned) medications list. This use case adopts the use cases defined as part of the Argonaut Project and US Core, specifically within the scope of accessing medication information as prescribed in Meaningful Use 2015 §?170.302(d) - Maintain active medication list. Enable a user to record, change, and access a patient’s active medication list as well as medication history: (i) Ambulatory setting. Over multiple encounters; or (ii) Inpatient setting. For the duration of an entire hospitalization.

Fetching All Medications, Active Medications, and All Medications for an Encounter

Definitions

  • “All medications” is defined in this IG to include all historical (prescribed and consumed), active (prescribed and consumed), future (i.e. intended) and medications that are entered in error and whose status is unknown.
  • “Active medications” is defined in this IG to include all prescribed and/or being consumed medications. Active medications do not include past, future, unknown status, and entered in error medications.

Requirements

  1. A MedicationStatement resource query SHALL be all that is required to access “all medications” and “all active medications” for a patient:
  2. The MedicationStatement SHALL include all medications directly derived from the system’s orders. For medications directly derived from the system’s orders:
    • The MedicationStatement.derivedFrom element SHALL reference the systems MedicationRequest resource for that order.
      • For more information about the dosage etc., the client MAY need to query the MedicationRequest resource directly using the derivedFrom reference.
    • Only MedicationRequest resources with an intent of ‘order’ and any status in status will be accessible through MedicationStatement (i.e., MedicationStatement will not be derived from an order-instance, draft or proposed order).
    • Additional information MAY be added (e.g., whether the medication was taken). When this is the case, the MedicationStatement.informationSource SHALL reference the individual providing the additional information.
    • The MedicationStatement.effectiveDate or effectivePeriod SHOULD be derived from an actual date if available. For example, if the medication was administered during a patient visit. If the actual administration date(s) are unknown the orders authoring date MAY be used as an approximate date. However, in this case, the .taken element SHOULD be unk (Unknown).
  3. The ‘context’ element SHOULD be supported to enable querying for medications administered during an encounter. Searching by context (i.e., for a given inpatient encounter) will return all medications ordered during that encounter, which can include both medications administered in hospital as well as prescribed or discharge medications, which are intended to be taken at home.
  4. The category and context elements MAY be used together to get the intersection of medications for a given encounter (i.e., the context) that were administered during as an inpatient (i.e., the category).

Deduplication of Data

Medications may be duplicated in a medication list when multiple sources of data are used to generate the list. To provide a list of a patients’ medications, it may be necessary to “de-duplicate” the medications on the list. The deduplication activity MAY be provided by the server but SHOULD be provided by the client.

This specification does not specify deduplication best practices, however systems can consider the following approaches:

  • Compare the MedicationRequest.identifier or MedicationStatement.identifier. The identifier element is an external business identifier systems include to help indicate that the resources are related.
  • Compare the generic, or brand name, included in the medication resource. The system will require access to terminology capabilities to identify equivalence.
  • Finally, in the deduplication process, systems must be cautious in only marking things as equivalent if they are certain.

“Not Taken” Medications

For specific guidance on how to determine if the patient has taken the medication, see the MedicationStatement Resource Notes section in the FHIR Specification. To illustrate this scenario, the examples listed below contain an instance in which the patient has not taken a medication.

Quick Start

Below is an overview of the required search and read operations for this use case. See the Conformance requirements for a complete list of supported RESTful operations and search parameters for this IG.

  1. Get “all medications” for a patient by querying MedicationStatement using the patient search parameter. This query is identical to that defined in the US Core Implementation Guide. See that IG for further details.

    Example: Get All Medications

  2. Get “all active medications” for a patient by querying MedicationStatement using the patient and status=’active’ search parameters. This search returns a Bundle of all active MedicationStatements and if the _include parameter is used, Medication resources for the specified patient.

    GET /MedicationStatement?patient=[id]&status=active{&_include=MedicationStatement:medication}

    Support: Mandatory for server and client to support search by patient and status parameter. Mandatory for client to support the _include parameter. Optional for server to support the _include parameter.

    Example: Get All Active Medications

  3. Get “all medications” for an encounter by querying MedicationStatement using the patient and encounter search parameters. This search returns a Bundle of MedicationStatements for an encounter and if the _include parameter is used, Medication resources for the specified patient.

    GET /MedicationStatement?patient=[id]&context=[id]{&_include=MedicationStatement:medication}

    Support: Mandatory for server and client to support search by patient and encounter parameter. Mandatory for client to support the _include parameter. Optional for server to support the _include parameter.

    Example: Get All Medications for an Encounter

Fetching Active Medications Orders

Definitions

  • “Active medication orders” include only the currently prescribed medications. They Do not include order statuses of past, on-hold, stopped, cancelled, future (draft), entered in error or unknown.

Requirements

  1. A MedicationRequest resource query SHALL be all that is required to access the “all active medication orders”.
Quick Start

Below is an overview of the required search and read operations for this use case. See the Conformance requirements for a complete list of supported RESTful operations and search parameters for this IG.

  1. Using the patient and status=’active’ search parameters. This search returns a Bundle of all a patient’s active MedicationRequests and, if the _include parameter is used by the server, Medication resources.

    GET /MedicationRequest?patient=[id]&status=active{&_include=MedicationRequest:medication}

    Support: Mandatory for server and client to support search by patient and status parameter. Mandatory for client to support the _include parameter. Optional for server to support the _include parameter.

    Example: Get All Active Medication Orders

Use Case 2 - Medication list update

This use case adopts the use cases for the Argonaut Project and US Core specifically within the scope of recording and changing medications as prescribed in Meaningful Use 2015 §?170.302(d) - Maintain active medication list. Enable a user to record, change, and access a patient’s active medication list as well as medication history: (i) Ambulatory setting. Over multiple encounters; or (ii) Inpatient setting. For the duration of an entire hospitalization. The updates include both the creation of new MedicationStatement resources and changes to existing MedicationStatement resources. These interactions require “write access” to the EHR systems. Refer to the US Core Implementation Guide’s page for a discussion of the security and authorization requirements.

This Use Case will be the focus of future versions of this IG.

Use Case 3 - Create new outpatient Prescription

This use case involves the provider creating a new outpatient prescription using the MedicationRequest, MedicationStatement and Medication resources. Subsequent workflow steps depend on specific pattern agreed upon by business partners. See a list of possible scenarios in the FHIR workflow sections in the FHIR specification.

At the time of this publication, the US implementers have not used the MedicationRequest resource sufficiently to provide meaningful feedback on best practices and guidance. This Use Case will be the focus of future versions of this IG.

Use Case 4 - Dispense medication from Pharmacy

Background: Community pharmacies in the US are mandated to use NCPDP Script standard to send dispensed medications for adjudication and hospital pharmacies are typically using HL7 V2 RXD messaging. Possible scenarios where this resource could be used for interchange of dispensing data include:

  • Dispense Histories
  • Real-time Confirmation of Prescription Drug Benefits
  • Prescription Drug Monitoring Programs (PDMPs)

At the time of this publication, the US implementers have not used the MedicationDispense resource sufficiently to provide meaningful feedback on best practices and guidance. This Use Case will be the focus of future versions of this IG.
