This page is part of the Da Vinci Prior Authorization Support (PAS) FHIR IG (v2.0.1: STU 2) based on FHIR (HL7® FHIR® Standard) R4. This is the current published version in its permanent home (it will always be available at this URL). For a full list of available versions, see the Directory of published versions
| Page standards status: Informative |
Previous Page - HIPAA Regulations
This section of the implementation guide defines the specific conformance requirements for systems wishing to conform to this Prior Authorization Support implementation guide. The bulk of it focuses on the Claim $submit operation, though it also provides guidance on privacy, security and other implementation requirements.
Before reading this formal specification, implementers should first familiarize themselves with two other key portions of the specification:
The Use Cases & Overview page provides context for what this formal specification is trying to accomplish and will give a sense of both the business context and general process flow enabled by the formal specification below.
The Technical Background page provides information about the underlying specifications and indicates what portions of them should be read and understood to have the necessary foundation to understand the constraints and usage guidance described here.
This implementation guide uses specific terminology to flag statements that have relevance for the evaluation of conformance with the guide:
SHALL indicates requirements that must be met to be conformant with the specification.
SHOULD indicates behaviors that are strongly recommended (and which may result in interoperability issues or sub-optimal behavior if not adhered to), but which do not, for this version of the specification, affect the determination of specification conformance.
MAY describes optional behaviors that are free to consider but where there is no recommendation for or against adoption.
This implementation guide sets expectations for two types of systems:
This specification makes significant use of FHIR profiles and terminology artifacts to describe the content to be shared as part of prior authorization requests and responses.
The full set of profiles defined in this implementation guide can be found by following the links on the Artifacts page.
NOTE FHIR uses a pair of resources called Claim and ClaimResponse for multiple purposes - they are used for actual claim submission, but they are also used for managing prior authorizations and pre-determinations. These are distinguished by the Claim.use code. All references to Claim and ClaimResponse in this implementation guide are using it for the prior authorization purpose. In any element description, where tense is part of the description, it should be interpreted in the context of a prior authorization.

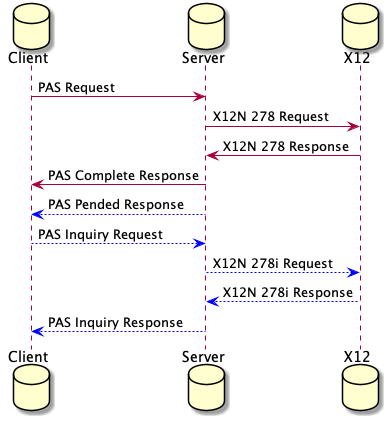

The primary interaction supported by this implementation guide is submitting a prior authorization request and receiving back a response. To perform this, a PASBundle resource is constructed by the client (EHR) system. That Bundle will contain a Claim resource (which FHIR uses to submit prior authorization requests), together with various referenced resources needed to support the population of the 5010 version of the ASC X12N 278 prior authorization request and the 6020 version of the ASC X12N 275 additional documentation transactions.
This Bundle will then be sent as the sole payload of a Claim submit operation. The system on which the operation is invoked will convert the Bundle into an ASC X12N 278 and 0..* additional unsolicited 275 transactions and execute them all against the target payer system. It will then take the resulting 278 response and convert it into a response FHIR Bundle containing a ClaimResponse and associated resources. All of this SHOULD happen synchronously with a maximum of 15 seconds between the user initiating the prior authorization request and seeing the resulting response - i.e. including network transmission time for request and response. (Less time is better.)
In the event that the prior authorization cannot be evaluated and a final response returned within the required timeframe, a response in which one or more of the requested authorization items are ‘pended’ will be returned. A subscription-based mechanism can then be used by the client to be informed of updates to the authorization. As well, the client (or other interested systems - e.g. patient, caregiver or performing provider systems) can use the Claim inquire operation to query for the final results. During this period of time, the same Claim submit operation can be used to request cancellation or modification of the prior authorization.
The Claim submit operation is executed by POSTing a FHIR Bundle to the [base url]/Claim/$submit endpoint. When an EHR configures itself to support a payer’s PAS service, it will need to identify which Payer(s) the service supports such that it can ensure that the EHR only sends service calls to PAS services that the patient has current coverage for. The payer endpoint is responsible for any internal routing based on which processing organization handles the decisions. For this purpose, payer means ‘The organization listed on the member’s insurance card’. Provider and EHR Vendor organizations MAY leverage the [payer registry] developed by PDex (which will eventually fold into the national directory under FAST) as a means of determining which endpoints exist for which payers as candidates for configuration.
The Bundle SHALL be encoded in JSON. The first entry in the Bundle SHALL be a Claim resource complying with the profile defined in this IG to ensure the content is sufficient to appropriately populate an X12N 278 message. Additional Bundle entries SHALL be populated with any resources referenced by the Claim resource (and any resources referenced by those resources, fully traversing all references and complying with all identified profiles). Note that even if a given resource instance is referenced multiple times, it SHALL only appear in the Bundle once. E.g., if the same Practitioner information is referenced in multiple places, only one Practitioner instance should be created - referenced from multiple places as appropriate. Bundle.entry.fullUrl values SHALL be:
All GUIDs used SHALL be unique, including across independent prior authorization submissions - with the exception that the same resource instance being referenced in distinct prior authorization request Bundles can have the same GUID.
In addition to these core elements needed to populate the 278 message, any “supporting information” resources needed to process the prior authorization request (whether determined by DTR processes or by other means) must also be included in the Bundle. Relevant resources referenced by those “supporting information” resources SHALL also be included (e.g. prescriber Practitioner and Medication for a MedicationRequest). Any such resource that has a US Core profile SHALL comply with the relevant US Core profiles. All “supporting information” resources included in the Bundle SHALL be pointed to by the Claim resource using the Claim.supportingInfo.valueReference element. To attach PDFs, CDAs, JPGs, a DocumentReference instance should be used. The Claim.supportingInfo.sequence for each entry SHALL be unique within the Claim.
All resources SHALL comply with their respective profiles. FHIR elements not marked as ‘must support’ MAY be included in resources within the Bundle, but client systems should have no expectation of such elements being processed by the payer unless prior arrangements have been made. Systems that do not process such elements SHALL ignore unsupported elements unless they are ‘modifier’ elements, in which case the system MAY treat the presence of the element as an error.
Details on how to map the FHIR Bundle to the relevant X12N 278 and 275 messages are expected to be published by ASC X12N. The mapping for the 278 Request and Response will be whatever is currently mandated by HIPAA and the mapping for the 278 Inquiry and Response will be the compatible version. The system is responsible for performing full conversion of all mapped elements, including execution of terminology translations when necessary. In addition, the system SHALL make the entire PAS FHIR Bundle available to the intended payer. The method may be based on the X12 275 or another method that trading partners have agreed to use. This serves two purposes - it provides full audit traceability for the payer and it also allows the payer to directly process the FHIR content, potentially extracting elements not present in the X12 messages if needed. (Note: there is no requirement that payers take any such action.). If the X12 275 is used for this purpose, the 275 BDS01 Filter ID Code element SHALL be set to “B64”. Since the 275 binary segment doesn’t contain a field for the binary data MIME type, any system reading that field will have to parse out the first few characters to determine whether the FHIR resources are encoded using XML or JSON syntax. Translation/mapping systems should be aware that if the size of the attachments as part of a claims submission would exceed the size limitations of a particular recipient, the intermediary should split the attachments into separate 275s to remain within the overall limit. All the data required for an X12N 278 is included in the FHIR Bundle request and response, to stay in compliance with HIPAA transaction requirements.
The mapping of Claim.item is driven by the X12 workflow with the use of identifiers on claim items. Although X12 allows this, the Financial Management workgroup has not seen this in other standards and other jurisdictions. This Implementation Guide uses extensions for the various item identifiers, but should this pattern be found to predominate then this may be promoted to an element in the base resource.
This IG treats everything that happens beyond the defined operations endpoint receiving the FHIR bundle as a black box. This black box includes any business associate(s), clearinghouse(s), payers, contracted review entities, and other intermediaries that may be involved in the PA request and response. It is up to that black box to ensure that any regulatory requirements are met and to perform all processing within the allowed timeframe.
The following confluence page is still being worked on and may not be complete at this time.
There is an HL7 Confluence Page that is intended to provide guidance for how to process Prior Authorization submissions under the CMS Exception.
The response to the prior authorization is processed in the reverse order as the request. The system is responsible for converting the ASC X12N 278 response into a FHIR Bundle. The Bundle SHALL start with a ClaimResponse entry that contains information mapped from the 278 response. Just like for the prior authorization request, additional Bundle entries must be present for all resources referenced by the ClaimResponse or descendent references. When converting additional Bundle entries, the conversion process SHALL ensure that only one resource is created for a given combination of content. E.g. if the same Practitioner information is referenced in multiple places, only one Practitioner instance should be created - referenced from multiple places as appropriate. When echoing back resources that are the same as were present in the prior authorization request, the system SHALL ensure that the same fullUrl and resource identifiers are used in the response as appeared in the request.
It is possible that the incoming prior authorization Bundle can not be processed due to validation errors or other non-business-errors. In these instances, the receiving system SHALL return OperationOutcome instances that detail why the Bundle could not be processed and no ClaimResponse will be returned. These errors are NOT the errors that are detected by the system processing the request and that can be conveyed in a ClaimResponse via the error capability.
The resulting Bundle is returned as the HTTP body of the POST response.
This is an example of a standard Referral Request / Response sequence between a Primary Care Provider and a Utilization Management Organization. The request example will show how a PCP can request a referral to a specialist for a patient from a UMO. The response example will also show the response.
Joe Smith is a subscriber to Maryland Capital Insurance Company. During a regular physical, Dr. James Gardener, Joe’s primary care physician, diagnoses a potential heart problem. Dr. Gardener determines that it would be best to refer Joe to Dr. Susan Watson, a cardiologist, for a consultation.
Dr. Gardener is required by Maryland Capital Insurance to submit a request for review seeking approval to refer Joe to Dr. Watson.
After review, Maryland Capital approves the referral and responds.
This section was added in the May 2022 ballot of PAS and we are seeking balloter feedback on it.
The need for predictable exchanges of transaction error conditions with PAS to exchange information between providers, intermediaries and payers cannot be overstated. This section describes the various error conditions the PAS exchange may encounter and the appropriate method of reporting them to the initiating provider. Recipients of the transactions should respond as indicated below and senders of the transaction should look for the following responses and then take appropriate actions.
Business errors that are a part of the processing of the 278 payload, eg. in the AAA segments, are represented in the mapping to the response bundle.
All transactions in PAS are synchronous and SHALL require one of the following HTTP responses:
If an OperationOutcome is received, it may have information regarding errors that should be addressed in the future, but did not cause the transaction to fail. NOTE: These errors should not be returned to the provider but should be reviewed and addressed by technical staff.
| Element | Cardinality | Datatype | Information |
|---|---|---|---|
| Severity | 1..1 | code | fatal, error, warning, information |
| Code | 1..1 | code | IssueType |
| Details | 0..1 | CodeableConcept | additional code that clarifies the issue type |
| Diagnostics | 0..1 | string | addl information (response from validation, TA1, 999) |
| Expression | 0..* | string | FHIRPath of element(s) |
See the OperationOutcome resource for more information.

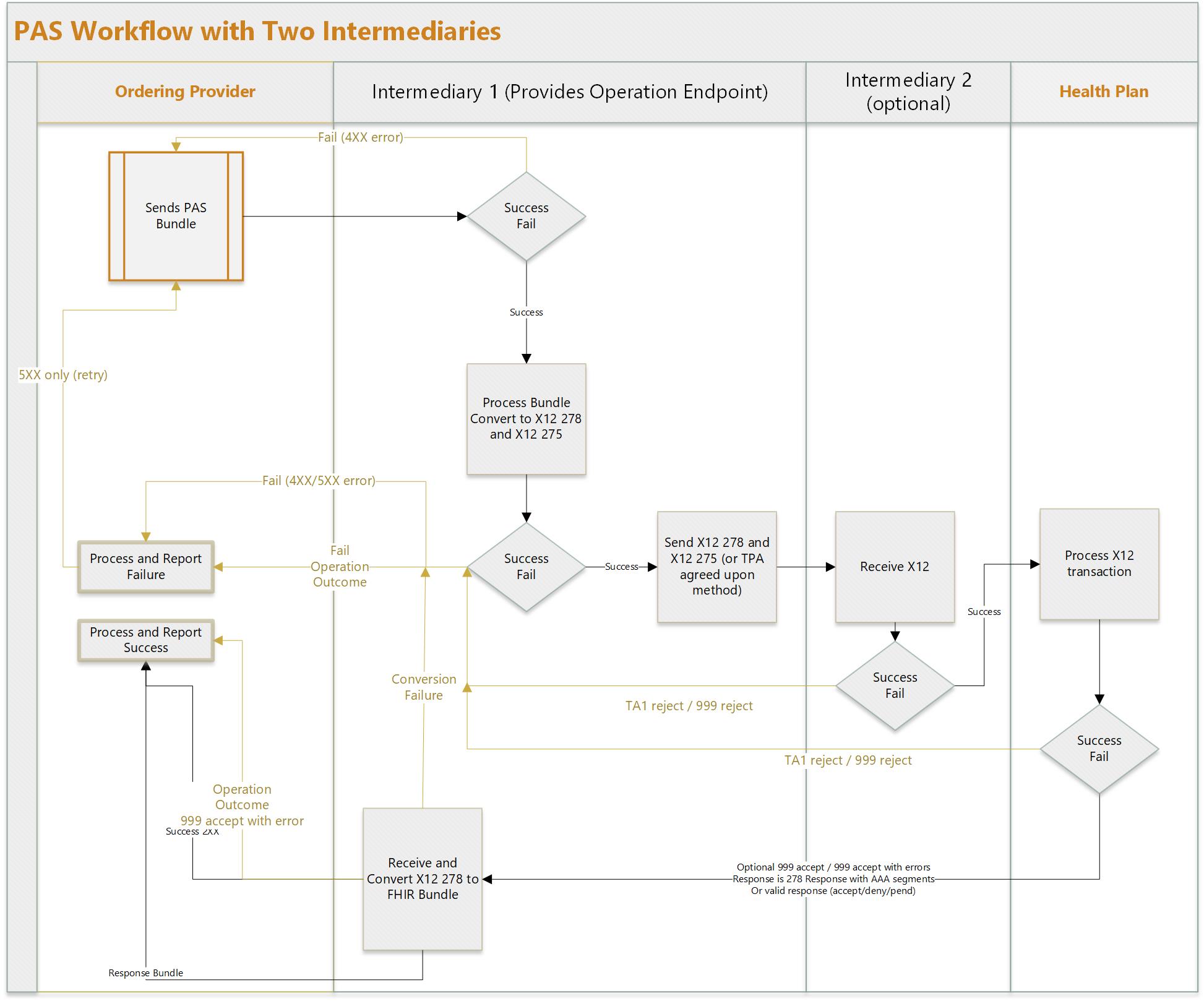

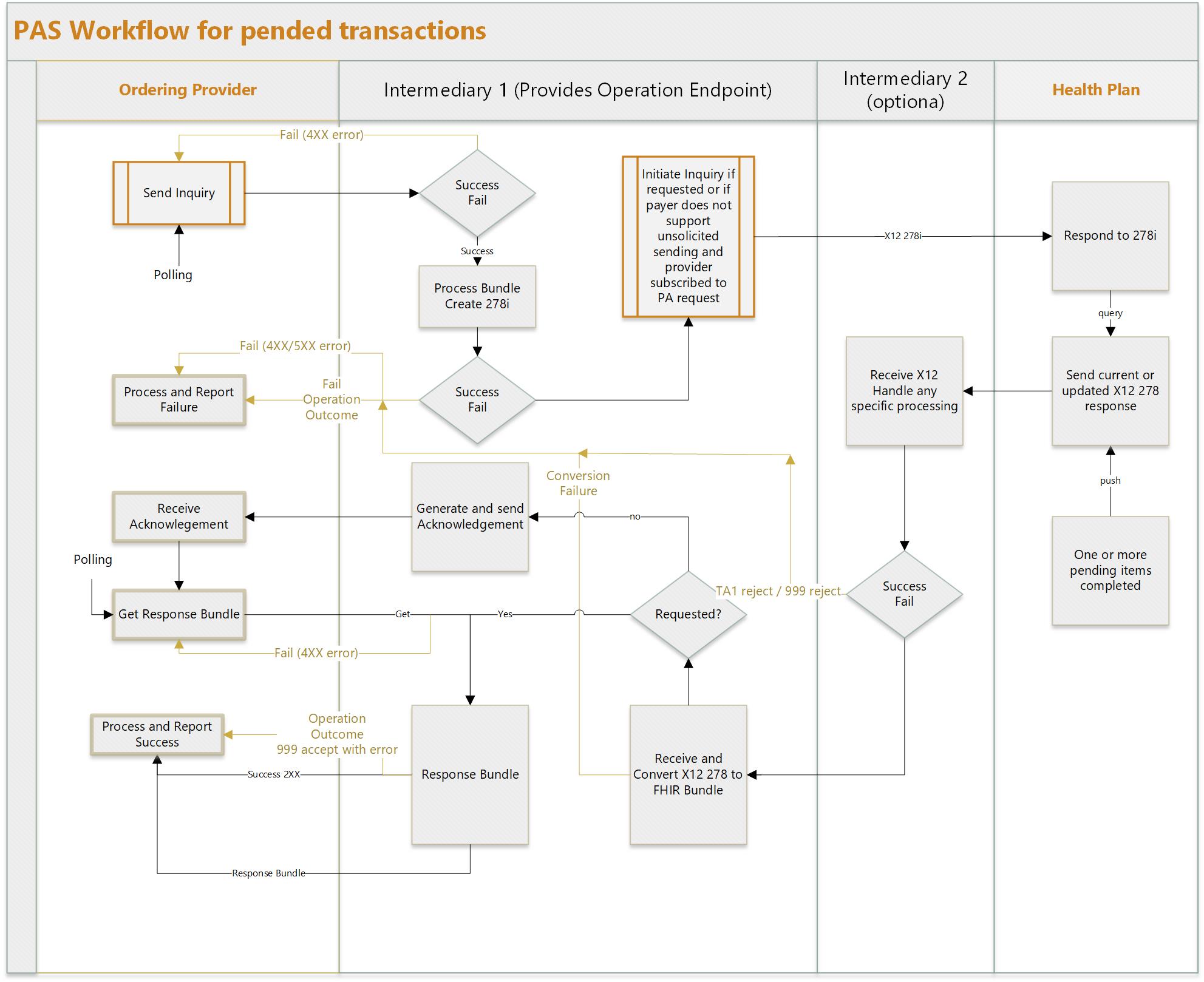

Here are two workflow diagrams that show the sending of a request, the receiving of a response, and optional error handing. The diagrams show an optional second intermediary.
The prior authorization inquiry operation allows for inquiries about prior authorization submissions. This inquiry can be used for checking on updates to ‘pended’ authorization responses (see below), for other systems checking the status of a request (see below), and for generic inquiries. Providers are expected to perform the same query-by-example inquiry even under the CMS exception. This Implementation Guide does not specify a different way of searching for prior authorizations in the exception case.
The parameter to the inquiry operation is a PAS Inquiry Request Bundle which has a Claim Inquiry profile instance as well as any referenced resources if needed. The operation is basically a query-by-example where the incoming Claim resource provides elements that will match existing prior authorizations. Any authorizations that match the incoming resource elements will be returned by the operation. The rules for how the included data elements are matched are specified in the X12 278 inquiry TR3 specification.
NOTE: The inquiry operation must contain a requesting provider organization, a payer organization, and a patient for the inquiry. The operation does not allow inquiries that do not identify a specific patient, such as an inquiry for all prior authorization requests submitted on a specific date.
The information in the Bundle is mapped to a 278 Health Care Services Review Information - Inquiry transaction (278i request). The 278 Health Care Services Review Information - Response (278i response) is then mapped to a PAS Inquiry Response Bundle with the results of the inquiry contained in the Bundle.
Notes:
When the ClaimResponse.reviewaction.code is the X12 code for ‘pended’, it means that the payer requires additional time to make a final determination on all items within the prior authorization request. In this situation, the client system will need to retrieve the prior authorization response at a later point once a final decision has been made. To retrieve the response at a later point, implementers SHALL support subscriptions.
Note: There are use-cases for multiple systems potentially needing to check on the status of a ‘pended’ prior authorization. In addition to the provider who submitted the prior authorization request, the status might also be of interest to:
As a result, queries seeking the status of the prior authorization response may come from multiple systems. Servers SHALL permit access to the prior authorization response to systems other than the original submitter. They SHALL require a match on the patient member or subscriber id (identifier on the Claim.patient) plus the ordering and/or rendering provider identifier, i.e. the provider’s NPI.
We recognize that knowledge of the Patient member or subscriber identifier may not be sufficient access-control for subsequent queries. We are looking for implementer feedback on this, in particular, on how to pass information through the X12 inquiry mechanism to the payer that helps attest to the ‘right to know’.
Implementers SHALL support the R4 Subscriptions referenced in the Subscriptions for R5 Backport Implementation Guide.
When using the subscription retrieval mechanism, the Client will POST a new Subscription instance to the Server’s [base]/Subscription endpoint. The subscription topic is created at the level of the requesting provider organization and not at the level of each individual prior authorization request. The Subscription parameters SHALL be identifier = [requesting provider organization id]. PAS Clients and Intermediaries SHALL support subscriptions with content=’id-only’ but MAY by mutual agreement and with appropriate security arrangements in place for push notifications containing PHI also support content=’full-resource’. Intermediaries SHALL ensure that subscriptions to monitor a particular organization’s prior authorizations are only created or modified by that organization.
Once the subscription has been created, the Server SHALL send a notification over the requested channel indicating that a prior authorization response submitted by the requesting provider organization has changed. This may happen when the response is complete, but may also occur when information on one or more of the items has been adjusted but the overall response remains as ‘pended’.
Upon receiving a notification, the Client SHALL - when convenient and if necessary - execute a query.
Systems other than the requesting system may choose not to subscribe to the prior authorization response but instead to check the status at the request of a user. There are no retry limits for user-initiated status checks.
In some cases, the needs associated with a prior authorization may change after the prior authorization request was submitted. This might be a change to one of the services needed, the timeframe over which the service is provided, the quantity of the service or product, or even the elimination of the need for a given service.
Since submitting an update for a new authorization is frequently player/plan-specific, this IG recommends that an update is attempted first. If that is rejected or the provider knows in advance that an update will not succeed, the a new authorization request should be made.
There are four types of changes possible:
For all of these cases, the update is requested by creating a new Bundle containing a new Claim resource with its own unique Claim.identifier and posting it using the $submit operation. That resource will point to the previous Claim using the Claim.related element. The relationship type will be ‘replaces’. The new claim resource instance will comply with the Revised Prior Authorization profile.
From an X12 perspective, only those items/attachments that are being added/cancelled/revised need to be present. From an HL7 perspective, resources are generally represented as a cohesive whole, not a set of deltas from a previous resource.
To support the updating of a request, the following points need to be considered:
The intermediary will create 278 and/or 275 submissions that instantiate the changes (by looking for those items and supportingInfo elements) and will ignore the unchanged items.
The benefit of this approach is that it is consistent with the way the prior authorization would need to be passed around if it is ever shared in a RESTful manner. However, it can be bandwidth intensive if the prior authorization contains a large number of items, but only a small number of those have changed.
An example of a updated request can be found at Updated Homecare Request along with the original Homecare Request.
Just as the submission of a changed prior authorization request can be submitted in two different modes, a payer can choose to respond in two different modes. Some payers may include responses for all items in the authorization. Others might only include responses for those items that were specifically changed. (In theory, some payers could also return the items that were changed as well as those that are still pended and thus considered ‘open’.) As for the request, if a ClaimResponse does not contain items corresponding to all that are part of the revised prior authorization (including those canceled or unmodified), it SHALL declare a security tag with a value of SUBSETTED to make clear that the resource is incomplete.
The intermediary would populate the ClaimResponse Bundle based on the approach the payer had chosen in their 278 response.
NOTE: When querying for the current status of a prior authorization, the prior authorization response SHALL include all items, even if the identifier queried against corresponds to a prior authorization response whose synchronous response was a differential. For example, if a prior authorization revision was submitted changing one item out of four, the synchronous prior authorization response might only contain one item (and a subsetted flag). However, a subsequent query for the status of that prior authorization would always return a prior authorization resource that contained all four items.
PAS systems SHALL ensure that prior authorizations that were initially pended remain available for query for at least 6 months after the anticipated completion of the services whose authorization was requested.
If the prior authorization response is a denial, it is not permitted to send an ‘update’ to the request. Instead, a new request must be initiated.
Note that data submitted by client systems will comply with US Core profiles, meaning that codes for medications, conditions, etc. will be those used for clinical purposes, not billing. The intermediary will be responsible for performing any necessary mappings (e.g. SNOMED diagnosis codes to ICD10).
It is the intent of this implementation guide to provide specifications for the exchange of prior authorization in a way that is conducive to developing test scripts and a reference implementation (RI) that can be used to validate/exercise the IG at connectathons and during piloting and production deployment. It is also the intent of this guide that any test scripts will include testing of:
