Release 4

This page is part of the FHIR Specification (v4.0.1: R4 - Mixed Normative and STU) in it's permanent home (it will always be available at this URL). The current version which supercedes this version is 5.0.0. For a full list of available versions, see the Directory of published versions . Page versions: R5 R4B R4 R3 R2

Orders and Observations Work GroupMaturity Level: N/AStandards Status: InformativeSecurity Category: Patient Compartments: Device, Encounter, Patient, Practitioner

The following examples of DiagnosticReport resources show examples of laboratory reports:

The following 2 examples of DiagnosticReport resources show example of a complex Micro Isolate and Sensitivities with both 1 and 2 levels of nested Organism and Susceptibilty panels using the related Observation Structure

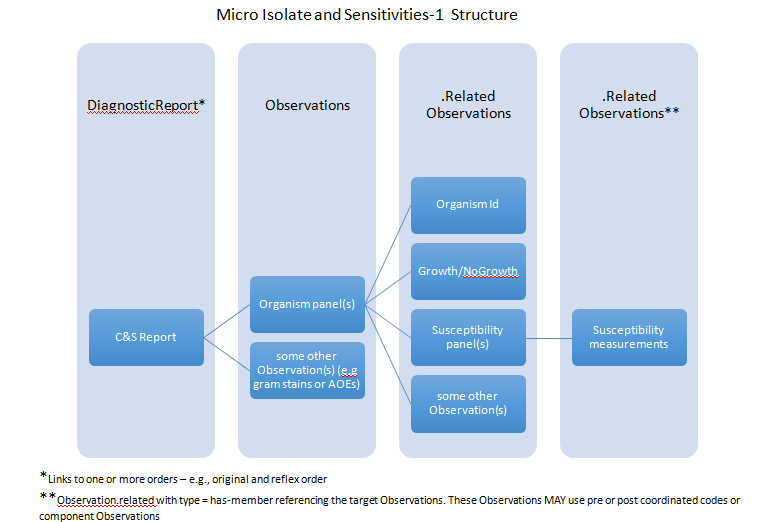

Micro Isolate and Sensitivities-1: An example of a complex Micro Isolate and Sensitivities with 2 level nested Organism and Susceptibilty panels using the related Observation Structure. The following diagram is provided above to help teh reader navigate the nested structures.

Micro Isolate and Sensitivities-1 structure

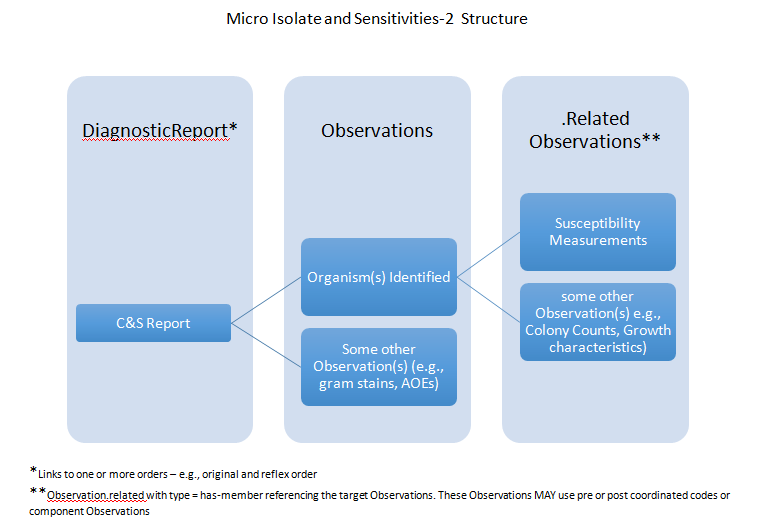

Micro Isolate and Sensitivities-2: An collection Bundle showing an example of a complex Micro Isolate and Sensitivities based on the HL7 V2 Lab Reports Interface (LRI) example. This example has a single level nested Organism panels using the related Observation Structure. The following diagram is provided to help the reader navigate the nested structures.

Micro Isolate and Sensitivities-2 structure

The following examples of DiagnosticReport resources show examples of various imaging reports:

The following examples of DiagnosticReport resources show examples of genomics studies:

The following examples of DiagnosticReport resources show examples of anatomic pathology reports:


Example NameidFormat
General Laboratory Report Example101XMLJSONTurtle
Various reports gathered from v2 messages72ac8493-52ac-41bd-8d5d-7258c289b5eaXMLJSONTurtle
Real-world patient examplef001XMLJSONTurtle
Real-world patient examplef201XMLJSONTurtle
Real-world patient examplef202XMLJSONTurtle
Imaging Example (Bone Density DXA)102XMLJSONTurtle
An example of a complex Micro Isolate and Sensitivities.microXMLJSONTurtle
An collection Bundle showing an example of a complex Micro Isolate and Sensitivitieslri-exampleXMLJSONTurtle
Abdominal Ultrasound exampleultrasoundXMLJSONTurtle
An Example of a report with multiple specimen and panelsghpXMLJSONTurtle
An example of a principally narrative anatomic pathology reportpapXMLJSONTurtle
An example of a presented form anatomic pathology reportgingival-massXMLJSONTurtle
Lipid profilelipidsXMLJSONTurtlefor Profile Example Lipid Profile
An example of a genetics test report with Family member historydg2XMLJSONTurtlefor Profile DiagnosticReport-Genetics
An example of a comprehensive bone marrow reportreportXMLJSONTurtlefor Profile DiagnosticReport-Genetics
An example of a PGx haplotype reportexample-pgxXMLJSONTurtlefor Profile DiagnosticReport-Genetics
An example of a HLA genotyping results reporthla-1XMLJSONTurtlefor Profile Profile for HLA Genotyping Results


Usage note: every effort has been made to ensure that the examples are correct and useful, but they are not a normative part of the specification.
