This page is part of the Genetic Reporting Implementation Guide (v3.0.0: STU3) based on FHIR (HL7® FHIR® Standard) R4. This is the current published version. For a full list of available versions, see the Directory of published versions
Official URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/molecular-consequence | Version: 3.0.0 | |||
Active as of 2024-12-12 | Computable Name: MolecularConsequence | |||
Copyright/Legal: This material contains content from LOINC (http://loinc.org). LOINC is copyright © 1995-2020, Regenstrief Institute, Inc. and the Logical Observation Identifiers Names and Codes (LOINC) Committee and is available at no cost under the license at http://loinc.org/license. LOINC® is a registered United States trademark of Regenstrief Institute, Inc. |
Profile for communicating the calculated or observed effect of a DNA variant, generally on its downstream transcript and, if applicable, ensuing protein sequence. Molecular consequences may also apply to DNA, such as intergenic regions where there are no transcripts (e.g. ‘regulatory_region_variant’). Component ‘feature-consequence’ categorizes the structural implications of a variant (e.g. the variant disrupts a regulatory region, the variant is an inframe insertion), whereas component ‘functional-effect’ categorizes how the variant affects overall function (e.g. is predicted to result in loss of gene function).
Contents:
A given variant can have multiple transcript-specific predicted molecular consequences. Clinical applications such as rare disease variant discovery, clinical trial matching, and the determination of therapeutic options for cancer patients may need to examine each predicted consequence as part of a variant filtration and prioritization process.

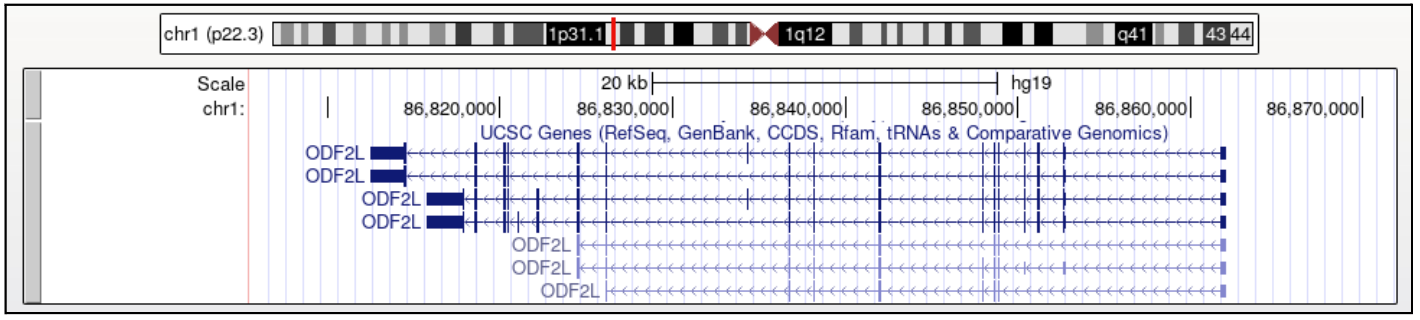

In this example, a variant in a gene with multiple transcripts is annotated with multiple transcript-specific molecular consequence predictions. This figure shows multiple transcripts of the ODF2L gene.

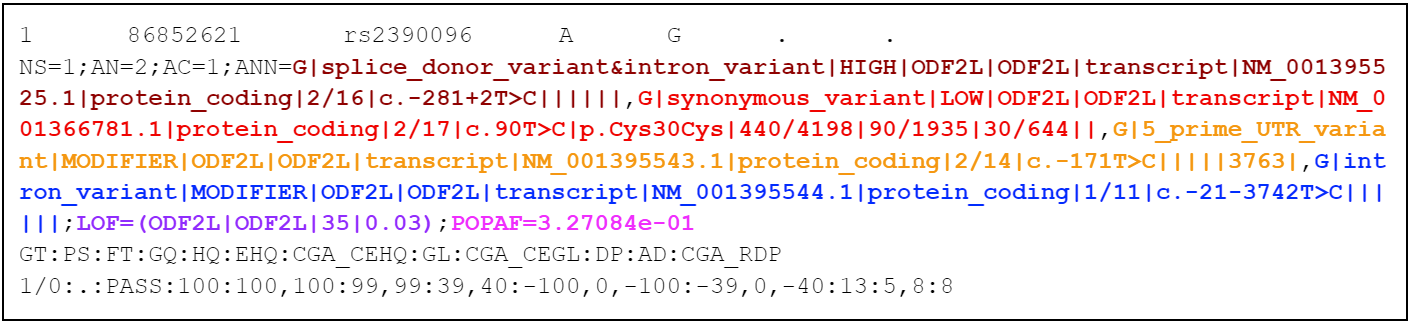

This next figure shows a VCF row. A variant in the ODF2L gene has been annotated with the snpEff/snpSIFT variant prediction tool. Things to note include:
These following examples correspond to the annotated VCF row.
See Genomic Implication for guidance.
There are several cases where it is necessary to differentiate 'AND' conditions (e.g. a consequence of a DNA variant is both X and Y, as in the first example above where a consequence is both a 'splice_donor_variation' AND a 'intron_variant') vs. 'OR' conditions (e.g. a consequence of a DNA variant may be X or may by Y, as in the example above where a consequence might be 'synonymous variant' OR 'intron_variant'). This situation is not unique to molecular consequences, and arises elsewhere within FHIR (e.g. FHIR Search) and outside of FHIR (e.g. Clinvar submission API condition set). To be consistent with other precedents, where molecular consequences have fields with cardinality >1, the inclusion of multiple values within a field shall indicate an 'AND' condition. An 'OR' condition is represented by multiple observation instances.
See Genomic Implication for additional information. Implication fields affected by this guidance include: derivedFrom, evidence-level, feature-consequence.
Usage:
Description of Profiles, Differentials, Snapshots and how the different presentations work.
This structure is derived from GenomicImplication
Name | Flags | Card. | Type | Description & Constraints |
---|---|---|---|---|
Observation | 0..* | GenomicImplication | Molecular Consequence | |
code | 1..1 | CodeableConcept | molecular-consequence Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: molecular-consequence | |
Slices for component | Content/Rules for all slices | |||
component:coding-hgvs | 0..1 | BackboneElement | DNA change (c.HGVS) | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | 48004-6 Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48004-6 | |
value[x] | 1..1 | CodeableConcept | A valid HGVS-formatted 'c.' string, e.g. NM_005228.5:c.2369C>T. Binding: Human Genome Variation Society (HGVS) Nomenclature (required) | |
component:transcript-ref-seq | 0..1 | BackboneElement | Reference Transcript | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | 51958-7 Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 51958-7 | |
value[x] | 1..1 | CodeableConcept | Versioned transcript reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) | |
component:protein-hgvs | 0..1 | BackboneElement | Protein (Amino Acid) Change - pHGVS | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | 48005-3 Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48005-3 | |
value[x] | 1..1 | CodeableConcept | A valid HGVS-formatted 'p.' string, e.g. NP_000050.2:p.(Asn1836Lys) Binding: Human Genome Variation Society (HGVS) Nomenclature (required) | |
component:protein-ref-seq | 0..1 | BackboneElement | Protein Reference Sequence | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | protein-ref-seq Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: protein-ref-seq | |
value[x] | 1..1 | CodeableConcept | Versioned protein reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) | |
component:feature-consequence | 0..* | BackboneElement | Feature Consequence | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | feature-consequence Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: feature-consequence | |
value[x] | 1..1 | CodeableConcept | stop_lost | stop_gained | inframe_insertion | frameshift_variant | ... (many) Binding: Molecular Consequence Value Set (extensible): Concepts in sequence ontology under SO:0001537. | |
component:functional-effect | 0..1 | BackboneElement | Functional Effect | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | functional-effect Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: functional-effect | |
value[x] | 1..1 | CodeableConcept | gain of function | loss of function | loss of heterozygosity | decreased transcript level | increased transcipt level | dominant negative variant | ... (more) Binding: Functional Effect Value Set (extensible): Sequence Ontology terms under SO:0001536 | |
Documentation for this format |
Path | Conformance | ValueSet | URI |
Observation.component:coding-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | |
Observation.component:transcript-ref-seq.value[x] | example |
| |
Observation.component:protein-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | |
Observation.component:protein-ref-seq.value[x] | example |
| |
Observation.component:feature-consequence.value[x] | extensible | MolecularConsequenceVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/molecular-consequence-vs from this IG | |
Observation.component:functional-effect.value[x] | extensible | FunctionalEffectVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/functional-effect-vs from this IG |
Name | Flags | Card. | Type | Description & Constraints |
---|---|---|---|---|
Observation | C | 0..* | GenomicImplication | Molecular Consequence dom-2: If the resource is contained in another resource, it SHALL NOT contain nested Resources dom-3: If the resource is contained in another resource, it SHALL be referred to from elsewhere in the resource or SHALL refer to the containing resource dom-4: If a resource is contained in another resource, it SHALL NOT have a meta.versionId or a meta.lastUpdated dom-5: If a resource is contained in another resource, it SHALL NOT have a security label dom-6: A resource should have narrative for robust management obs-6: dataAbsentReason SHALL only be present if Observation.value[x] is not present obs-7: If Observation.code is the same as an Observation.component.code then the value element associated with the code SHALL NOT be present |
implicitRules | ?!Σ | 0..1 | uri | A set of rules under which this content was created ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
secondary-finding | 0..1 | CodeableConcept | Secondary findings are genetic test results that provide information about variants in a gene unrelated to the primary purpose for the testing, most often discovered when [Whole Exome Sequencing (WES)](https://en.wikipedia.org/wiki/Exome_sequencing) or [Whole Genome Sequencing (WGS)](https://en.wikipedia.org/wiki/Whole_genome_sequencing) is performed. This extension should be used to denote when a genetic finding is being shared as a secondary finding, and ideally refer to a corresponding guideline or policy statement.
For more detail, please see:
https://ghr.nlm.nih.gov/primer/testing/secondaryfindings URL: http://hl7.org/fhir/StructureDefinition/observation-secondaryFinding Binding: GeneticObservationSecondaryFindings (extensible): Codes to denote a guideline or policy statement when a genetic test result is being shared as a secondary finding. ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
body-structure | 0..1 | Reference(BodyStructure) | Target anatomic location or structure URL: http://hl7.org/fhir/StructureDefinition/bodySite ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
workflow-relatedArtifact | 0..* | RelatedArtifact | Documentation relevant to the 'parent' resource URL: http://hl7.org/fhir/StructureDefinition/workflow-relatedArtifact ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?! | 0..* | Extension | Extensions that cannot be ignored ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
status | ?!Σ | 1..1 | code | registered | preliminary | final | amended + Binding: ObservationStatus (required): Codes providing the status of an observation. ele-1: All FHIR elements must have a @value or children |
Slices for category | 2..* | CodeableConcept | Classification of type of observation Slice: Unordered, Open by value:coding Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. ele-1: All FHIR elements must have a @value or children | |
category:labCategory | 1..1 | CodeableConcept | Classification of type of observation Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. ele-1: All FHIR elements must have a @value or children | |
coding | Σ | 1..1 | Coding | Code defined by a terminology system ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://terminology.hl7.org/CodeSystem/observation-category | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: laboratory | |
category:geCategory | 1..1 | CodeableConcept | Classification of type of observation Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. ele-1: All FHIR elements must have a @value or children | |
coding | Σ | 1..1 | Coding | Code defined by a terminology system ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://terminology.hl7.org/CodeSystem/v2-0074 | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: GE | |
code | Σ | 1..1 | CodeableConcept | molecular-consequence Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: molecular-consequence | |
Slices for derivedFrom | Σ | 1..* | Reference(DocumentReference | ImagingStudy | Media | QuestionnaireResponse | Observation | MolecularSequence) | Related measurements the observation is made from Slice: Unordered, Open by profile:resolve() ele-1: All FHIR elements must have a @value or children |
derivedFrom:variant | Σ | 0..* | Reference(Variant) | Variant the implication is derived from ele-1: All FHIR elements must have a @value or children |
derivedFrom:genotype | Σ | 0..* | Reference(Genotype) | Genotype the implication is derived from ele-1: All FHIR elements must have a @value or children |
derivedFrom:haplotype | Σ | 0..* | Reference(Haplotype) | Haplotype the implication is derived from ele-1: All FHIR elements must have a @value or children |
derivedFrom:biomarker | Σ | 0..* | Reference(Molecular Biomarker) | MolecularBiomarker the implication is derived from ele-1: All FHIR elements must have a @value or children |
Slices for component | Σ | 0..* | BackboneElement | Component results Slice: Unordered, Open by value:code ele-1: All FHIR elements must have a @value or children |
component:All Slices | Content/Rules for all slices | |||
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | Type of component observation (code / type) Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children |
component:conclusion-string | Σ | 0..1 | BackboneElement | Clinical Conclusion ele-1: All FHIR elements must have a @value or children |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | conclusion-string Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: conclusion-string | |
component:evidence-level | Σ | 0..* | BackboneElement | Level of Evidence ele-1: All FHIR elements must have a @value or children |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | 93044-6 Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 93044-6 | |
value[x] | Σ | 1..1 | CodeableConcept | 1A | 1B | 2A | 2B | 3 | 4 | 4-star | 3-star | 2-star | 1-star | no-star Binding: Evidence Level Examples (example): PharmGKB or ClinVar ele-1: All FHIR elements must have a @value or children |
component:clinical-significance | Σ | 0..1 | BackboneElement | Clinical significance ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | 53037-8 Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 53037-8 | |
value[x] | Σ | 1..1 | CodeableConcept | Pathogenic | Likely pathogenic | Uncertain significance | Likely benign | Benign Binding: LOINC Answer List LL4034-6 (example) ele-1: All FHIR elements must have a @value or children |
component:coding-hgvs | Σ | 0..1 | BackboneElement | DNA change (c.HGVS) ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | 48004-6 Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48004-6 | |
value[x] | Σ | 1..1 | CodeableConcept | A valid HGVS-formatted 'c.' string, e.g. NM_005228.5:c.2369C>T. Binding: Human Genome Variation Society (HGVS) Nomenclature (required) ele-1: All FHIR elements must have a @value or children |
component:transcript-ref-seq | Σ | 0..1 | BackboneElement | Reference Transcript ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | 51958-7 Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 51958-7 | |
value[x] | Σ | 1..1 | CodeableConcept | Versioned transcript reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) ele-1: All FHIR elements must have a @value or children |
component:protein-hgvs | Σ | 0..1 | BackboneElement | Protein (Amino Acid) Change - pHGVS ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | 48005-3 Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48005-3 | |
value[x] | Σ | 1..1 | CodeableConcept | A valid HGVS-formatted 'p.' string, e.g. NP_000050.2:p.(Asn1836Lys) Binding: Human Genome Variation Society (HGVS) Nomenclature (required) ele-1: All FHIR elements must have a @value or children |
component:protein-ref-seq | Σ | 0..1 | BackboneElement | Protein Reference Sequence ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | protein-ref-seq Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: protein-ref-seq | |
value[x] | Σ | 1..1 | CodeableConcept | Versioned protein reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) ele-1: All FHIR elements must have a @value or children |
component:feature-consequence | Σ | 0..* | BackboneElement | Feature Consequence ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | feature-consequence Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: feature-consequence | |
value[x] | Σ | 1..1 | CodeableConcept | stop_lost | stop_gained | inframe_insertion | frameshift_variant | ... (many) Binding: Molecular Consequence Value Set (extensible): Concepts in sequence ontology under SO:0001537. ele-1: All FHIR elements must have a @value or children |
component:functional-effect | Σ | 0..1 | BackboneElement | Functional Effect ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | functional-effect Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: functional-effect | |
value[x] | Σ | 1..1 | CodeableConcept | gain of function | loss of function | loss of heterozygosity | decreased transcript level | increased transcipt level | dominant negative variant | ... (more) Binding: Functional Effect Value Set (extensible): Sequence Ontology terms under SO:0001536 ele-1: All FHIR elements must have a @value or children |
Documentation for this format |
Path | Conformance | ValueSet / Code | URI |
Observation.status | required | ObservationStatushttp://hl7.org/fhir/ValueSet/observation-status|4.0.1 from the FHIR Standard | |
Observation.category | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | |
Observation.category:labCategory | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | |
Observation.category:geCategory | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | |
Observation.code | example | Pattern: molecular-consequencehttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component.code | example | LOINCCodes (a valid code from LOINC)http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:conclusion-string.code | example | Pattern: conclusion-stringhttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:evidence-level.code | example | Pattern: LOINC Code 93044-6http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:evidence-level.value[x] | example | EvidenceLevelExampleVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/evidence-level-example-vs from this IG | |
Observation.component:clinical-significance.code | example | Pattern: LOINC Code 53037-8http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:clinical-significance.value[x] | example | LOINC LL4034-6http://loinc.org/vs/LL4034-6 | |
Observation.component:coding-hgvs.code | example | Pattern: LOINC Code 48004-6http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:coding-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | |
Observation.component:transcript-ref-seq.code | example | Pattern: LOINC Code 51958-7http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:transcript-ref-seq.value[x] | example | ||
Observation.component:protein-hgvs.code | example | Pattern: LOINC Code 48005-3http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:protein-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | |
Observation.component:protein-ref-seq.code | example | Pattern: protein-ref-seqhttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:protein-ref-seq.value[x] | example | ||
Observation.component:feature-consequence.code | example | Pattern: feature-consequencehttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:feature-consequence.value[x] | extensible | MolecularConsequenceVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/molecular-consequence-vs from this IG | |
Observation.component:functional-effect.code | example | Pattern: functional-effecthttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:functional-effect.value[x] | extensible | FunctionalEffectVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/functional-effect-vs from this IG |
Id | Grade | Path(s) | Details | Requirements |
dom-2 | error | Observation | If the resource is contained in another resource, it SHALL NOT contain nested Resources : contained.contained.empty() | |
dom-3 | error | Observation | If the resource is contained in another resource, it SHALL be referred to from elsewhere in the resource or SHALL refer to the containing resource : contained.where((('#'+id in (%resource.descendants().reference | %resource.descendants().as(canonical) | %resource.descendants().as(uri) | %resource.descendants().as(url))) or descendants().where(reference = '#').exists() or descendants().where(as(canonical) = '#').exists() or descendants().where(as(canonical) = '#').exists()).not()).trace('unmatched', id).empty() | |
dom-4 | error | Observation | If a resource is contained in another resource, it SHALL NOT have a meta.versionId or a meta.lastUpdated : contained.meta.versionId.empty() and contained.meta.lastUpdated.empty() | |
dom-5 | error | Observation | If a resource is contained in another resource, it SHALL NOT have a security label : contained.meta.security.empty() | |
dom-6 | best practice | Observation | A resource should have narrative for robust management : text.`div`.exists() | |
ele-1 | error | **ALL** elements | All FHIR elements must have a @value or children : hasValue() or (children().count() > id.count()) | |
ext-1 | error | **ALL** extensions | Must have either extensions or value[x], not both : extension.exists() != value.exists() | |
obs-6 | error | Observation | dataAbsentReason SHALL only be present if Observation.value[x] is not present : dataAbsentReason.empty() or value.empty() | |
obs-7 | error | Observation | If Observation.code is the same as an Observation.component.code then the value element associated with the code SHALL NOT be present : value.empty() or component.code.where(coding.intersect(%resource.code.coding).exists()).empty() |
Name | Flags | Card. | Type | Description & Constraints | ||||
---|---|---|---|---|---|---|---|---|
Observation | C | 0..* | GenomicImplication | Molecular Consequence obs-6: dataAbsentReason SHALL only be present if Observation.value[x] is not present obs-7: If Observation.code is the same as an Observation.component.code then the value element associated with the code SHALL NOT be present | ||||
id | Σ | 0..1 | id | Logical id of this artifact | ||||
meta | Σ | 0..1 | Meta | Metadata about the resource | ||||
implicitRules | ?!Σ | 0..1 | uri | A set of rules under which this content was created | ||||
language | 0..1 | code | Language of the resource content Binding: CommonLanguages (preferred): A human language.
| |||||
text | 0..1 | Narrative | Text summary of the resource, for human interpretation | |||||
contained | 0..* | Resource | Contained, inline Resources | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
secondary-finding | 0..1 | CodeableConcept | Secondary findings are genetic test results that provide information about variants in a gene unrelated to the primary purpose for the testing, most often discovered when [Whole Exome Sequencing (WES)](https://en.wikipedia.org/wiki/Exome_sequencing) or [Whole Genome Sequencing (WGS)](https://en.wikipedia.org/wiki/Whole_genome_sequencing) is performed. This extension should be used to denote when a genetic finding is being shared as a secondary finding, and ideally refer to a corresponding guideline or policy statement.
For more detail, please see:
https://ghr.nlm.nih.gov/primer/testing/secondaryfindings URL: http://hl7.org/fhir/StructureDefinition/observation-secondaryFinding Binding: GeneticObservationSecondaryFindings (extensible): Codes to denote a guideline or policy statement when a genetic test result is being shared as a secondary finding. | |||||
body-structure | 0..1 | Reference(BodyStructure) | Target anatomic location or structure URL: http://hl7.org/fhir/StructureDefinition/bodySite | |||||
workflow-relatedArtifact | 0..* | RelatedArtifact | Documentation relevant to the 'parent' resource URL: http://hl7.org/fhir/StructureDefinition/workflow-relatedArtifact | |||||
modifierExtension | ?! | 0..* | Extension | Extensions that cannot be ignored | ||||
identifier | Σ | 0..* | Identifier | Business Identifier for observation | ||||
basedOn | Σ | 0..* | Reference(CarePlan | DeviceRequest | ImmunizationRecommendation | MedicationRequest | NutritionOrder | ServiceRequest) | Fulfills plan, proposal or order | ||||
partOf | Σ | 0..* | Reference(MedicationAdministration | MedicationDispense | MedicationStatement | Procedure | Immunization | ImagingStudy | Genomic Study) | Part of referenced event | ||||
status | ?!Σ | 1..1 | code | registered | preliminary | final | amended + Binding: ObservationStatus (required): Codes providing the status of an observation. | ||||
Slices for category | 2..* | CodeableConcept | Classification of type of observation Slice: Unordered, Open by value:coding Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. | |||||
category:labCategory | 1..1 | CodeableConcept | Classification of type of observation Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations Slice: Unordered, Open by value:url | |||||
coding | Σ | 1..1 | Coding | Code defined by a terminology system Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://terminology.hl7.org/CodeSystem/observation-category | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: laboratory | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | Σ | 0..1 | string | Plain text representation of the concept | ||||
category:geCategory | 1..1 | CodeableConcept | Classification of type of observation Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations Slice: Unordered, Open by value:url | |||||
coding | Σ | 1..1 | Coding | Code defined by a terminology system Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://terminology.hl7.org/CodeSystem/v2-0074 | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: GE | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | Σ | 0..1 | string | Plain text representation of the concept | ||||
code | Σ | 1..1 | CodeableConcept | molecular-consequence Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: molecular-consequence | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
subject | Σ | 0..1 | Reference(Patient | Group | Device | Location) | Who and/or what the observation is about | ||||
focus | Σ | 0..* | Reference(Resource) | What the observation is about, when it is not about the subject of record | ||||
encounter | Σ | 0..1 | Reference(Encounter) | Healthcare event during which this observation is made | ||||
effective[x] | Σ | 0..1 | Clinically relevant time/time-period for observation | |||||
effectiveDateTime | dateTime | |||||||
effectivePeriod | Period | |||||||
effectiveTiming | Timing | |||||||
effectiveInstant | instant | |||||||
issued | Σ | 0..1 | instant | Date/Time this version was made available | ||||
performer | Σ | 0..* | Reference(Practitioner | PractitionerRole | Organization | CareTeam | Patient | RelatedPerson) | Who is responsible for the observation | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
note | 0..* | CodedAnnotation | Comments about the Observation that also contain a coded type | |||||
bodySite | 0..1 | CodeableConcept | Observed body part Binding: SNOMEDCTBodyStructures (example): Codes describing anatomical locations. May include laterality. | |||||
method | 0..1 | CodeableConcept | How it was done Binding: ObservationMethods (example): Methods for simple observations. | |||||
specimen | 0..1 | Reference(Specimen) | Specimen used for this observation | |||||
device | 0..1 | Reference(Device | DeviceMetric) | (Measurement) Device | |||||
referenceRange | C | 0..* | BackboneElement | Provides guide for interpretation obs-3: Must have at least a low or a high or text | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
low | C | 0..1 | SimpleQuantity | Low Range, if relevant | ||||
high | C | 0..1 | SimpleQuantity | High Range, if relevant | ||||
type | 0..1 | CodeableConcept | Reference range qualifier Binding: ObservationReferenceRangeMeaningCodes (preferred): Code for the meaning of a reference range. | |||||
appliesTo | 0..* | CodeableConcept | Reference range population Binding: ObservationReferenceRangeAppliesToCodes (example): Codes identifying the population the reference range applies to. | |||||
age | 0..1 | Range | Applicable age range, if relevant | |||||
text | 0..1 | string | Text based reference range in an observation | |||||
hasMember | Σ | 0..* | Reference(Observation | QuestionnaireResponse | MolecularSequence) | Related resource that belongs to the Observation group | ||||
Slices for derivedFrom | Σ | 1..* | Reference(DocumentReference | ImagingStudy | Media | QuestionnaireResponse | Observation | MolecularSequence) | Related measurements the observation is made from Slice: Unordered, Open by profile:resolve() | ||||
derivedFrom:variant | Σ | 0..* | Reference(Variant) | Variant the implication is derived from | ||||
derivedFrom:genotype | Σ | 0..* | Reference(Genotype) | Genotype the implication is derived from | ||||
derivedFrom:haplotype | Σ | 0..* | Reference(Haplotype) | Haplotype the implication is derived from | ||||
derivedFrom:biomarker | Σ | 0..* | Reference(Molecular Biomarker) | MolecularBiomarker the implication is derived from | ||||
Slices for component | Σ | 0..* | BackboneElement | Component results Slice: Unordered, Open by value:code | ||||
component:All Slices | Content/Rules for all slices | |||||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | Type of component observation (code / type) Binding: LOINCCodes (example): Codes identifying names of simple observations. | ||||
value[x] | Σ | 0..1 | Actual component result | |||||
valueQuantity | Quantity | |||||||
valueCodeableConcept | CodeableConcept | |||||||
valueString | string | |||||||
valueBoolean | boolean | |||||||
valueInteger | integer | |||||||
valueRange | Range | |||||||
valueRatio | Ratio | |||||||
valueSampledData | SampledData | |||||||
valueTime | time | |||||||
valueDateTime | dateTime | |||||||
valuePeriod | Period | |||||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:conclusion-string | Σ | 0..1 | BackboneElement | Clinical Conclusion | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | conclusion-string Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: conclusion-string | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 0..1 | string | Summary conclusion (interpretation/impression) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:evidence-level | Σ | 0..* | BackboneElement | Level of Evidence | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | 93044-6 Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 93044-6 | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | 1A | 1B | 2A | 2B | 3 | 4 | 4-star | 3-star | 2-star | 1-star | no-star Binding: Evidence Level Examples (example): PharmGKB or ClinVar | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:clinical-significance | Σ | 0..1 | BackboneElement | Clinical significance | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | 53037-8 Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 53037-8 | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | Pathogenic | Likely pathogenic | Uncertain significance | Likely benign | Benign Binding: LOINC Answer List LL4034-6 (example) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:coding-hgvs | Σ | 0..1 | BackboneElement | DNA change (c.HGVS) | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | 48004-6 Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48004-6 | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | A valid HGVS-formatted 'c.' string, e.g. NM_005228.5:c.2369C>T. Binding: Human Genome Variation Society (HGVS) Nomenclature (required) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:transcript-ref-seq | Σ | 0..1 | BackboneElement | Reference Transcript | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | 51958-7 Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 51958-7 | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | Versioned transcript reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:protein-hgvs | Σ | 0..1 | BackboneElement | Protein (Amino Acid) Change - pHGVS | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | 48005-3 Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48005-3 | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | A valid HGVS-formatted 'p.' string, e.g. NP_000050.2:p.(Asn1836Lys) Binding: Human Genome Variation Society (HGVS) Nomenclature (required) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:protein-ref-seq | Σ | 0..1 | BackboneElement | Protein Reference Sequence | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | protein-ref-seq Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: protein-ref-seq | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | Versioned protein reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:feature-consequence | Σ | 0..* | BackboneElement | Feature Consequence | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | feature-consequence Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: feature-consequence | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | stop_lost | stop_gained | inframe_insertion | frameshift_variant | ... (many) Binding: Molecular Consequence Value Set (extensible): Concepts in sequence ontology under SO:0001537. | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:functional-effect | Σ | 0..1 | BackboneElement | Functional Effect | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | functional-effect Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: functional-effect | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | gain of function | loss of function | loss of heterozygosity | decreased transcript level | increased transcipt level | dominant negative variant | ... (more) Binding: Functional Effect Value Set (extensible): Sequence Ontology terms under SO:0001536 | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
Documentation for this format |
Path | Conformance | ValueSet / Code | URI | |||
Observation.language | preferred | CommonLanguageshttp://hl7.org/fhir/ValueSet/languages from the FHIR Standard
| ||||
Observation.status | required | ObservationStatushttp://hl7.org/fhir/ValueSet/observation-status|4.0.1 from the FHIR Standard | ||||
Observation.category | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | ||||
Observation.category:labCategory | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | ||||
Observation.category:geCategory | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | ||||
Observation.code | example | Pattern: molecular-consequencehttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.bodySite | example | SNOMEDCTBodyStructureshttp://hl7.org/fhir/ValueSet/body-site from the FHIR Standard | ||||
Observation.method | example | ObservationMethodshttp://hl7.org/fhir/ValueSet/observation-methods from the FHIR Standard | ||||
Observation.referenceRange.type | preferred | ObservationReferenceRangeMeaningCodeshttp://hl7.org/fhir/ValueSet/referencerange-meaning from the FHIR Standard | ||||
Observation.referenceRange.appliesTo | example | ObservationReferenceRangeAppliesToCodeshttp://hl7.org/fhir/ValueSet/referencerange-appliesto from the FHIR Standard | ||||
Observation.component.code | example | LOINCCodes (a valid code from LOINC)http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:conclusion-string.code | example | Pattern: conclusion-stringhttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:conclusion-string.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:conclusion-string.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:evidence-level.code | example | Pattern: LOINC Code 93044-6http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:evidence-level.value[x] | example | EvidenceLevelExampleVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/evidence-level-example-vs from this IG | ||||
Observation.component:evidence-level.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:evidence-level.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:clinical-significance.code | example | Pattern: LOINC Code 53037-8http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:clinical-significance.value[x] | example | LOINC LL4034-6http://loinc.org/vs/LL4034-6 | ||||
Observation.component:clinical-significance.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:clinical-significance.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:coding-hgvs.code | example | Pattern: LOINC Code 48004-6http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:coding-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | ||||
Observation.component:coding-hgvs.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:coding-hgvs.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:transcript-ref-seq.code | example | Pattern: LOINC Code 51958-7http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:transcript-ref-seq.value[x] | example | |||||
Observation.component:transcript-ref-seq.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:transcript-ref-seq.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:protein-hgvs.code | example | Pattern: LOINC Code 48005-3http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:protein-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | ||||
Observation.component:protein-hgvs.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:protein-hgvs.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:protein-ref-seq.code | example | Pattern: protein-ref-seqhttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:protein-ref-seq.value[x] | example | |||||
Observation.component:protein-ref-seq.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:protein-ref-seq.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:feature-consequence.code | example | Pattern: feature-consequencehttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:feature-consequence.value[x] | extensible | MolecularConsequenceVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/molecular-consequence-vs from this IG | ||||
Observation.component:feature-consequence.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:feature-consequence.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:functional-effect.code | example | Pattern: functional-effecthttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:functional-effect.value[x] | extensible | FunctionalEffectVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/functional-effect-vs from this IG | ||||
Observation.component:functional-effect.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:functional-effect.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard |
Id | Grade | Path(s) | Details | Requirements |
dom-2 | error | Observation | If the resource is contained in another resource, it SHALL NOT contain nested Resources : contained.contained.empty() | |
dom-3 | error | Observation | If the resource is contained in another resource, it SHALL be referred to from elsewhere in the resource or SHALL refer to the containing resource : contained.where((('#'+id in (%resource.descendants().reference | %resource.descendants().as(canonical) | %resource.descendants().as(uri) | %resource.descendants().as(url))) or descendants().where(reference = '#').exists() or descendants().where(as(canonical) = '#').exists() or descendants().where(as(canonical) = '#').exists()).not()).trace('unmatched', id).empty() | |
dom-4 | error | Observation | If a resource is contained in another resource, it SHALL NOT have a meta.versionId or a meta.lastUpdated : contained.meta.versionId.empty() and contained.meta.lastUpdated.empty() | |
dom-5 | error | Observation | If a resource is contained in another resource, it SHALL NOT have a security label : contained.meta.security.empty() | |
dom-6 | best practice | Observation | A resource should have narrative for robust management : text.`div`.exists() | |
ele-1 | error | **ALL** elements | All FHIR elements must have a @value or children : hasValue() or (children().count() > id.count()) | |
ext-1 | error | **ALL** extensions | Must have either extensions or value[x], not both : extension.exists() != value.exists() | |
obs-3 | error | Observation.referenceRange | Must have at least a low or a high or text : low.exists() or high.exists() or text.exists() | |
obs-6 | error | Observation | dataAbsentReason SHALL only be present if Observation.value[x] is not present : dataAbsentReason.empty() or value.empty() | |
obs-7 | error | Observation | If Observation.code is the same as an Observation.component.code then the value element associated with the code SHALL NOT be present : value.empty() or component.code.where(coding.intersect(%resource.code.coding).exists()).empty() |
This structure is derived from GenomicImplication
Differential View
This structure is derived from GenomicImplication
Name | Flags | Card. | Type | Description & Constraints |
---|---|---|---|---|
Observation | 0..* | GenomicImplication | Molecular Consequence | |
code | 1..1 | CodeableConcept | molecular-consequence Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: molecular-consequence | |
Slices for component | Content/Rules for all slices | |||
component:coding-hgvs | 0..1 | BackboneElement | DNA change (c.HGVS) | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | 48004-6 Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48004-6 | |
value[x] | 1..1 | CodeableConcept | A valid HGVS-formatted 'c.' string, e.g. NM_005228.5:c.2369C>T. Binding: Human Genome Variation Society (HGVS) Nomenclature (required) | |
component:transcript-ref-seq | 0..1 | BackboneElement | Reference Transcript | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | 51958-7 Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 51958-7 | |
value[x] | 1..1 | CodeableConcept | Versioned transcript reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) | |
component:protein-hgvs | 0..1 | BackboneElement | Protein (Amino Acid) Change - pHGVS | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | 48005-3 Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48005-3 | |
value[x] | 1..1 | CodeableConcept | A valid HGVS-formatted 'p.' string, e.g. NP_000050.2:p.(Asn1836Lys) Binding: Human Genome Variation Society (HGVS) Nomenclature (required) | |
component:protein-ref-seq | 0..1 | BackboneElement | Protein Reference Sequence | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | protein-ref-seq Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: protein-ref-seq | |
value[x] | 1..1 | CodeableConcept | Versioned protein reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) | |
component:feature-consequence | 0..* | BackboneElement | Feature Consequence | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | feature-consequence Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: feature-consequence | |
value[x] | 1..1 | CodeableConcept | stop_lost | stop_gained | inframe_insertion | frameshift_variant | ... (many) Binding: Molecular Consequence Value Set (extensible): Concepts in sequence ontology under SO:0001537. | |
component:functional-effect | 0..1 | BackboneElement | Functional Effect | |
Slices for extension | Content/Rules for all slices | |||
extension:workflow-relatedArtifactComponent | 0..* | RelatedArtifactComponent | Related Artifact for Observation component | |
code | 1..1 | CodeableConcept | functional-effect Required Pattern: At least the following | |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: functional-effect | |
value[x] | 1..1 | CodeableConcept | gain of function | loss of function | loss of heterozygosity | decreased transcript level | increased transcipt level | dominant negative variant | ... (more) Binding: Functional Effect Value Set (extensible): Sequence Ontology terms under SO:0001536 | |
Documentation for this format |
Path | Conformance | ValueSet | URI |
Observation.component:coding-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | |
Observation.component:transcript-ref-seq.value[x] | example |
| |
Observation.component:protein-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | |
Observation.component:protein-ref-seq.value[x] | example |
| |
Observation.component:feature-consequence.value[x] | extensible | MolecularConsequenceVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/molecular-consequence-vs from this IG | |
Observation.component:functional-effect.value[x] | extensible | FunctionalEffectVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/functional-effect-vs from this IG |
Key Elements View
Name | Flags | Card. | Type | Description & Constraints |
---|---|---|---|---|
Observation | C | 0..* | GenomicImplication | Molecular Consequence dom-2: If the resource is contained in another resource, it SHALL NOT contain nested Resources dom-3: If the resource is contained in another resource, it SHALL be referred to from elsewhere in the resource or SHALL refer to the containing resource dom-4: If a resource is contained in another resource, it SHALL NOT have a meta.versionId or a meta.lastUpdated dom-5: If a resource is contained in another resource, it SHALL NOT have a security label dom-6: A resource should have narrative for robust management obs-6: dataAbsentReason SHALL only be present if Observation.value[x] is not present obs-7: If Observation.code is the same as an Observation.component.code then the value element associated with the code SHALL NOT be present |
implicitRules | ?!Σ | 0..1 | uri | A set of rules under which this content was created ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
secondary-finding | 0..1 | CodeableConcept | Secondary findings are genetic test results that provide information about variants in a gene unrelated to the primary purpose for the testing, most often discovered when [Whole Exome Sequencing (WES)](https://en.wikipedia.org/wiki/Exome_sequencing) or [Whole Genome Sequencing (WGS)](https://en.wikipedia.org/wiki/Whole_genome_sequencing) is performed. This extension should be used to denote when a genetic finding is being shared as a secondary finding, and ideally refer to a corresponding guideline or policy statement.
For more detail, please see:
https://ghr.nlm.nih.gov/primer/testing/secondaryfindings URL: http://hl7.org/fhir/StructureDefinition/observation-secondaryFinding Binding: GeneticObservationSecondaryFindings (extensible): Codes to denote a guideline or policy statement when a genetic test result is being shared as a secondary finding. ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
body-structure | 0..1 | Reference(BodyStructure) | Target anatomic location or structure URL: http://hl7.org/fhir/StructureDefinition/bodySite ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
workflow-relatedArtifact | 0..* | RelatedArtifact | Documentation relevant to the 'parent' resource URL: http://hl7.org/fhir/StructureDefinition/workflow-relatedArtifact ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?! | 0..* | Extension | Extensions that cannot be ignored ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
status | ?!Σ | 1..1 | code | registered | preliminary | final | amended + Binding: ObservationStatus (required): Codes providing the status of an observation. ele-1: All FHIR elements must have a @value or children |
Slices for category | 2..* | CodeableConcept | Classification of type of observation Slice: Unordered, Open by value:coding Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. ele-1: All FHIR elements must have a @value or children | |
category:labCategory | 1..1 | CodeableConcept | Classification of type of observation Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. ele-1: All FHIR elements must have a @value or children | |
coding | Σ | 1..1 | Coding | Code defined by a terminology system ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://terminology.hl7.org/CodeSystem/observation-category | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: laboratory | |
category:geCategory | 1..1 | CodeableConcept | Classification of type of observation Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. ele-1: All FHIR elements must have a @value or children | |
coding | Σ | 1..1 | Coding | Code defined by a terminology system ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://terminology.hl7.org/CodeSystem/v2-0074 | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: GE | |
code | Σ | 1..1 | CodeableConcept | molecular-consequence Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: molecular-consequence | |
Slices for derivedFrom | Σ | 1..* | Reference(DocumentReference | ImagingStudy | Media | QuestionnaireResponse | Observation | MolecularSequence) | Related measurements the observation is made from Slice: Unordered, Open by profile:resolve() ele-1: All FHIR elements must have a @value or children |
derivedFrom:variant | Σ | 0..* | Reference(Variant) | Variant the implication is derived from ele-1: All FHIR elements must have a @value or children |
derivedFrom:genotype | Σ | 0..* | Reference(Genotype) | Genotype the implication is derived from ele-1: All FHIR elements must have a @value or children |
derivedFrom:haplotype | Σ | 0..* | Reference(Haplotype) | Haplotype the implication is derived from ele-1: All FHIR elements must have a @value or children |
derivedFrom:biomarker | Σ | 0..* | Reference(Molecular Biomarker) | MolecularBiomarker the implication is derived from ele-1: All FHIR elements must have a @value or children |
Slices for component | Σ | 0..* | BackboneElement | Component results Slice: Unordered, Open by value:code ele-1: All FHIR elements must have a @value or children |
component:All Slices | Content/Rules for all slices | |||
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | Type of component observation (code / type) Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children |
component:conclusion-string | Σ | 0..1 | BackboneElement | Clinical Conclusion ele-1: All FHIR elements must have a @value or children |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | conclusion-string Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: conclusion-string | |
component:evidence-level | Σ | 0..* | BackboneElement | Level of Evidence ele-1: All FHIR elements must have a @value or children |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | 93044-6 Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 93044-6 | |
value[x] | Σ | 1..1 | CodeableConcept | 1A | 1B | 2A | 2B | 3 | 4 | 4-star | 3-star | 2-star | 1-star | no-star Binding: Evidence Level Examples (example): PharmGKB or ClinVar ele-1: All FHIR elements must have a @value or children |
component:clinical-significance | Σ | 0..1 | BackboneElement | Clinical significance ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | 53037-8 Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 53037-8 | |
value[x] | Σ | 1..1 | CodeableConcept | Pathogenic | Likely pathogenic | Uncertain significance | Likely benign | Benign Binding: LOINC Answer List LL4034-6 (example) ele-1: All FHIR elements must have a @value or children |
component:coding-hgvs | Σ | 0..1 | BackboneElement | DNA change (c.HGVS) ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | 48004-6 Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48004-6 | |
value[x] | Σ | 1..1 | CodeableConcept | A valid HGVS-formatted 'c.' string, e.g. NM_005228.5:c.2369C>T. Binding: Human Genome Variation Society (HGVS) Nomenclature (required) ele-1: All FHIR elements must have a @value or children |
component:transcript-ref-seq | Σ | 0..1 | BackboneElement | Reference Transcript ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | 51958-7 Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 51958-7 | |
value[x] | Σ | 1..1 | CodeableConcept | Versioned transcript reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) ele-1: All FHIR elements must have a @value or children |
component:protein-hgvs | Σ | 0..1 | BackboneElement | Protein (Amino Acid) Change - pHGVS ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | 48005-3 Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48005-3 | |
value[x] | Σ | 1..1 | CodeableConcept | A valid HGVS-formatted 'p.' string, e.g. NP_000050.2:p.(Asn1836Lys) Binding: Human Genome Variation Society (HGVS) Nomenclature (required) ele-1: All FHIR elements must have a @value or children |
component:protein-ref-seq | Σ | 0..1 | BackboneElement | Protein Reference Sequence ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | protein-ref-seq Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: protein-ref-seq | |
value[x] | Σ | 1..1 | CodeableConcept | Versioned protein reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) ele-1: All FHIR elements must have a @value or children |
component:feature-consequence | Σ | 0..* | BackboneElement | Feature Consequence ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | feature-consequence Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: feature-consequence | |
value[x] | Σ | 1..1 | CodeableConcept | stop_lost | stop_gained | inframe_insertion | frameshift_variant | ... (many) Binding: Molecular Consequence Value Set (extensible): Concepts in sequence ontology under SO:0001537. ele-1: All FHIR elements must have a @value or children |
component:functional-effect | Σ | 0..1 | BackboneElement | Functional Effect ele-1: All FHIR elements must have a @value or children |
Slices for extension | Content/Rules for all slices | |||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both | |
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized ele-1: All FHIR elements must have a @value or children ext-1: Must have either extensions or value[x], not both |
code | Σ | 1..1 | CodeableConcept | functional-effect Binding: LOINCCodes (example): Codes identifying names of simple observations. ele-1: All FHIR elements must have a @value or children Required Pattern: At least the following |
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: functional-effect | |
value[x] | Σ | 1..1 | CodeableConcept | gain of function | loss of function | loss of heterozygosity | decreased transcript level | increased transcipt level | dominant negative variant | ... (more) Binding: Functional Effect Value Set (extensible): Sequence Ontology terms under SO:0001536 ele-1: All FHIR elements must have a @value or children |
Documentation for this format |
Path | Conformance | ValueSet / Code | URI |
Observation.status | required | ObservationStatushttp://hl7.org/fhir/ValueSet/observation-status|4.0.1 from the FHIR Standard | |
Observation.category | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | |
Observation.category:labCategory | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | |
Observation.category:geCategory | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | |
Observation.code | example | Pattern: molecular-consequencehttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component.code | example | LOINCCodes (a valid code from LOINC)http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:conclusion-string.code | example | Pattern: conclusion-stringhttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:evidence-level.code | example | Pattern: LOINC Code 93044-6http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:evidence-level.value[x] | example | EvidenceLevelExampleVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/evidence-level-example-vs from this IG | |
Observation.component:clinical-significance.code | example | Pattern: LOINC Code 53037-8http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:clinical-significance.value[x] | example | LOINC LL4034-6http://loinc.org/vs/LL4034-6 | |
Observation.component:coding-hgvs.code | example | Pattern: LOINC Code 48004-6http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:coding-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | |
Observation.component:transcript-ref-seq.code | example | Pattern: LOINC Code 51958-7http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:transcript-ref-seq.value[x] | example | ||
Observation.component:protein-hgvs.code | example | Pattern: LOINC Code 48005-3http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:protein-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | |
Observation.component:protein-ref-seq.code | example | Pattern: protein-ref-seqhttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:protein-ref-seq.value[x] | example | ||
Observation.component:feature-consequence.code | example | Pattern: feature-consequencehttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:feature-consequence.value[x] | extensible | MolecularConsequenceVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/molecular-consequence-vs from this IG | |
Observation.component:functional-effect.code | example | Pattern: functional-effecthttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | |
Observation.component:functional-effect.value[x] | extensible | FunctionalEffectVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/functional-effect-vs from this IG |
Id | Grade | Path(s) | Details | Requirements |
dom-2 | error | Observation | If the resource is contained in another resource, it SHALL NOT contain nested Resources : contained.contained.empty() | |
dom-3 | error | Observation | If the resource is contained in another resource, it SHALL be referred to from elsewhere in the resource or SHALL refer to the containing resource : contained.where((('#'+id in (%resource.descendants().reference | %resource.descendants().as(canonical) | %resource.descendants().as(uri) | %resource.descendants().as(url))) or descendants().where(reference = '#').exists() or descendants().where(as(canonical) = '#').exists() or descendants().where(as(canonical) = '#').exists()).not()).trace('unmatched', id).empty() | |
dom-4 | error | Observation | If a resource is contained in another resource, it SHALL NOT have a meta.versionId or a meta.lastUpdated : contained.meta.versionId.empty() and contained.meta.lastUpdated.empty() | |
dom-5 | error | Observation | If a resource is contained in another resource, it SHALL NOT have a security label : contained.meta.security.empty() | |
dom-6 | best practice | Observation | A resource should have narrative for robust management : text.`div`.exists() | |
ele-1 | error | **ALL** elements | All FHIR elements must have a @value or children : hasValue() or (children().count() > id.count()) | |
ext-1 | error | **ALL** extensions | Must have either extensions or value[x], not both : extension.exists() != value.exists() | |
obs-6 | error | Observation | dataAbsentReason SHALL only be present if Observation.value[x] is not present : dataAbsentReason.empty() or value.empty() | |
obs-7 | error | Observation | If Observation.code is the same as an Observation.component.code then the value element associated with the code SHALL NOT be present : value.empty() or component.code.where(coding.intersect(%resource.code.coding).exists()).empty() |
Snapshot View
Name | Flags | Card. | Type | Description & Constraints | ||||
---|---|---|---|---|---|---|---|---|
Observation | C | 0..* | GenomicImplication | Molecular Consequence obs-6: dataAbsentReason SHALL only be present if Observation.value[x] is not present obs-7: If Observation.code is the same as an Observation.component.code then the value element associated with the code SHALL NOT be present | ||||
id | Σ | 0..1 | id | Logical id of this artifact | ||||
meta | Σ | 0..1 | Meta | Metadata about the resource | ||||
implicitRules | ?!Σ | 0..1 | uri | A set of rules under which this content was created | ||||
language | 0..1 | code | Language of the resource content Binding: CommonLanguages (preferred): A human language.
| |||||
text | 0..1 | Narrative | Text summary of the resource, for human interpretation | |||||
contained | 0..* | Resource | Contained, inline Resources | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
secondary-finding | 0..1 | CodeableConcept | Secondary findings are genetic test results that provide information about variants in a gene unrelated to the primary purpose for the testing, most often discovered when [Whole Exome Sequencing (WES)](https://en.wikipedia.org/wiki/Exome_sequencing) or [Whole Genome Sequencing (WGS)](https://en.wikipedia.org/wiki/Whole_genome_sequencing) is performed. This extension should be used to denote when a genetic finding is being shared as a secondary finding, and ideally refer to a corresponding guideline or policy statement.
For more detail, please see:
https://ghr.nlm.nih.gov/primer/testing/secondaryfindings URL: http://hl7.org/fhir/StructureDefinition/observation-secondaryFinding Binding: GeneticObservationSecondaryFindings (extensible): Codes to denote a guideline or policy statement when a genetic test result is being shared as a secondary finding. | |||||
body-structure | 0..1 | Reference(BodyStructure) | Target anatomic location or structure URL: http://hl7.org/fhir/StructureDefinition/bodySite | |||||
workflow-relatedArtifact | 0..* | RelatedArtifact | Documentation relevant to the 'parent' resource URL: http://hl7.org/fhir/StructureDefinition/workflow-relatedArtifact | |||||
modifierExtension | ?! | 0..* | Extension | Extensions that cannot be ignored | ||||
identifier | Σ | 0..* | Identifier | Business Identifier for observation | ||||
basedOn | Σ | 0..* | Reference(CarePlan | DeviceRequest | ImmunizationRecommendation | MedicationRequest | NutritionOrder | ServiceRequest) | Fulfills plan, proposal or order | ||||
partOf | Σ | 0..* | Reference(MedicationAdministration | MedicationDispense | MedicationStatement | Procedure | Immunization | ImagingStudy | Genomic Study) | Part of referenced event | ||||
status | ?!Σ | 1..1 | code | registered | preliminary | final | amended + Binding: ObservationStatus (required): Codes providing the status of an observation. | ||||
Slices for category | 2..* | CodeableConcept | Classification of type of observation Slice: Unordered, Open by value:coding Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. | |||||
category:labCategory | 1..1 | CodeableConcept | Classification of type of observation Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations Slice: Unordered, Open by value:url | |||||
coding | Σ | 1..1 | Coding | Code defined by a terminology system Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://terminology.hl7.org/CodeSystem/observation-category | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: laboratory | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | Σ | 0..1 | string | Plain text representation of the concept | ||||
category:geCategory | 1..1 | CodeableConcept | Classification of type of observation Binding: ObservationCategoryCodes (preferred): Codes for high level observation categories. | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations Slice: Unordered, Open by value:url | |||||
coding | Σ | 1..1 | Coding | Code defined by a terminology system Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://terminology.hl7.org/CodeSystem/v2-0074 | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: GE | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | Σ | 0..1 | string | Plain text representation of the concept | ||||
code | Σ | 1..1 | CodeableConcept | molecular-consequence Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: molecular-consequence | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
subject | Σ | 0..1 | Reference(Patient | Group | Device | Location) | Who and/or what the observation is about | ||||
focus | Σ | 0..* | Reference(Resource) | What the observation is about, when it is not about the subject of record | ||||
encounter | Σ | 0..1 | Reference(Encounter) | Healthcare event during which this observation is made | ||||
effective[x] | Σ | 0..1 | Clinically relevant time/time-period for observation | |||||
effectiveDateTime | dateTime | |||||||
effectivePeriod | Period | |||||||
effectiveTiming | Timing | |||||||
effectiveInstant | instant | |||||||
issued | Σ | 0..1 | instant | Date/Time this version was made available | ||||
performer | Σ | 0..* | Reference(Practitioner | PractitionerRole | Organization | CareTeam | Patient | RelatedPerson) | Who is responsible for the observation | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
note | 0..* | CodedAnnotation | Comments about the Observation that also contain a coded type | |||||
bodySite | 0..1 | CodeableConcept | Observed body part Binding: SNOMEDCTBodyStructures (example): Codes describing anatomical locations. May include laterality. | |||||
method | 0..1 | CodeableConcept | How it was done Binding: ObservationMethods (example): Methods for simple observations. | |||||
specimen | 0..1 | Reference(Specimen) | Specimen used for this observation | |||||
device | 0..1 | Reference(Device | DeviceMetric) | (Measurement) Device | |||||
referenceRange | C | 0..* | BackboneElement | Provides guide for interpretation obs-3: Must have at least a low or a high or text | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
low | C | 0..1 | SimpleQuantity | Low Range, if relevant | ||||
high | C | 0..1 | SimpleQuantity | High Range, if relevant | ||||
type | 0..1 | CodeableConcept | Reference range qualifier Binding: ObservationReferenceRangeMeaningCodes (preferred): Code for the meaning of a reference range. | |||||
appliesTo | 0..* | CodeableConcept | Reference range population Binding: ObservationReferenceRangeAppliesToCodes (example): Codes identifying the population the reference range applies to. | |||||
age | 0..1 | Range | Applicable age range, if relevant | |||||
text | 0..1 | string | Text based reference range in an observation | |||||
hasMember | Σ | 0..* | Reference(Observation | QuestionnaireResponse | MolecularSequence) | Related resource that belongs to the Observation group | ||||
Slices for derivedFrom | Σ | 1..* | Reference(DocumentReference | ImagingStudy | Media | QuestionnaireResponse | Observation | MolecularSequence) | Related measurements the observation is made from Slice: Unordered, Open by profile:resolve() | ||||
derivedFrom:variant | Σ | 0..* | Reference(Variant) | Variant the implication is derived from | ||||
derivedFrom:genotype | Σ | 0..* | Reference(Genotype) | Genotype the implication is derived from | ||||
derivedFrom:haplotype | Σ | 0..* | Reference(Haplotype) | Haplotype the implication is derived from | ||||
derivedFrom:biomarker | Σ | 0..* | Reference(Molecular Biomarker) | MolecularBiomarker the implication is derived from | ||||
Slices for component | Σ | 0..* | BackboneElement | Component results Slice: Unordered, Open by value:code | ||||
component:All Slices | Content/Rules for all slices | |||||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | Type of component observation (code / type) Binding: LOINCCodes (example): Codes identifying names of simple observations. | ||||
value[x] | Σ | 0..1 | Actual component result | |||||
valueQuantity | Quantity | |||||||
valueCodeableConcept | CodeableConcept | |||||||
valueString | string | |||||||
valueBoolean | boolean | |||||||
valueInteger | integer | |||||||
valueRange | Range | |||||||
valueRatio | Ratio | |||||||
valueSampledData | SampledData | |||||||
valueTime | time | |||||||
valueDateTime | dateTime | |||||||
valuePeriod | Period | |||||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:conclusion-string | Σ | 0..1 | BackboneElement | Clinical Conclusion | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | conclusion-string Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: conclusion-string | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 0..1 | string | Summary conclusion (interpretation/impression) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:evidence-level | Σ | 0..* | BackboneElement | Level of Evidence | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | 93044-6 Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 93044-6 | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | 1A | 1B | 2A | 2B | 3 | 4 | 4-star | 3-star | 2-star | 1-star | no-star Binding: Evidence Level Examples (example): PharmGKB or ClinVar | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:clinical-significance | Σ | 0..1 | BackboneElement | Clinical significance | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | 53037-8 Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 53037-8 | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | Pathogenic | Likely pathogenic | Uncertain significance | Likely benign | Benign Binding: LOINC Answer List LL4034-6 (example) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:coding-hgvs | Σ | 0..1 | BackboneElement | DNA change (c.HGVS) | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | 48004-6 Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48004-6 | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | A valid HGVS-formatted 'c.' string, e.g. NM_005228.5:c.2369C>T. Binding: Human Genome Variation Society (HGVS) Nomenclature (required) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:transcript-ref-seq | Σ | 0..1 | BackboneElement | Reference Transcript | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | 51958-7 Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 51958-7 | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | Versioned transcript reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:protein-hgvs | Σ | 0..1 | BackboneElement | Protein (Amino Acid) Change - pHGVS | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | 48005-3 Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://loinc.org | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: 48005-3 | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | A valid HGVS-formatted 'p.' string, e.g. NP_000050.2:p.(Asn1836Lys) Binding: Human Genome Variation Society (HGVS) Nomenclature (required) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:protein-ref-seq | Σ | 0..1 | BackboneElement | Protein Reference Sequence | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | protein-ref-seq Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: protein-ref-seq | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | Versioned protein reference sequence identifier Binding Description (No ValueSet): (example): Multiple bindings acceptable (NCBI or LRG) | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:feature-consequence | Σ | 0..* | BackboneElement | Feature Consequence | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | feature-consequence Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: feature-consequence | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | stop_lost | stop_gained | inframe_insertion | frameshift_variant | ... (many) Binding: Molecular Consequence Value Set (extensible): Concepts in sequence ontology under SO:0001537. | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
component:functional-effect | Σ | 0..1 | BackboneElement | Functional Effect | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
Slices for extension | 0..* | Extension | Extension Slice: Unordered, Open by value:url | |||||
workflow-relatedArtifactComponent | 0..* | RelatedArtifact | Related Artifact for Observation component URL: http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/workflow-relatedArtifactComponent | |||||
modifierExtension | ?!Σ | 0..* | Extension | Extensions that cannot be ignored even if unrecognized | ||||
code | Σ | 1..1 | CodeableConcept | functional-effect Binding: LOINCCodes (example): Codes identifying names of simple observations. Required Pattern: At least the following | ||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
coding | 1..* | Coding | Code defined by a terminology system Fixed Value: (complex) | |||||
id | 0..1 | string | Unique id for inter-element referencing | |||||
extension | 0..* | Extension | Additional content defined by implementations | |||||
system | 1..1 | uri | Identity of the terminology system Fixed Value: http://hl7.org/fhir/uv/genomics-reporting/CodeSystem/tbd-codes-cs | |||||
version | 0..1 | string | Version of the system - if relevant | |||||
code | 1..1 | code | Symbol in syntax defined by the system Fixed Value: functional-effect | |||||
display | 0..1 | string | Representation defined by the system | |||||
userSelected | 0..1 | boolean | If this coding was chosen directly by the user | |||||
text | 0..1 | string | Plain text representation of the concept | |||||
value[x] | Σ | 1..1 | CodeableConcept | gain of function | loss of function | loss of heterozygosity | decreased transcript level | increased transcipt level | dominant negative variant | ... (more) Binding: Functional Effect Value Set (extensible): Sequence Ontology terms under SO:0001536 | ||||
dataAbsentReason | C | 0..1 | CodeableConcept | Why the component result is missing Binding: DataAbsentReason (extensible): Codes specifying why the result (Observation.value[x]) is missing. | ||||
interpretation | 0..* | CodeableConcept | High, low, normal, etc. Binding: ObservationInterpretationCodes (extensible): Codes identifying interpretations of observations. | |||||
referenceRange | 0..* | See referenceRange (Observation) | Provides guide for interpretation of component result | |||||
Documentation for this format |
Path | Conformance | ValueSet / Code | URI | |||
Observation.language | preferred | CommonLanguageshttp://hl7.org/fhir/ValueSet/languages from the FHIR Standard
| ||||
Observation.status | required | ObservationStatushttp://hl7.org/fhir/ValueSet/observation-status|4.0.1 from the FHIR Standard | ||||
Observation.category | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | ||||
Observation.category:labCategory | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | ||||
Observation.category:geCategory | preferred | ObservationCategoryCodeshttp://hl7.org/fhir/ValueSet/observation-category from the FHIR Standard | ||||
Observation.code | example | Pattern: molecular-consequencehttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.bodySite | example | SNOMEDCTBodyStructureshttp://hl7.org/fhir/ValueSet/body-site from the FHIR Standard | ||||
Observation.method | example | ObservationMethodshttp://hl7.org/fhir/ValueSet/observation-methods from the FHIR Standard | ||||
Observation.referenceRange.type | preferred | ObservationReferenceRangeMeaningCodeshttp://hl7.org/fhir/ValueSet/referencerange-meaning from the FHIR Standard | ||||
Observation.referenceRange.appliesTo | example | ObservationReferenceRangeAppliesToCodeshttp://hl7.org/fhir/ValueSet/referencerange-appliesto from the FHIR Standard | ||||
Observation.component.code | example | LOINCCodes (a valid code from LOINC)http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:conclusion-string.code | example | Pattern: conclusion-stringhttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:conclusion-string.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:conclusion-string.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:evidence-level.code | example | Pattern: LOINC Code 93044-6http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:evidence-level.value[x] | example | EvidenceLevelExampleVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/evidence-level-example-vs from this IG | ||||
Observation.component:evidence-level.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:evidence-level.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:clinical-significance.code | example | Pattern: LOINC Code 53037-8http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:clinical-significance.value[x] | example | LOINC LL4034-6http://loinc.org/vs/LL4034-6 | ||||
Observation.component:clinical-significance.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:clinical-significance.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:coding-hgvs.code | example | Pattern: LOINC Code 48004-6http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:coding-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | ||||
Observation.component:coding-hgvs.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:coding-hgvs.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:transcript-ref-seq.code | example | Pattern: LOINC Code 51958-7http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:transcript-ref-seq.value[x] | example | |||||
Observation.component:transcript-ref-seq.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:transcript-ref-seq.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:protein-hgvs.code | example | Pattern: LOINC Code 48005-3http://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:protein-hgvs.value[x] | required | HGVSVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/hgvs-vs from this IG | ||||
Observation.component:protein-hgvs.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:protein-hgvs.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:protein-ref-seq.code | example | Pattern: protein-ref-seqhttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:protein-ref-seq.value[x] | example | |||||
Observation.component:protein-ref-seq.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:protein-ref-seq.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:feature-consequence.code | example | Pattern: feature-consequencehttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:feature-consequence.value[x] | extensible | MolecularConsequenceVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/molecular-consequence-vs from this IG | ||||
Observation.component:feature-consequence.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:feature-consequence.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard | ||||
Observation.component:functional-effect.code | example | Pattern: functional-effecthttp://hl7.org/fhir/ValueSet/observation-codes from the FHIR Standard | ||||
Observation.component:functional-effect.value[x] | extensible | FunctionalEffectVShttp://hl7.org/fhir/uv/genomics-reporting/ValueSet/functional-effect-vs from this IG | ||||
Observation.component:functional-effect.dataAbsentReason | extensible | DataAbsentReasonhttp://hl7.org/fhir/ValueSet/data-absent-reason from the FHIR Standard | ||||
Observation.component:functional-effect.interpretation | extensible | ObservationInterpretationCodeshttp://hl7.org/fhir/ValueSet/observation-interpretation from the FHIR Standard |
Id | Grade | Path(s) | Details | Requirements |
dom-2 | error | Observation | If the resource is contained in another resource, it SHALL NOT contain nested Resources : contained.contained.empty() | |
dom-3 | error | Observation | If the resource is contained in another resource, it SHALL be referred to from elsewhere in the resource or SHALL refer to the containing resource : contained.where((('#'+id in (%resource.descendants().reference | %resource.descendants().as(canonical) | %resource.descendants().as(uri) | %resource.descendants().as(url))) or descendants().where(reference = '#').exists() or descendants().where(as(canonical) = '#').exists() or descendants().where(as(canonical) = '#').exists()).not()).trace('unmatched', id).empty() | |
dom-4 | error | Observation | If a resource is contained in another resource, it SHALL NOT have a meta.versionId or a meta.lastUpdated : contained.meta.versionId.empty() and contained.meta.lastUpdated.empty() | |
dom-5 | error | Observation | If a resource is contained in another resource, it SHALL NOT have a security label : contained.meta.security.empty() | |
dom-6 | best practice | Observation | A resource should have narrative for robust management : text.`div`.exists() | |
ele-1 | error | **ALL** elements | All FHIR elements must have a @value or children : hasValue() or (children().count() > id.count()) | |
ext-1 | error | **ALL** extensions | Must have either extensions or value[x], not both : extension.exists() != value.exists() | |
obs-3 | error | Observation.referenceRange | Must have at least a low or a high or text : low.exists() or high.exists() or text.exists() | |
obs-6 | error | Observation | dataAbsentReason SHALL only be present if Observation.value[x] is not present : dataAbsentReason.empty() or value.empty() | |
obs-7 | error | Observation | If Observation.code is the same as an Observation.component.code then the value element associated with the code SHALL NOT be present : value.empty() or component.code.where(coding.intersect(%resource.code.coding).exists()).empty() |
This structure is derived from GenomicImplication
Other representations of profile: CSV, Excel, Schematron
