Data Exchange

Introduction

Clinical Quality Measures (CQMs) are a common tool used throughout healthcare to help evaluate and understand the impact and quality of the care being provided to an individual or population. The intent of data of interest is the source data needed to calculate a quality measure, as specified by the data requirements of the measure. For example, for a colorectal cancer screening measure, the data of interest is the set of conditions, procedures, and observations related to determining whether a patient is in the initial population, denominator, and numerator of the quality measure. To effectively evaluate quality measures in such an environment requires timely exchange of the relevant data.

Transactions between Consumers (organizations that want to evaluate quality measures) and Producers (organizations that deliver care to patients) are triggered by use case specific clinical or administrative events such as the completion of a Medication Reconciliation or a request from a Payer for the attestation information. Note that although triggering is implementation specific and out of scope for this IG, there are a variety of potential triggering points for reporting events within clinical systems. These include:

• Infobutton event listing
• eCR Event Types
• CDS Hooks Hook definitions
• CPG-on-FHIR common processes

and there will be a need to convey triggering information in a computable way to EHRs and other clinical systems.

This Implementation Guide (IG) describes three methods of exchanging data quality information using a set of FHIR operations that provide the framework to exchange CQM data:

1. CQM data may be submitted to the Consumer by the Producer using the Submit Data scenario
2. CQM data may be requested from the Producer by the Consumer using the Collect Data scenario

Note that FHIR operations allow the implementation to be viewed as a ‘black box’ free to decide how to satisfy the query - “give me the data of interest for a measure” - without requiring generic FHIR search functionality.

This project recognizes the impact of the Argonaut Clinical Data Subscriptions project which is working on event based subscriptions and major revisions to the Subscription resource for FHIR R5. In a future version this guide, a subscription based exchange is planned and will align with the outcomes of the Argonaut project.

Default Profiles

The following resources are used in all data exchange transactions:

Depending on the specific Measure, various DEQM and QI Core Profiles are also used in addition to the profiles listed above

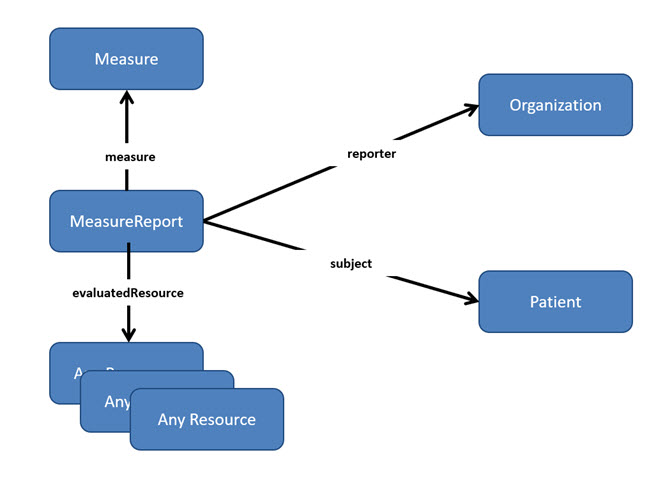

Graph of DEQM Resources

The DEQM resources form a network through their relationships with each other - either through a direct reference to another resource or through a chain of intermediate references. These groups of resources are referred to as resources graphs. The DEQM data exchange resource graph is shown in Figure 2-1:

Submit Data

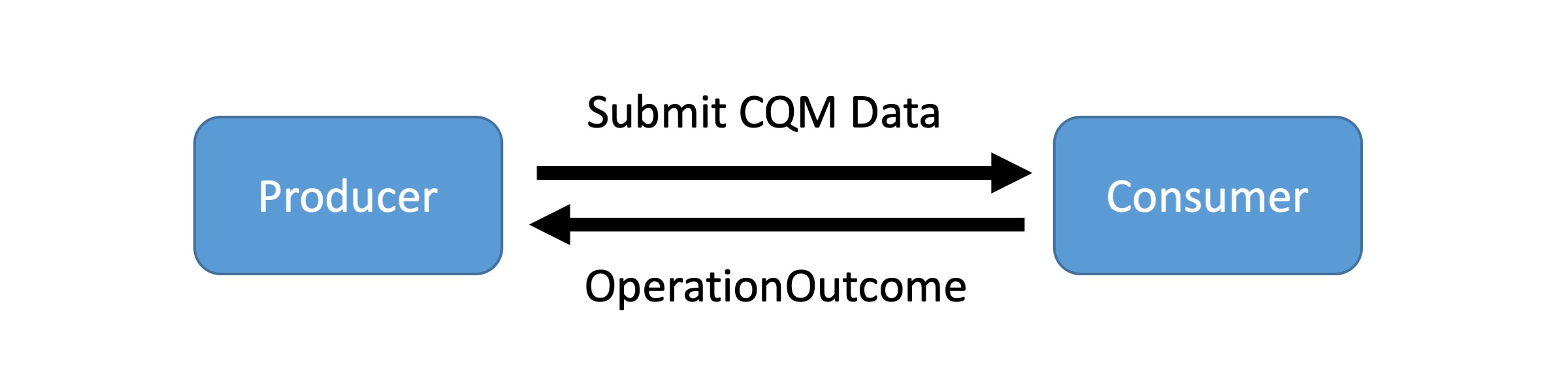

The $submit-data operation allows a Producer to submit data of interest for a particular quality measure within the specified submission period. The operation MAY be repeated during the submission period as additional data relevant to the quality measure becomes available. The Producer submits the data either as incremental or snapshot updates. These update methods are described in detail below.

Alternatively, data may be submitted in bulk with the $bulk-submit-data operation. This supports both synchronous and asynchronous messaging as described in the operation definition.

Gather Data Requirements from Consumer

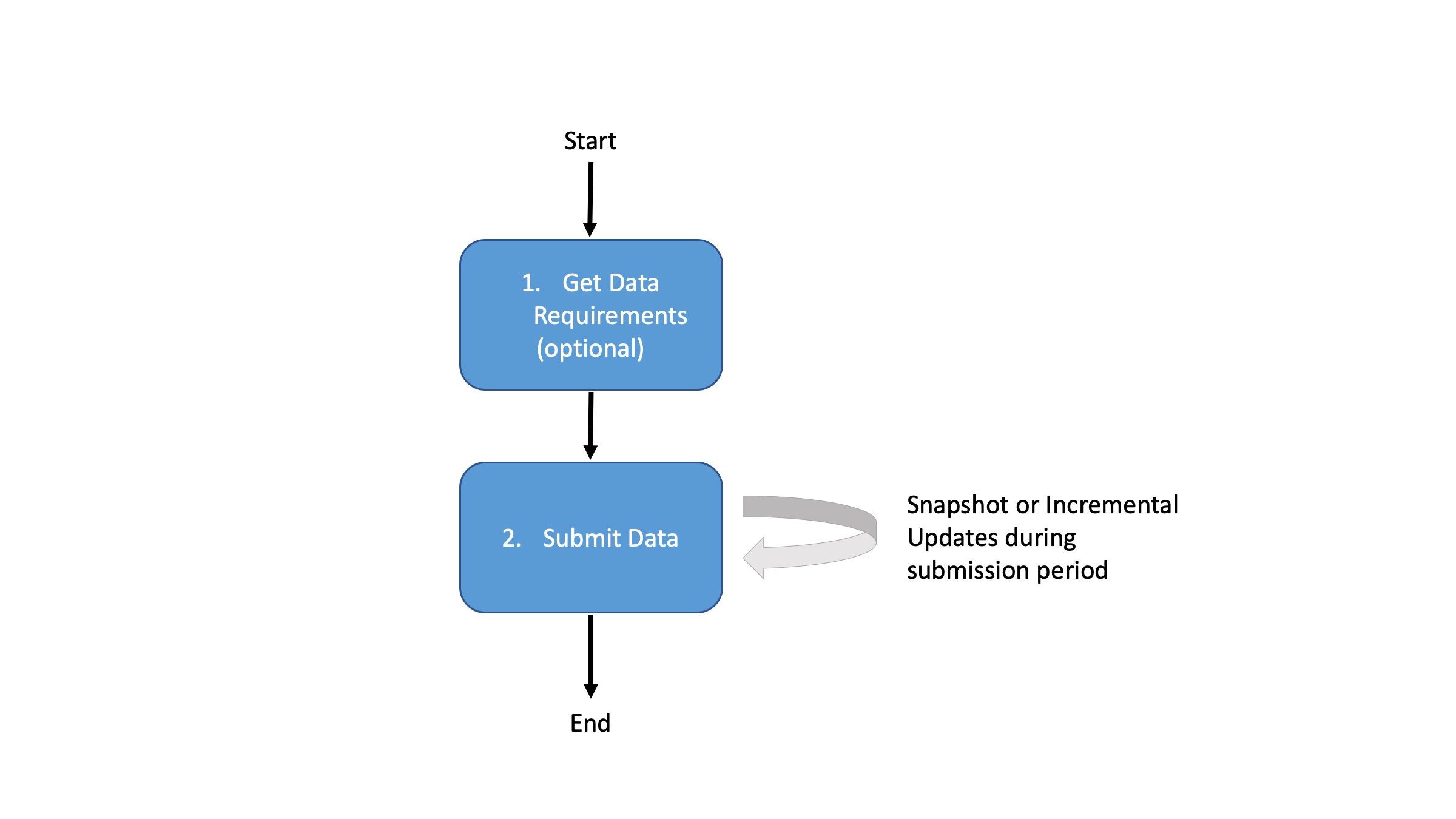

To support the Submit Data operation, an implementation needs to know specifically what data are required to provide as the payload for the operation. As described in the Background section of this guide, the profiles used in measuring and reporting CQMs are developed through a multi-stakeholder consensus-based process and are made available to the Producer. The Producer is able to query for profiles needed for reporting a given measure and the criteria for the sending of the data. This can be done manually by reviewing the measure definition or computationally by invoking the Data Requirements operation on a Consumer’s measure instance endpoint as described below. These profiles are subsequently referenced in the MeasureReport.evaluatedResources element when submitting the measure data to the Consumer.

Note that because the data exchange scenarios described are intended to support exchange throughout a measurement period, the versions of measure specifications may change during the measurement period. Care should be taken to ensure the appropriate versioning of measure specifications and the impact of those changes on data exchanged using these methods

APIs

In addition to the resources listed above, the following artifacts are used in this transaction:

1. Data Requirements: $data-requirements operation

Usage

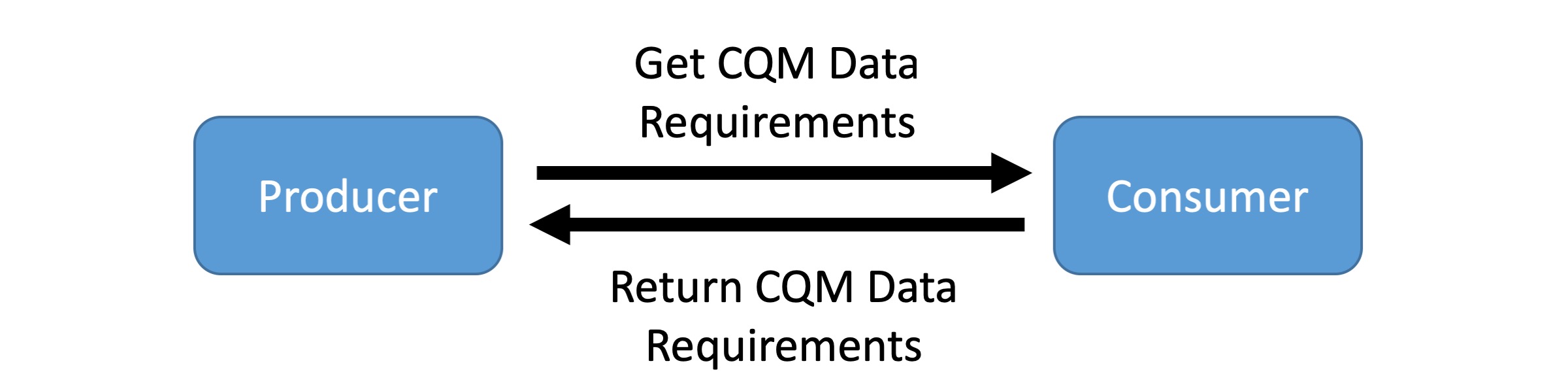

The required data for each Measure is discovered by invoking the Data Requirements operation on the Consumer’s Measure/[measure-id] endpoint. Using either the GET or POST Syntax, the operation can be invoked as follows:

GET|[base]/Measure/[measure-id]/$data-requirements?periodStart={periodStart}&periodEnd={periodEnd}

POST|[base]/Measure/[measure-id]/$data-requirements

Note the use of the periodStart and periodEnd parameters supports description of data requirements that filter based on the measurement period. For example, a measure may require data for a certain procedure within the last three years, and the data requirements returned will reflect that period.

Standard error responses to the Data Collection operation transactions including appropriate http response codes are documented in the FHIR specification for operation behavior.

Click Here To See Example Data Requirements operation

{
   "resourceType":"Parameters",
   "parameter":[
      {
         "name":"periodStart",
         "valueDate":"2018"
      },
      {
         "name":"periodEnd",
         "valueDate":"2018"
      }
    ]
 }

HTTP/1.1 200 OK
[other headers]

{
  "resourceType" : "Library",
  "id" : "library-mrp-example",
  "meta" : {
    "source" : "http://example.org/fhir/server"
  },
  "text" : {
    "status" : "generated",
    "div" : "<div xmlns=\"http://www.w3.org/1999/xhtml\"><h2>Data Requirements</h2><table class=\"grid\"><tr><td colspan=\"2\"><b>Type</b>: <a href=\"http://hl7.org/fhir/R4/measurereport.html\">MeasureReport</a> (<a href=\"StructureDefinition-datax-measurereport-deqm.html\">DEQM Data Exchange MeasureReport Profile</a>)</td></tr></table><table class=\"grid\"><tr><td colspan=\"2\"><b>Type</b>: <a href=\"http://hl7.org/fhir/R4/patient.html\">Patient</a> (<a href=\"http://hl7.org/fhir/us/qicore/STU5/StructureDefinition-qicore-patient.html\">QICore Patient</a>)</td></tr></table><table class=\"grid\"><tr><td colspan=\"2\"><b>Type</b>: <a href=\"http://hl7.org/fhir/R4/encounter.html\">Encounter</a> (<a href=\"http://hl7.org/fhir/us/qicore/STU5/StructureDefinition-qicore-encounter.html\">QICore Encounter</a>)</td></tr></table><table class=\"grid\"><tr><td colspan=\"2\"><b>Type</b>: <a href=\"http://hl7.org/fhir/R4/location.html\">Location</a> (<a href=\"http://hl7.org/fhir/us/qicore/STU5/StructureDefinition-qicore-location.html\">QICore Location</a>)</td></tr></table><table class=\"grid\"><tr><td colspan=\"2\"><b>Type</b>: <a href=\"http://hl7.org/fhir/R4/task.html\">Task</a> (<a href=\"http://hl7.org/fhir/us/qicore/STU5/StructureDefinition-qicore-task.html\">QICore Task</a>)</td></tr></table><table class=\"grid\"><tr><td colspan=\"2\"><b>Type</b>: <a href=\"http://hl7.org/fhir/R4/organization.html\">Organization</a> (<a href=\"http://hl7.org/fhir/us/qicore/STU5/StructureDefinition-qicore-organization.html\">QICore Organization</a>)</td></tr></table><table class=\"grid\"><tr><td colspan=\"2\"><b>Type</b>: <a href=\"http://hl7.org/fhir/R4/practitioner.html\">Practitioner</a> (<a href=\"http://hl7.org/fhir/us/qicore/STU5/StructureDefinition-qicore-practitioner.html\">QICore Practitioner</a>)</td></tr></table><h2>Contents</h2></div>"
  },
  "extension" : [{
    "url" : "http://hl7.org/fhir/StructureDefinition/structuredefinition-wg",
    "valueCode" : "cqi"
  }],
  "url" : "http://hl7.org/fhir/us/davinci-deqm/Library/library-mrp-example",
  "version" : "4.0.0",
  "name" : "DEQMLibraryMRPExample",
  "title" : "DEQM Library MRP Example",
  "status" : "active",
  "type" : {
    "coding" : [{
      "system" : "http://terminology.hl7.org/CodeSystem/library-type",
      "code" : "module-definition"
    }]
  },
  "date" : "2023-10-03T16:11:14+00:00",
  "publisher" : "HL7 International / Clinical Quality Information",
  "contact" : [{
    "telecom" : [{
      "system" : "url",
      "value" : "http://www.hl7.org/Special/committees/cqi"
    }]
  }],
  "description" : "Example Library resource to demonstrate the framework for MRP",
  "jurisdiction" : [{
    "coding" : [{
      "system" : "urn:iso:std:iso:3166",
      "code" : "US"
    }]
  }],
  "dataRequirement" : [{
    "type" : "MeasureReport",
    "profile" : ["http://hl7.org/fhir/us/davinci-deqm/StructureDefinition/datax-measurereport-deqm"]
  },
  {
    "type" : "Patient",
    "profile" : ["http://hl7.org/fhir/us/qicore/StructureDefinition/qicore-patient"]
  },
  {
    "type" : "Encounter",
    "profile" : ["http://hl7.org/fhir/us/qicore/StructureDefinition/qicore-encounter"]
  },
  {
    "type" : "Location",
    "profile" : ["http://hl7.org/fhir/us/qicore/StructureDefinition/qicore-location"]
  },
  {
    "type" : "Task",
    "profile" : ["http://hl7.org/fhir/us/qicore/StructureDefinition/qicore-task"]
  },
  {
    "type" : "Organization",
    "profile" : ["http://hl7.org/fhir/us/qicore/StructureDefinition/qicore-organization"]
  },
  {
    "type" : "Practitioner",
    "profile" : ["http://hl7.org/fhir/us/qicore/StructureDefinition/qicore-practitioner"]
  }]
}

For another example see the COL Data Requirements Operation example.

Submit Data Operation

Once the Producer understands the data requirements, they will use the Submit Data operation to submit a MeasureReport and the referenced resources as discovered by the Data Requirements operation to the Consumer. There is no expectation that the submitted data represents all the data of interest, only that all the data submitted is relevant to the calculation of the measure for a particular subject or population. The Consumer simply accepts the submitted data and there is no expectation that the Consumer will actually evaluate the quality measure in response to every Submit Data. In addition, the Submit Data operation does not provide for analytics or feedback on the submitted data.

APIs

In addition to the resources listed above, the following artifacts are used in this transaction:

1. Submit Data operation: $submit-data
2. Various DEQM and QI Core Profiles depending on the specific Measure

Usage

Using the POST Syntax, the operation can be invoked by the Producer:

POST|[base]/Measure/[measure-id]/$submit-data

Standard error responses to the Submit Data operation transactions including appropriate http response codes are documented in the FHIR specification for operation behavior.

Click Here To See Example Submit Data Operation (edited for brevity)

{
   "resourceType":"Parameters",
   "parameter":[
      {
         "name":"measurereport",
         "resource":"{"resourceType": "MeasureReport",
         ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Task",
        ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Patient",
        ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Location",
          ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Practitioner",
        ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Organization",
        ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Coverage",
        ...}
      },

    ]
 }

HTTP/1.1 200 OK
[other headers]

For a complete un-edited example see the MRP Submit Data Operation and COL Submit Data Operation examples.

Collect Data

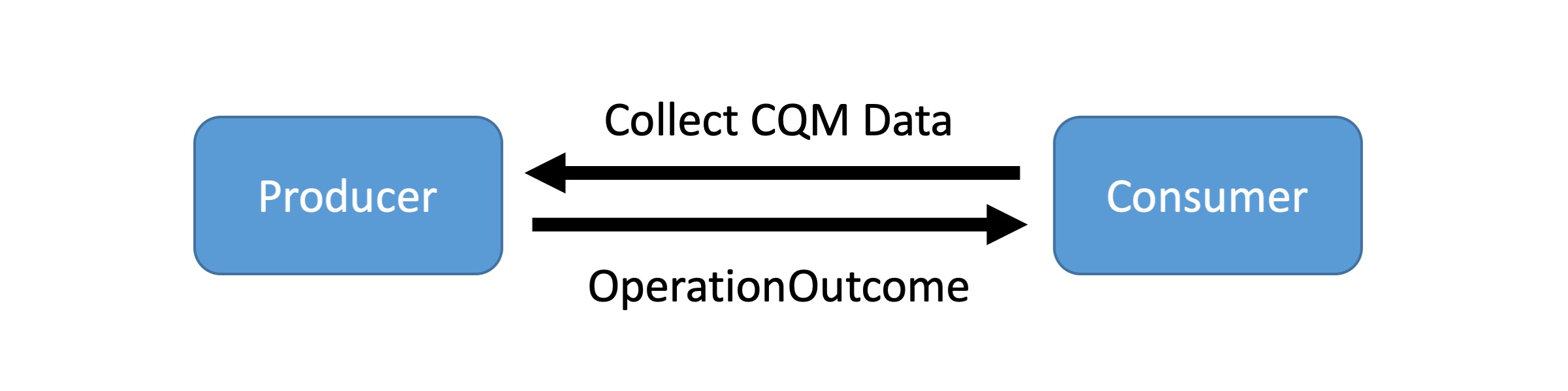

In this scenario, the Consumer initiates a $collect-data operation to gather any available CQM data for a particular measure from the Producer. In response to the operation, the Producer returns a MeasureReport containing data relevant to the Measure. The Producer gathers the data requirements as described above in the Submit Data scenario. Like the Submit Data scenario, there is no expectation that the data returned represents all the data required to evaluate the quality measure only that all the data submitted is relevant to the calculation of the measure for a particular subject or population. Unlike the Submit Data interaction, the exchange is typically incremental as detailed below.

Collect Data Operation

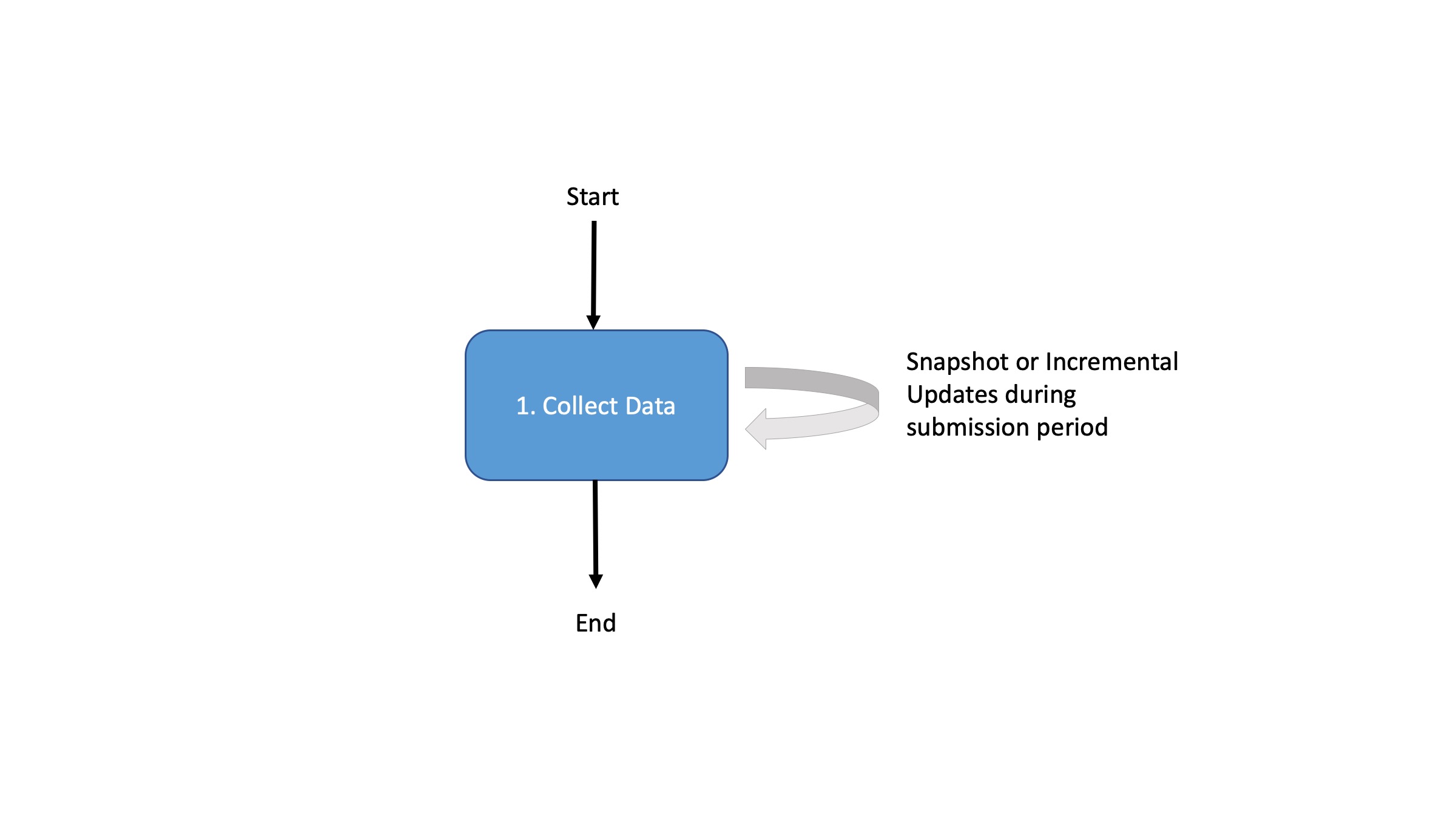

The Consumer uses a Collect Data operation to request any available relevant data for the evaluation of a particular measure from a Producer. Unlike the Submit Data interaction, the collect data exchange is typically incremental. This would typically be done on a periodic basis to support incremental collection of quality data. The lastReceivedOn parameter can be used to indicate when the last Collect Data operation was performed, allowing the Producer to limit the response to only data that has been entered or changed since the last received on date.

Incremental and Snapshot Updates

• Unlike the Submit Data interaction, there is no need for out of band discovery.
• The Consumer uses the Collect Data operation’s lastReceivedOn parameter for incremental data exchange - if the parameter present, it is an incremental update and snapshot if not.
• The same Snapshot and Incremental Requirements and Expectations described above for the Submit Data transaction apply for Collect Data.

• If the Producer cannot support the lastReceivedOn parameter then it SHALL return a 400 Bad Request http error code. An OperationOutcome SHALL be returned stating that the lastReceivedOn parameter is not supported as shown in the following example:

  HTTP/1.1 400 Not Found
  [other headers]
  {
  "resourceType": "OperationOutcome",
  "id": "no-status",
  "issue": [
    {
      "severity": "error",
      "code": "business-rule",
      "details": {
        "text": "The `lastReceivedOn` parameter is not supported "
      },
      "diagnostics": "Resubmit all the information in the payload as a snapshot update"
    }
  ]
  }


APIs

In addition to the resources listed above, the following artifacts are used in this transaction:

1. Collect Data operation:$collect-data
2. Various DEQM and QI Core Profiles depending on the specific Measure

Usage

Collect Data:

Using either the GET or POST Syntax, the operation can be invoked by the Consumer:

GET|[base]/Measure/[measure-id]/$collect-data&[parameters]

POST|[base]/Measure/[measure-id]/$collect-data

Standard error responses to the Collect Data operation transactions including appropriate http response codes are documented in the FHIR specification for operation behavior.

Click Here To See Example Collect Data operation (edited for brevity)

{
   "resourceType":"Parameters",
   "parameter":[
      {
         "name":"subject",
         "valueUri":"Patient/patient-z"
      },
      {
         "name":"practitioner",
         "valueUri":"Practitioner/provider-x"
      },
      {
         "name":"periodStart",
         "valueDate":"Practitioner/2018-06-19"
       }
    ]
 }

HTTP/1.1 200 OK
[other headers]

{
   "resourceType":"Parameters",
   "parameter":[
      {
         "name":"measurereport",
         "resource":"{"resourceType": "MeasureReport",
         ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Task",
        ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Patient",
        ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Location",
          ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Practitioner",
        ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Organization",
        ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Encounter",
        ...}
      },
      {
        "name":"resource",
        "resource":"{"resourceType": "Coverage",
        ...}
      },

    ]
 }

For a complete un-edited example see the COL Collect Data Operation example.

Submit Data and Collect Data for Multiple Patients

Submit Data Operation Request for Multiple Patients

The transaction bundle processing as defined by FHIR specification is used for transacting the body of Submit Data operation request for multiple patients in a single interaction.

• The transaction bundle contains an entry for each patient as illustrated in the examples below:
  • The fullUrl is a UUID (urn:uuid:...).
  • The resource is a Parameters resource as defined in the operation.
  • The request method is POST
  • The request url is the operation endpoint Measure/$submit-data or Measure/[measure-id]/$submit-data.
• When resolving references, references are never resolved outside the Parameters resource. Specifically, resolution stops at the elements Parameters.parameter.resource.”
• The matching transaction response is returned by the operation endpoint server.

POST|[base]

{
  "resourceType": "Bundle",
  "type": "transaction",
  "entry": [
    {
      "fullUrl": "urn:uuid:79378cb8-8f58-48e8-a5e8-60ac2755b674",
      "resource": {
        "resourceType": "Parameters",
        "parameter": [
          {
            "name": "measurereport",
            "resource": {
              "resourceType": "MeasureReport",
              ...,
            "name": "resource",
            "resource": {
              "resourceType": "Patient",
              ...,
            [other "resource" parameters]
          ]
        },
        "request": {
          "method": "POST",
          "url": "Measure/[measure-id]/$submit-data"
            }
            ....

Collect Data Operation Response for Multiple Patients

Because operations are typically executed synchronously, a collect data request to a server returns a Parameter resource for a single patient as defined by the $collect-data operation. Execution of this operation and returning multiple patients in a single asynchronous transaction is outside the scope of this guide.

Provenance

Note that the use of the X-Provenance header data with data that establishes provenance being submitted/collected SHOULD be supported. This provides the capability for associating the provider with the data submitted through the $submit-data and $collect-data transactions described above. If the X-Provenance header is used it should be consistent with the reporter element in the DEQM Data Exchange MeasureReport Profile.
