Must Support

The Profile elements consist of both Mandatory and Must Support elements. Mandatory elements are elements with a minimum cardinality of 1 (min=1). The base FHIR Must Support guidance requires specifications to define the support expected for profile elements labeled Must Support. The sections below illustrate how these elements are displayed and explain the rules for interpreting profile elements and sub-elements labeled Mandatory and Must Support for requesters and responders.

Presentation of Must Support and Mandatory Elements in the Formal Profile Views

Each profile provides several different formal views of all the must support elements in a tree format under tabs labeled “Differential Table”, “Snapshot Table”, and “Snapshot Table (Must Support)”.

The elements labeled Must Support in the “Differential Table” view are flagged with an S. Figure 1 illustrates an example of this:

In the “Snapshot Table” view in Figure 2, all the must support elements defined for the profile, and any mandatory or must support elements inherited from a base profile (e.g. US Core Body Height Profile based on Vital Signs Profile), are flagged with an S.

In the “Key Elements Table” view, all the elements presented in the view are either mandatory or must support elements for conformance to the profile. These elements are defined in the US Core Profile, mandatory elements inherited from the base specification, and, for the US Core Vital Signs profiles, any mandatory or must support elements inherited from the FHIR base Vital Signs profile. An example of the “Snapshot Table (Must Support)” is shown in Figure 3.

Mandatory Elements

When an element is mandatory (min=1), the data is expected to always be present. Very rarely, it may not be, and guidance for when data is missing is provided in the Missing Data section and the next section. The convention in this guide is to mark all min=1 elements as must support unless they are nested under an optional element. An example of this is CarePlan.status.

Must Support Elements

For querying and reading US Core Profiles, Must Support on any profile data element SHALL be interpreted as follows (see the Future of US Core page for writing and updating US Core Profiles):

• US Core Responders SHALL be capable of populating all data elements as part of the query results as specified by the US Core Server Capability Statement.
• US Core Requestors SHALL be capable of processing resource instances containing the data elements without generating an error or causing the application to fail. In other words, US Core Requestors SHOULD be capable of displaying the data elements for human use or storing it for other purposes.
• In situations where information on a particular data element is not present, and the reason for absence is unknown, US Core Responders SHALL NOT include the data elements in the resource instance returned as part of the query results.
• When querying US Core Responders, US Core Requestors SHALL interpret missing data elements within resource instances as data not present in the US Core Responder’s system.
• In situations where information on a particular data element is missing or suppressed, refer to the guidance for Missing Data and Suppressed Data. In cases where information on a specific data element is missing and the US Core Responder knows the precise reason for the absence of data (other than suppressed data), US Core Responders SHOULD send the reason for the missing information. This is done by following the same methodology outlined in the Missing Data section but using the appropriate reason code instead of unknown.
• US Core Requestors SHALL be able to process resource instances containing data elements asserting missing information.

The terms US Core Responder Actor US Core Requestor Actor are used throughout the guide and typically refer to a server or a client.

Readers are advised to understand FHIR Terminology requirements, FHIR RESTful API based on the HTTP protocol, along with FHIR Data Types, FHIR Search, and FHIR Resource formats before implementing US Core requirements.

All the profile information for the US Core Implementation Guide is represented in a single CSV or Excel file. This may be useful to testers and analysts to review the must support and mandatory elements across profiles in a single table.

• CSV
• Excel

This Observation Summary Table compares Must Support Elements across all the US Core Observation Profiles.

Defined Pattern Elements

The StructureDefinitions define the US Core Profiles and the ElementDefinition.pattern, which is used almost exclusively for the CodeableConcept and Coding datatypes. If the element is marked as must support and defined by a pattern, then the pattern defines the elements and element values that the server SHALL be capable of providing.

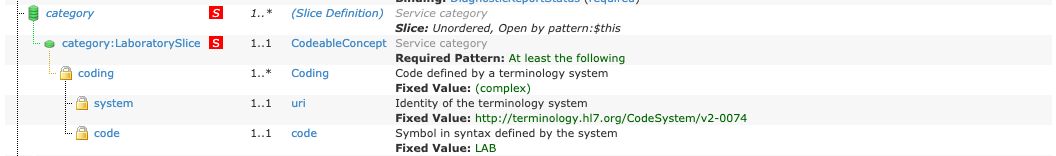

For example, the US Core DiagnosticReport Profile for Laboratory Results Reporting category element is defined with a pattern requiring fixed values in DiagnosticReport.category.coding.system and DiagnosticReport.category.coding.code for a Coding element. When claiming conformance to this profile:

• US Core Responders SHALL provide these values in a DiagnosticReport.category

• US Core Requestors SHALL be capable of processing these values in DiagnosticReport.category

Must Support - Primitive Element

Primitive elements are single elements with a primitive value. If they are marked as must support, then the server SHALL be capable of providing the element value to meet the must support requirement.

For example, the US Core DiagnosticReport Profile for Laboratory Results Reporting issued element is a primitive instant datatype. Therefore, when claiming conformance to this profile:

• US Core Responders SHALL be capable of providing a value in a DiagnosticReport.issued

• US Core Requestors SHALL be capable of processing the value in DiagnosticReport.issued

Must Support - Complex Elements

Complex elements are composed of primitive and/or other complex elements. Note that coded elements (CodeableConcept, Coding, and code datatypes) also have additional binding rules, which are documented in the Coded Elements section.

For any complex element marked as must support, the server SHALL be capable of providing at least one of the sub-element values. If any sub-element is marked as must support, it must meet the must support requirements as well and satisfy the must support requirement for the parent element.

For example, the US Core DiagnosticReport Profile for Report and Note exchange presentedForm element is labeled must support and has no must support sub-elements. When claiming conformance to this profile:

• US Core Responders SHALL be capable of providing a value in DiagnosticReport.presentedForm sub-element.

• US Core Requestors SHALL be capable of processing the value in DiagnosticReport.presentedForm.

For example, the US Core Patient Profile name element is labeled must support and has must support sub-elements “family” and “given”. When claiming conformance to this profile:

• US Core Responders SHALL be capable of providing a value in Patient.name.family and Patient.name.given.

• US Core Requestors SHALL be capable of processing the value in value in Patient.name.family and Patient.name.given.

On the other hand, if any sub-element is marked as must support and the parent element is not, there is no expectation that you must support the parent. However, if the parent element is represented in the structure, you must support the sub-element (s) marked as must support. There are no examples of US Core profiles that have this structure defined.

Systems can support the other elements, but this is not a requirement of US Core. The U.S. Core Data for Interoperability (USCDI) may require additional elements, for example, suffix.

Must Support - Resource References

This section documents additional must support requirements for the Reference element.

In certain profiles, only specific resource references are labeled as Must Support.

For example, the US Core DocumentReference Profile author US Core Practitioner Profile is labeled Must Support. When claiming conformance to the US Core DocumentReference Profile:

• US Core Responders SHALL be capable of providing a DocumentReference.author with a valid reference to a US Core Practitioner Profile.
• US Core Requestors SHALL be capable of processing a DocumentReference.author with a valid reference to a US Core Practitioner Profile.

Systems can support other references, but this is not a requirement of US Core.

In specific profiles, only a single resource reference is present on an element labeled Must Support.

For example, the US Core AllergyIntolerance Profile patient is labeled Must Support. When claiming conformance to the US Core AllergyIntolerance Profile:

• US Core Responders SHALL be capable of providing an AllergyIntolerance.patient with a valid reference to a US Core Patient Profile.
• US Core Requestors SHALL be capable of processing an AllergyIntolerance.patient with a valid reference to a US Core Patient Profile.

Must Support - Choice of Data Types

Some elements allow different data types (e.g., Observation.effective[x]) for their content. Only specific data type choice elements are labeled as Must Supportin these situations.

For example, the US Core Laboratory Result Observation Profile effectiveDateTime is labeled Must Support. When claiming conformance to the US Core Laboratory Result Observation Profile:

• US Core Responders SHALL be capable of populating Observation.effectiveDateTime.
• US Core Requestors SHALL be capable of processing Observation.effectiveDateTime.

Systems MAY support populating and processing other choice elements (such as Observation.effectivePeriod), but this is not a requirement of US Core.

For the US Core Laboratory Result Observation Profile value element, multiple elements are labeled Must Support.

When claiming conformance to the US Core Laboratory Result Observation Profile:

• US Core Responders SHALL be capable of populating Observation.valueQuantity, Observation.valueCodeableConcept, and Observation.valueString.
• US Core Requestors SHALL be capable of processing Observation.valueQuantity, Observation.valueCodeableConcept, and Observation.valueString.

Systems can support the other elements, but this is not a requirement of US Core.

Must Support - Choice of Profile Elements

There are several instances in this Guide where there is a choice of supporting one or another profile element to meet the must support requirement. In such cases, the server SHALL support at least one element, and the client application SHALL support all elements. Unfortunately, there is no way to define this in a computable way, but these instances are clearly documented in the Profile specific implementation guidance sections.

For example:

US Core Medication Request Profile - The MedicationRequest resource can represent that information is from a secondary source using either a boolean flag or reference in MedicationRequest.reportedBoolean, or a reference using MedicationRequest.reportedReference to Practitioner or another resource type. Although both are marked as must support, servers are not required to support a boolean and a reference but SHALL choose to support at least one of these elements.
