R6 Ballot (1st Draft)
FoundationThis page is part of the FHIR Specification v6.0.0-ballot1: Release 6 Ballot (1st Draft) (see Ballot Notes). The current version is 5.0.0. For a full list of available versions, see the Directory of published versions
| FHIR Infrastructure Work Group | Maturity Level: Normative | Standards Status: Normative |
This exchange specification is based on generally agreed common requirements across healthcare - covering many jurisdictions, domains, and different functional approaches. It is common for specific implementations to have valid requirements that are not part of these agreed common requirements. Incorporating all valid requirements would make this specification very cumbersome and difficult to implement. Instead, this specification expects that additional valid requirements will be implemented as extensions.
As such, extensibility is a fundamental part of the design of this specification. Every element in a resource can have extension child elements to represent additional information that is not part of the basic definition of the resource. Applications should not reject resources merely because they contain extensions, though they may need to reject resources because of the specific contents of the extensions.
Note that, unlike in many other specifications, there can be no stigma associated with the use of extensions by any application, project, or standard - regardless of the institution or jurisdiction that uses or defines the extensions. The use of extensions is what allows the FHIR specification to retain a core simplicity for everyone.
To make the use of extensions safe and managable, there is strict governance applied to the definition and use of extensions. Although any implementer can define and use extensions, there is a set of requirements that must be met as part of their use and definition.
Every resource or datatype element may include one or more "extension" child elements. The extension is either simple or complex. Simple extensions have only a value and no nested extensions. Complex extensions contain one or more nested extensions and no value. An extension can not have both a value and nested extensions.
The Extension definition is shown below:
Structure
| Name | Flags | Card. | Type | Description & Constraints |
|---|---|---|---|---|
  Extension | N | Element | Optional Extensions Element + Rule: Must have either extensions or value[x], not both Elements defined in Ancestors: id, extension | |
  url | 1..1 | uri | identifies the meaning of the extension | |
  value[x] | C | 0..1 | * | Value of extension |
| Documentation for this format | ||||
UML Diagram (Legend)
XML Template
<extension|modifierExtension xmlns="http://hl7.org/fhir" url="identifies the meaning of the extension (uri)"> <!-- from Element: extension --> <value[x]><!-- I 0..1 * Value of extension --></value[x]> </extension|modifierExtension>
JSON Template
{
// from Element: extension
"url" : "<uri>", // R! identifies the meaning of the extension
// value[x]: Value of extension. One of these 54:
"valueBase64Binary" : "<base64Binary>"
"valueBoolean" : <boolean>,
"valueCanonical" : "<canonical>",
"valueCode" : "<code>",
"valueDate" : "<date>",
"valueDateTime" : "<dateTime>",
"valueDecimal" : <decimal>,
"valueId" : "<id>",
"valueInstant" : "<instant>",
"valueInteger" : <integer>,
"valueInteger64" : "<integer64>",
"valueMarkdown" : "<markdown>",
"valueOid" : "<oid>",
"valuePositiveInt" : "<positiveInt>",
"valueString" : "<string>",
"valueTime" : "<time>",
"valueUnsignedInt" : "<unsignedInt>",
"valueUri" : "<uri>",
"valueUrl" : "<url>",
"valueUuid" : "<uuid>",
"valueAddress" : { Address },
"valueAge" : { Age },
"valueAnnotation" : { Annotation },
"valueAttachment" : { Attachment },
"valueCodeableConcept" : { CodeableConcept },
"valueCodeableReference" : { CodeableReference },
"valueCoding" : { Coding },
"valueContactPoint" : { ContactPoint },
"valueCount" : { Count },
"valueDistance" : { Distance },
"valueDuration" : { Duration },
"valueHumanName" : { HumanName },
"valueIdentifier" : { Identifier },
"valueMoney" : { Money },
"valuePeriod" : { Period },
"valueQuantity" : { Quantity },
"valueRange" : { Range },
"valueRatio" : { Ratio },
"valueRatioRange" : { RatioRange },
"valueReference" : { Reference },
"valueSampledData" : { SampledData },
"valueSignature" : { Signature },
"valueTiming" : { Timing },
"valueContactDetail" : { ContactDetail },
"valueDataRequirement" : { DataRequirement },
"valueExpression" : { Expression },
"valueParameterDefinition" : { ParameterDefinition },
"valueRelatedArtifact" : { RelatedArtifact },
"valueTriggerDefinition" : { TriggerDefinition },
"valueUsageContext" : { UsageContext },
"valueAvailability" : { Availability },
"valueExtendedContactDetail" : { ExtendedContactDetail },
"valueDosage" : { Dosage },
"valueMeta" : { Meta },
}
Turtle Template
@prefix fhir: <http://hl7.org/fhir/> . [ # from Element: Element.extension fhir:url [ uri ] ; # 1..1 identifies the meaning of the extension # value[x] : 0..1 I Value of extension. One of these 54 fhir:value [ a fhir:base64Binary ; base64Binary ] fhir:value [ a fhir:boolean ; boolean ] fhir:value [ a fhir:canonical ; canonical ] fhir:value [ a fhir:code ; code ] fhir:value [ a fhir:date ; date ] fhir:value [ a fhir:dateTime ; dateTime ] fhir:value [ a fhir:decimal ; decimal ] fhir:value [ a fhir:id ; id ] fhir:value [ a fhir:instant ; instant ] fhir:value [ a fhir:integer ; integer ] fhir:value [ a fhir:integer64 ; integer64 ] fhir:value [ a fhir:markdown ; markdown ] fhir:value [ a fhir:oid ; oid ] fhir:value [ a fhir:positiveInt ; positiveInt ] fhir:value [ a fhir:string ; string ] fhir:value [ a fhir:time ; time ] fhir:value [ a fhir:unsignedInt ; unsignedInt ] fhir:value [ a fhir:uri ; uri ] fhir:value [ a fhir:url ; url ] fhir:value [ a fhir:uuid ; uuid ] fhir:value [ a fhir:Address ; Address ] fhir:value [ a fhir:Age ; Age ] fhir:value [ a fhir:Annotation ; Annotation ] fhir:value [ a fhir:Attachment ; Attachment ] fhir:value [ a fhir:CodeableConcept ; CodeableConcept ] fhir:value [ a fhir:CodeableReference ; CodeableReference ] fhir:value [ a fhir:Coding ; Coding ] fhir:value [ a fhir:ContactPoint ; ContactPoint ] fhir:value [ a fhir:Count ; Count ] fhir:value [ a fhir:Distance ; Distance ] fhir:value [ a fhir:Duration ; Duration ] fhir:value [ a fhir:HumanName ; HumanName ] fhir:value [ a fhir:Identifier ; Identifier ] fhir:value [ a fhir:Money ; Money ] fhir:value [ a fhir:Period ; Period ] fhir:value [ a fhir:Quantity ; Quantity ] fhir:value [ a fhir:Range ; Range ] fhir:value [ a fhir:Ratio ; Ratio ] fhir:value [ a fhir:RatioRange ; RatioRange ] fhir:value [ a fhir:Reference ; Reference ] fhir:value [ a fhir:SampledData ; SampledData ] fhir:value [ a fhir:Signature ; Signature ] fhir:value [ a fhir:Timing ; Timing ] fhir:value [ a fhir:ContactDetail ; ContactDetail ] fhir:value [ a fhir:DataRequirement ; DataRequirement ] fhir:value [ a fhir:Expression ; Expression ] fhir:value [ a fhir:ParameterDefinition ; ParameterDefinition ] fhir:value [ a fhir:RelatedArtifact ; RelatedArtifact ] fhir:value [ a fhir:TriggerDefinition ; TriggerDefinition ] fhir:value [ a fhir:UsageContext ; UsageContext ] fhir:value [ a fhir:Availability ; Availability ] fhir:value [ a fhir:ExtendedContactDetail ; ExtendedContactDetail ] fhir:value [ a fhir:Dosage ; Dosage ] fhir:value [ a fhir:Meta ; Meta ] ]
Changes since Release 3
Changes from both R4 and R4B
| Extension | |
| Extension.url |
|
| Extension.value[x] |
|
See the Full Difference for further information
Structure
| Name | Flags | Card. | Type | Description & Constraints |
|---|---|---|---|---|
| Extension | N | Element | Optional Extensions Element + Rule: Must have either extensions or value[x], not both Elements defined in Ancestors: id, extension | |
| url | 1..1 | uri | identifies the meaning of the extension | |
| value[x] | C | 0..1 | * | Value of extension |
| Documentation for this format | ||||
XML Template
<extension|modifierExtension xmlns="http://hl7.org/fhir" url="identifies the meaning of the extension (uri)"> <!-- from Element: extension --> <value[x]><!-- I 0..1 * Value of extension --></value[x]> </extension|modifierExtension>
JSON Template
{
// from Element: extension
"url" : "<uri>", // R! identifies the meaning of the extension
// value[x]: Value of extension. One of these 54:
"valueBase64Binary" : "<base64Binary>"
"valueBoolean" : <boolean>,
"valueCanonical" : "<canonical>",
"valueCode" : "<code>",
"valueDate" : "<date>",
"valueDateTime" : "<dateTime>",
"valueDecimal" : <decimal>,
"valueId" : "<id>",
"valueInstant" : "<instant>",
"valueInteger" : <integer>,
"valueInteger64" : "<integer64>",
"valueMarkdown" : "<markdown>",
"valueOid" : "<oid>",
"valuePositiveInt" : "<positiveInt>",
"valueString" : "<string>",
"valueTime" : "<time>",
"valueUnsignedInt" : "<unsignedInt>",
"valueUri" : "<uri>",
"valueUrl" : "<url>",
"valueUuid" : "<uuid>",
"valueAddress" : { Address },
"valueAge" : { Age },
"valueAnnotation" : { Annotation },
"valueAttachment" : { Attachment },
"valueCodeableConcept" : { CodeableConcept },
"valueCodeableReference" : { CodeableReference },
"valueCoding" : { Coding },
"valueContactPoint" : { ContactPoint },
"valueCount" : { Count },
"valueDistance" : { Distance },
"valueDuration" : { Duration },
"valueHumanName" : { HumanName },
"valueIdentifier" : { Identifier },
"valueMoney" : { Money },
"valuePeriod" : { Period },
"valueQuantity" : { Quantity },
"valueRange" : { Range },
"valueRatio" : { Ratio },
"valueRatioRange" : { RatioRange },
"valueReference" : { Reference },
"valueSampledData" : { SampledData },
"valueSignature" : { Signature },
"valueTiming" : { Timing },
"valueContactDetail" : { ContactDetail },
"valueDataRequirement" : { DataRequirement },
"valueExpression" : { Expression },
"valueParameterDefinition" : { ParameterDefinition },
"valueRelatedArtifact" : { RelatedArtifact },
"valueTriggerDefinition" : { TriggerDefinition },
"valueUsageContext" : { UsageContext },
"valueAvailability" : { Availability },
"valueExtendedContactDetail" : { ExtendedContactDetail },
"valueDosage" : { Dosage },
"valueMeta" : { Meta },
}
Turtle Template
@prefix fhir: <http://hl7.org/fhir/> . [ # from Element: Element.extension fhir:url [ uri ] ; # 1..1 identifies the meaning of the extension # value[x] : 0..1 I Value of extension. One of these 54 fhir:value [ a fhir:base64Binary ; base64Binary ] fhir:value [ a fhir:boolean ; boolean ] fhir:value [ a fhir:canonical ; canonical ] fhir:value [ a fhir:code ; code ] fhir:value [ a fhir:date ; date ] fhir:value [ a fhir:dateTime ; dateTime ] fhir:value [ a fhir:decimal ; decimal ] fhir:value [ a fhir:id ; id ] fhir:value [ a fhir:instant ; instant ] fhir:value [ a fhir:integer ; integer ] fhir:value [ a fhir:integer64 ; integer64 ] fhir:value [ a fhir:markdown ; markdown ] fhir:value [ a fhir:oid ; oid ] fhir:value [ a fhir:positiveInt ; positiveInt ] fhir:value [ a fhir:string ; string ] fhir:value [ a fhir:time ; time ] fhir:value [ a fhir:unsignedInt ; unsignedInt ] fhir:value [ a fhir:uri ; uri ] fhir:value [ a fhir:url ; url ] fhir:value [ a fhir:uuid ; uuid ] fhir:value [ a fhir:Address ; Address ] fhir:value [ a fhir:Age ; Age ] fhir:value [ a fhir:Annotation ; Annotation ] fhir:value [ a fhir:Attachment ; Attachment ] fhir:value [ a fhir:CodeableConcept ; CodeableConcept ] fhir:value [ a fhir:CodeableReference ; CodeableReference ] fhir:value [ a fhir:Coding ; Coding ] fhir:value [ a fhir:ContactPoint ; ContactPoint ] fhir:value [ a fhir:Count ; Count ] fhir:value [ a fhir:Distance ; Distance ] fhir:value [ a fhir:Duration ; Duration ] fhir:value [ a fhir:HumanName ; HumanName ] fhir:value [ a fhir:Identifier ; Identifier ] fhir:value [ a fhir:Money ; Money ] fhir:value [ a fhir:Period ; Period ] fhir:value [ a fhir:Quantity ; Quantity ] fhir:value [ a fhir:Range ; Range ] fhir:value [ a fhir:Ratio ; Ratio ] fhir:value [ a fhir:RatioRange ; RatioRange ] fhir:value [ a fhir:Reference ; Reference ] fhir:value [ a fhir:SampledData ; SampledData ] fhir:value [ a fhir:Signature ; Signature ] fhir:value [ a fhir:Timing ; Timing ] fhir:value [ a fhir:ContactDetail ; ContactDetail ] fhir:value [ a fhir:DataRequirement ; DataRequirement ] fhir:value [ a fhir:Expression ; Expression ] fhir:value [ a fhir:ParameterDefinition ; ParameterDefinition ] fhir:value [ a fhir:RelatedArtifact ; RelatedArtifact ] fhir:value [ a fhir:TriggerDefinition ; TriggerDefinition ] fhir:value [ a fhir:UsageContext ; UsageContext ] fhir:value [ a fhir:Availability ; Availability ] fhir:value [ a fhir:ExtendedContactDetail ; ExtendedContactDetail ] fhir:value [ a fhir:Dosage ; Dosage ] fhir:value [ a fhir:Meta ; Meta ] ]
Changes since Release 3
Changes from both R4 and R4B
| Extension | |
| Extension.url |
|
| Extension.value[x] |
|
See the Full Difference for further information
Notes:
url is a mandatory attribute / property and identifies a retrievable extension definition that defines the content and meaning of the extensionExtension.url or on Element.id; see ElementDefinition.representation for backgroundurl SHALL be a URL, not a URN (e.g. not an OID or a UUID), and it SHALL be a reference to the canonical URL of a StructureDefinition that defines the extension. Except for child extensions defined within complex extensions, the URL SHALL be an absolute URL. extension element. 'Not safe' means that the extension causes information in other elements within the resource to be interpreted in a way that is not consistent with their base definition. See examples below.StructureDefinition.differential.element[0].code)valueCode is fhir:value, and the type (Code) is indicated in an additional assertion, such as ... a fhir:Code. See FHIR RDF Property Names for
further explanation.
Here is an example of an extension in XML (see definition):
<name>
<extension url="http://hl7.org/fhir/StructureDefinition/iso-21090-EN-use" >
<valueCode value="I" />
</extension>
<text value="Chief Red Cloud"/>
</name>
In this example the name with text = "Chief Red Cloud" is extended to have a name use code of "Indigenous" (defined in ISO 21090, but very rarely used in practice).
In JSON, extensions are represented similarly:
{
"extension": [
{
"url": "http://hl7.org/fhir/StructureDefinition/iso-21090-EN-use",
"valueCode": "I"
}
],
"text": "Chief Red Cloud"
}
In RDF (Turtle), the same extension looks like this:
...
fhir:extension (
[
fhir:url [
fhir:v "http://hl7.org/fhir/StructureDefinition/iso-21090-EN-use"^^xsd:anyURI
] ;
fhir:value [
a fhir:code ;
fhir:v "I"
]
]
) ;
fhir:text [ fhir:v "Chief Red Cloud" ] ;
Making the types explicit in the representation means that all systems can read and write (and therefore store and/or exchange) extensions correctly without needing to access the definition of the extension.
Note that the JSON representation for extensions on primitive datatypes is handled differently. See Representing primitive types in JSON for further information.
Extensions can also contain extensions, either because the extension definition itself defines complex content - that is, a nested tree of values in the extension - or because the extension is extended with an additional extension defined separately.
In the case where an extension defines complex content, the identity of the parts of the extension are local/relative to the reference to the extension definition.
As an example, consider extending a patient with information about citizenship (see definition) containing 2 fields: code and period. In XML:
<Patient>
<extension url="http://hl7.org/fhir/StructureDefinition/patient-citizenship" >
<extension url="code" >
<valueCodeableConcept>
<coding>
<system value="urn:iso:std:iso:3166" />
<code value="DE" />
</coding>
</valueCodeableConcept>
</extension>
<extension url="period" >
<valuePeriod>
<start value="2009-03-14" />
</valuePeriod>
</extension>
</extension>
<!-- other data for patient -->
</Patient>
Or in JSON:
{
"resourceType": "Patient",
"extension": [
{
"url": "http://hl7.org/fhir/StructureDefinition/patient-citizenship",
"extension": [
{
"url": "code",
"valueCodeableConcept": {
"coding": [
{
"system": "urn:iso:std:iso:3166",
"code": "DE"
}
]
}
},
{
"url": "period",
"valuePeriod": {
"start": "2009-03-14"
}
}
]
}
]
}
This extension can be extended again, by adding a "passport-number" extension:
The passport number is defined as a separate extension (e.g. by an implementing organization, not in this specification) rather than part of the official citizenship extension. The URL of the extension is thus different. In XML:
<Patient>
<extension url="http://hl7.org/fhir/StructureDefinition/patient-citizenship" >
<extension url="code" >
<valueCodeableConcept>
<coding>
<system value="urn:iso:std:iso:3166" />
<code value="DE" />
</coding>
</valueCodeableConcept>
</extension>
<extension url="period" >
<valuePeriod>
<start value="2009-03-14" />
</valuePeriod>
</extension>
<extension url="http://acme.org/fhir/StructureDefinition/passport-number" >
<valueString value="12345ABC" />
</extension>
<!-- other data for patient -->
</extension>
</Patient>
or in JSON:
{
"resourceType": "Patient",
"extension": [
{
"url": "http://hl7.org/fhir/StructureDefinition/patient-citizenship",
"extension": [
{
"url": "code",
"valueCodeableConcept": {
"coding": [
{
"system": "urn:iso:std:iso:3166",
"code": "DE"
}
]
}
},
{
"url": "period",
"valuePeriod": {
"start": "2009-03-14"
}
},
{
"url": "http://acme.org/fhir/StructureDefinition/passport-number",
"valueString": "12345ABC"
}
]
}
]
}
Note that this passport number extension is shown here as an example defined by a fake organization, and not appropriate for re-use by implementers.
Primitive datatypes can carry extensions. The extensions may appear in place of the value of the primitive datatype. The XML, JSON and RDF pages describe how this looks in those respective formats. Implementers should be aware that a mandatory primitive datatype (i.e. mininum cardinality=1) may be present with extensions but no value. Type use case are extensions such as DataAbsentReason, nullFlavor and expression.
However, the use of an extension such as DataAbsentReason cannot be used to bypass a required binding requirements.
Note that this restriction also applies to extensible bindings on Coding and CodeableConcept datatypes. The use of an extension such as DataAbsentReason cannot be used to bypass a required or extensible binding requirements. For example, if a value set includes the concept of "unknown", then a DataAbsentReason of "unknown" cannot be sent without sending a Coding with the "unknown" concept. (In which case also sending an 'unknown' code would be inappropriate and unnecessary.)
There are some cases where the information provided in an extension modifies the meaning of the element that contains it. Typically, this means information that qualifies or negates the primary meaning of the element that contains it. Some examples:
Such extensions are known as "modifier extensions". For further information, see the definition of what makes an element - or an extension - a modifier. If modifier extensions are present, an application is restricted in its ability to safely process the resource unless it knows what the extension means for its own use of the data.
Implementers SHOULD avoid the use of modifier extensions where possible. Any use should be carefully considered against its possible downstream consequences. Inclusion of modifier
extensions in an instance would be expected to significantly limit the ability of other systems to process the instance. However, implementers
are often forced into these situations by the business arrangements around
the use of resources, so this specification creates a framework for handling such cases.
Implementers who are introducing an extension and are uncertain whether the extension should be marked as a modifier are encouraged to raise the question on chat.fhir.org .
This specification allows for such modifier elements to be included at the base of a domain resource, in any elements that do not have a datatype (e.g. the elements that correspond to classes in the resource UML diagrams), and on a few specially selected datatypes. Other datatypes and elements inside datatypes SHALL NOT have modifier extensions, and extensions SHALL NOT have modifier extensions internally (except for the reusable structures allowed to appear in extensions, listed above).
Whether extensions are considered modifiers or not is based on the isModifier flag
on the root element in the extension definition (the element definition with path "Extension" in the generated snapshot).
If this is true, then the extension SHALL only be contained in the modifierExtension element.
If this is false, then the extension SHALL only be contained in the extension element.
Note that complex extensions are allowed to have elements in the complex extension that are marked
Is-Modifier = true, which means that these elements modify the extension value itself.
Internal extensions like this marked "Is-Modifier" are still represented using the extension element, not modifierExtension
because the impact of the modifier element is expected to be known by applications that understand the containing extension.
Modifier extensions SHALL NOT change the meaning of any elements on Resource or DomainResource (including cannot change the meaning of modifierExtension itself). Is-modifier elements not defined as part of an extension's definition cannot be conveyed (e.g. an extension cannot have a modifier extension in it).
When defining a new modifier extension, it is designated as being a 'modifier' rather than a
'regular' extension by setting the isModifier element on the root 'element' for the
StructureDefinition to 'true'. Only extensions that are defined as being
modifiers can appear in modifierExtension. A regular extension cannot be 'constrained' to be a modifier.
In XML, these modifier elements are represented using an element named modifierExtension, which has the same content as the
extension element documented above:

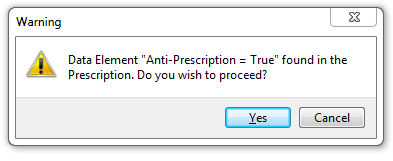

Example: There's no element on MedicationRequest to write an "anti-prescription" - an instruction not to take a medication for a particular period. Classical clinical recording systems do not record this as a prescription - but one particular system does, and these "anti-prescription" records need to be shared within the institution where this happens as they are an important part of the workflow. Hence, applications are allowed to extend a resource with data like this:
<MedicationRequest>
<modifierExtension url="http://example.org/fhir/StructureDefinition/anti-prescription">
<valueBoolean value="true"/>
</modifierExtension>
<!-- ... other content ... -->
</MedicationRequest>
Or in JSON:
{
"resourceType": "MedicationRequest",
"modifierExtension": [
{
"url": "http://example.org/fhir/StructureDefinition/anti-prescription",
"valueBoolean": true
}
],
.. other content ...
}
See the RDF page for an example in RDF (Turtle).
Implementations processing the data in resources SHALL check for modifiers anywhere they could appear, and if a modifier extension is present on a data element that the application 'processes', SHALL do one of these things:
extensions or generated, display the narrative and don't process the discrete dataFor the purpose of this page, processing the data of a resource is taken to mean copying or filtering data out of a resource for use in another context (display to a human, decision support, exchange in another format where not all information is included, or storing it for this kind of use). Servers and background processes that simply move whole resources around unchanged are not "processing the data of the resource", and therefore these applications are not required to check for unknown modifier extensions.
#1: When an application understands this extension, it means that some developer has provided appropriate instructions for what to do with the data contained in it because of the existence of the modifier extension or has determined that the modifier does not impact on the system's computational functions. Note that this assessment needs to be repeated each time a system's computational behavior changes
#2: This means that implementations are not inherently required to "support" a modifier extension in any meaningful way - they can achieve this understanding by rejecting instances that contain this extension (a server, for instance, could return a HTTP 422 status code with an OperationOutcome if a client PUTs or POSTs a modifier extension it does not know). Applications might also be able to ignore a modifier extension if they know that it is safe to do so in their own context, though this would not usually be the case.
Implementations SHALL ensure that they do not process data containing unrecognized modifier extensions. Where a modifier appears on a child element within the resource rather than on the resource as a whole, the system can choose to process the resource but exclude the element containing the modifier from processing. i.e. treat the element with the modifier as if it were missing. This approach can only work if the processing can safely function with incomplete data. Caution needs to be taken if doing this for elements that have a 'meaning if missing'.
Note that implementations might be able to be sure, due to their implementation environment (e.g. specific trading partner agreement), that modifier extensions will never occur, and can therefore meet the requirement to check for modifiers at the design stage. However, since integration and deployment options often change, applications SHOULD always check for modifier extensions when processing resources.
#3: One way to warn the user is to download the extension definition from the given URL, and then use the defined display name to present the extension to the user. An error message could look something like this:
Note that the narrative of the resource SHALL contain modifying information, so it is safe to show this to the user as an expression of the resource's content. A warning dialog box could be extended to offer the user the choice to see the original narrative.
An application only needs to concern itself with modifier extensions on elements that
it processes. Take, for example, a case where a procedure resource
has a modifier extension on one of the performer elements indicating that they did
not participate in the procedure. If an application is not using the performer details at all,
the fact that one of the performers has a modifier extension is irrelevant and the
application is free to ignore it. If the application does process the performers, and it sees the
modifier extension, it must act in one of the ways outlined above.
Here is the prescription example from above with narrative:
<MedicationRequest xmlns="http://hl7.org/fhir">
<text>
<status value="generated"/>
<div xmlns="http://www.w3.org/1999/xhtml">
<p><b>Note: This prescription is an instruction NOT to take a medication</b></p>
<!-- snip actual narrative -->
</div>
</text>
<!-- ...data... -->
<modifierExtension url="http://example.org/fhir/StructureDefinition/anti-prescription">
<valueBoolean value="true"/>
</modifierExtension>
<!-- ...data... -->
</MedicationRequest>
Implementation Guides might place limitations on the appearance of modifier extensions within instances that comply with the implementation guide.
In some cases, implementers might find that they do not have appropriate data for an element with minimum cardinality = 1. In this case, the element must be present, but unless the resource or a profile on it has made the actual value of the primitive datatype mandatory, it is possible to provide an extension that explains why the primitive value is not present:
<uri>
<extension url="http://hl7.org/fhir/StructureDefinition/data-absent-reason">
<valueCode value="unknown"/>
</extension>
</uri>
In this example, instead of a value, a data missing code is provided. Note that it is not required that this particular extension be used. This extension is not a modifier extension, because the primitive datatype has no value.
It is not valid to create a fictional piece of data for the primitive value, and then add an extension indicating that the data has been constructed to meet the data rules. This would be both a bad idea as well as a modifier extension, which is not allowed on simple datatypes.
Note: This section describes the use of "non-modifier extensions", except where "modifier extensions" are explicitly mentioned (see Modifier Extensions above for details).
Extensions are a way of allowing local requirements to be reflected in a resource using a common information based approach so that all systems can confidently process them using the same tools. However, when it comes to processing the information, applications will be constrained in their ability to handle extensions by the degree to which they are informed about them.
While the structured definition of an extension should always be available (see below for details), the mere availability of a definition does not automatically mean that applications know how to handle them correctly - generally, human decisions are required to determine how the data in extensions should be handled, along with the implicit obligations that surround the information.
For this reason, local requirements that manifest as extensions are an obstacle to integration and interoperability. The more the requirements are shared (i.e. regional or national scale), the less of an obstacle the extensions (and the requirements they represent) will represent. The consistent representation, definition and registration of extensions that this specification defines cannot resolve that problem - it only provides a framework within which such local variations can be handled more easily.
When it comes to deploying applications that support local requirements, situations will very likely arise where different applications exchanging information with each other are supporting different sets of extensions. This specification defines some basic rules that are intended to make management of these situations easier, but it cannot resolve them.
The degree to which a system can retain unknown extensions is a function of the type of system it is: a general purpose FHIR server, or a middleware engine would be expected to retain all extensions, while an application that manages patient registration through a user interface can only retain extensions to the degree that the information in them is part of the set managed by the user. Other applications will fall somewhere between these two extremes.
Use the following rules as a guideline for handling resources:
FHIR ®© HL7.org 2011+. FHIR R6 hl7.fhir.core#6.0.0-ballot1 generated on Mon, Dec 18, 2023 15:18+1100.
Links: Search |
Version History |
Contents |
Glossary |
QA |
Compare to R5 |
|
Propose a change
