Workflow is an essential part of healthcare - orders, care protocols, referrals are the drivers of most activity within in-patient settings and a great deal of activity in community care as well. FHIR is concerned with workflow when there's a need to share information about workflow state or relationships, when there's a need to coordinate or drive the execution of workflow across systems and when there's a need to define allowed actions, dependencies and conditions on behavior.
Workflow state & relationships
FHIR does not need to be used for the execution of workflow. Orders, care plans, lab results, hospital admissions, claim payments and other records can all be shared using FHIR resources without the process to solicit fulfillment of those orders or requesting payment of those claims being driven by a FHIR transaction. Interoperable support for workflow execution is a more advanced FHIR activity because it requires a higher degree of standardization. Rather than merely standardizing the data to exchange, interoperable workflow execution requires standardization of the processes, roles and activities across the different systems. However, even without using FHIR for workflow execution, there's still a need to standardize the data elements related to workflow: how does an event or a result point to the order that authorized it? How do parent steps and child steps get linked together? How does a care plan identify what protocol it's adhering to?
FHIR defines three categories of resources that are involved in activities - requests, events and definitions. Each of these categories has a "pattern" associated with it. Resources that fall into that category are encouraged to adhere to their respective pattern. These patterns provide standard elements that are typical for most resources of each category. Strict adherence is not required as work groups are expected to align with typical domain behavior and requirements as more authoritative than "desired" architectural patterns. In some cases, capabilities might be supported with extensions rather than core elements where a pattern capability is deemed to be "not common, but still relevant" for a given resource.
A full description of the patterns and their interrelationships can be found in the Workflow Resource Patterns section of this page.
Workflow execution
In addition to defining patterns for resources used in workflow processes, FHIR supports the execution of those processes as well. However, FHIR does not define a "one size fits all" solution for workflow architecture. FHIR supports a variety of interoperability paradigms and most of them (REST, Messaging and Services) provide support for driving workflow execution. (The Document paradigm does not directly support driving behavior, though it can be combined with one of the other patterns to do so.) In addition, several of these paradigms allow multiple approaches to supporting workflow, depending on the context and needs of the workflow process.
The Workflow Execution and Communication Patterns section describes many options for workflow execution, summarizes their respective pros and cons and makes recommendations for the circumstances in which they might best be used.
Workflow definition
The definition of protocols, order sets, guidelines and other structures that define what sorts of activities should occur, what order they should occur on, what dependencies they have, in what circumstances they should start or end, etc. is handled by a pair of resources:
The use of these two artifacts is discussed here.
Not all resources in FHIR are related to workflow - many are used to describe entities and roles (patients, medications, etc.) or infrastructure (structure definitions, value sets, etc.). However, a large proportion of the FHIR resources are devoted to the description of activities in one fashion or another and almost all of these fall into the realm of workflow - they describe things that can be done (definitions), are desired to be done (requests) or that have been done (events). The table below summarizes the list of workflow-relevant resources:
| Definitions | Resources that define something that can potentially happen in a patient and time-independent manner | |||
|---|---|---|---|---|
| Requests | Resources that ask for or express a desire/intention for something to be done | |||
| Events | Resources that express that something has been done and which can potentially be done because of a request | |||
| * | The Appointment and AppointmentResponse resources do not follow the same sort of request/response pattern as the other resources. Their design is based on iCal conventions, so their model won't align with the pattern as strictly as most other resources. They are included here for completeness. |
| ‡ | The Task resource takes on characteristics of both "requests" and "events" and thus shares characteristics from both patterns |
Note that requests, events and definitions don't exist in a 1:1:1 relationship. Some requests and events have obvious pairings. For example, a SupplyRequest will generally always pair with a SupplyDelivery. The same goes for EnrollmentRequest/EnrollmentResponse, etc. On the other hand, for other resources there isn't a strict pairing. A ServiceRequest might be responded to by an Encounter, DiagnosticReport, Procedure, RiskAssessment, etc. Similarly, a Procedure might be triggered by a ServiceRequest. The set of common linkages should be asserted in their respective resources. The specific types of responses for a given request will be governed by the Request.code, any workflow definitions/protocols referenced and local convention.

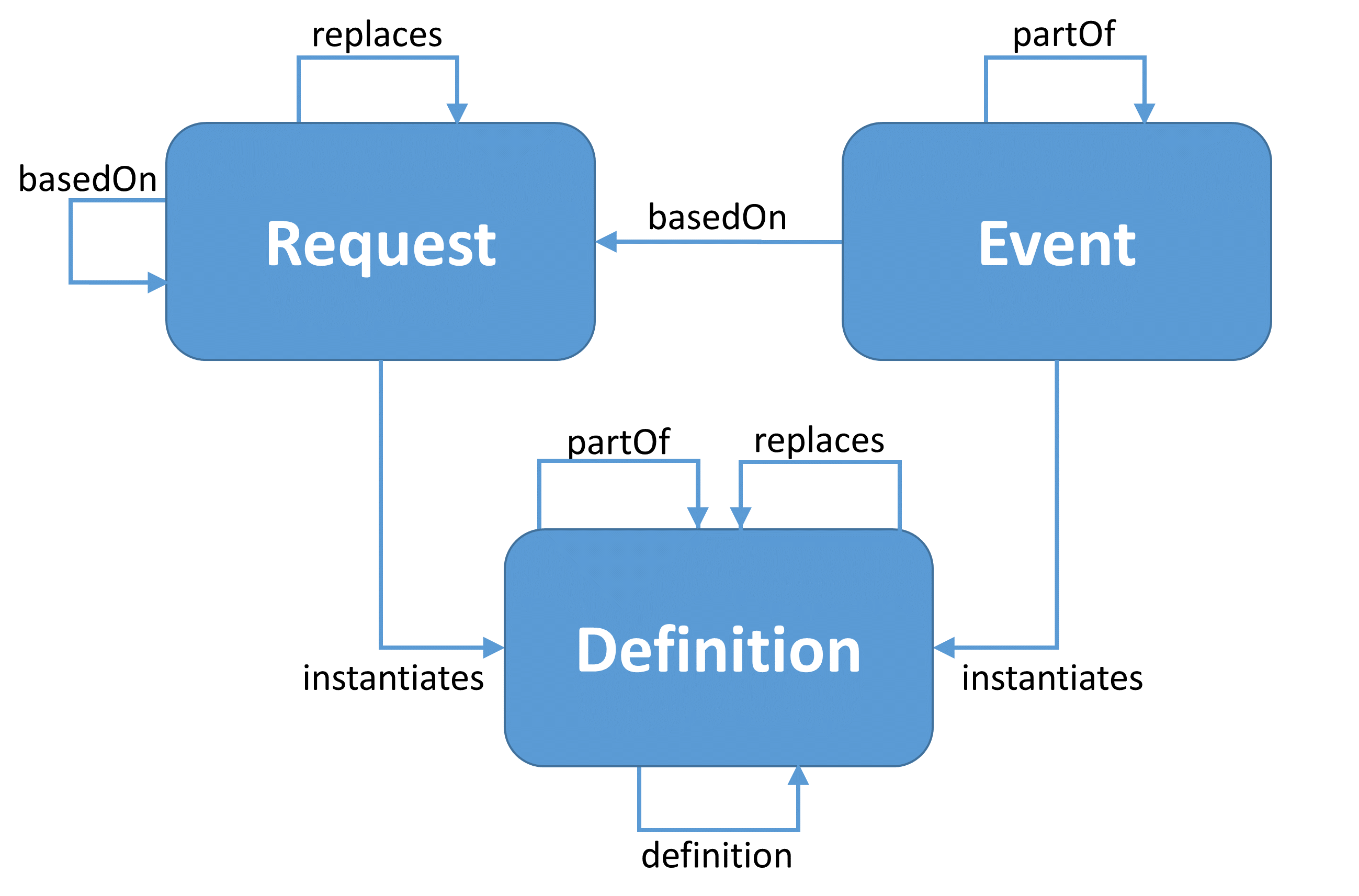

These three patterns of resources have a standard set of relationships, both with themselves, as well as with each other.
Specifically:
This list of relationships is not exhaustive, but covers those that are "standardized" as part of the patterns. Further description and guidance on these relationships can be found in the Request, Event and Definition logical patterns.
Requests are resources that represent the proposal, plan or order for an activity to occur. A Request pattern defines the common elements typically present on all request resources.
The amount of information needed for a Request to be actionable can vary by circumstance. Some request instances might not be "fully specified" - additional information from protocol, patient preference and/or professional decision-making may be necessary before the authorized action can occur. For example, a MedicationRequest might be specified without indicating a strength or route in situations where the pharmacy (or even nursing station) has the authority to determine those parameters. A VisionPrescription might not be actionable until frames have been chosen and the necessary measurements of the patient's face have been taken to allow the lenses to be positioned appropriately within the frames.
All requests with an intent of "order" authorize something. Whether what is authorized is sufficient to be immediately actionable depends on who is fulfilling the order and the context in which the fulfillment request is made. The determination of whether a given "request" is actionable may be made by the systems involved or the humans being asked to act.
As well, the existence of a "Request" instance doesn't necessarily imply that fulfillment will be requested immediately - or even ever. The decision to request fulfillment may be delegated to the patient or to down-stream practitioners. Such fulfilling practitioners may need to capture additional information prior to executing the fulfillment.
Events are resources that represent the ongoing or completed execution of some activity or observation. For example, a clinical procedure, a financial transaction, the recording of a diagnosis, etc. An Event pattern defines the common elements typically present on all event resources.
Definitions are resources that represent activities that could be performed in a time and subject-independent manner such as a protocol, order set, clinical guideline, etc. A Definition pattern defines the common elements typically present on all definition resources.
Not all elements listed in the patterns will necessarily be included as elements in the resources that adhere to the patterns. In some cases, the elements simply aren't relevant for the resource. However, in other cases, the elements might be relevant, but are not widely supported by existing systems. In these cases, extensions may be used. This specification defines a number of 'common' extensions that correspond to standard workflow elements found in the patterns and, in a few cases, elements that were candidates for inclusion in the patterns but were not common enough for inclusion in any of the resources but were still felt to be useful. These extensions are found in three collections:
Note to Implementers: Workflow Issues
- It is possible to replace some portions of the MessageHeader with a reference to the Task resource. Doing so would mean consistency in how asynchronous requests are represented using REST and messaging. However, it introduces an additional layer of complexity and formality into the messaging paradigm that may be unwelcome, particularly for those systems that do not currently foresee a need to support both RESTful and messaging invocations of workflow
- The OperationDefinition resource could be used to define types of tasks and the sets of parameters that can go with them. Is this an appropriate use of the OperationDefinition resource?
- The SupplyRequest, DeviceRequest and VisionPrescription resources have a significant degree of overlap. Should they remain distinct resources?
- SpecimenDefinition is defining a 'thing', not an action, so it is not appropriate for the Definitions group.
Feedback is welcome here
