C-CDA to FHIR Patient

This page provides a mapping from CDA to FHIR. For the FHIR to CDA mapping, please refer to Patient FHIR → CDA. For guidance on how to read the table below, see Reading the C-CDA ↔ FHIR Mapping Pages



C-CDA to FHIR

C-CDA¹
US Realm Header recordTarget		 FHIR
Patient		 Transform Steps
/patientRole/id .identifier CDA id ↔ FHIR identifier
/patientRole/addr .address CDA addr ↔ FHIR address
/patientRole/telecom .telecom CDA telecom ↔ FHIR telecom
/patientRole/patient/name .name CDA name ↔ FHIR name
/patientRole/patient/administrativeGenderCode .gender CDA coding ↔ FHIR CodeableConcept
CDA administrativeGender → FHIR gender
/patientRole/patient/birthTime .birthDate CDA ↔ FHIR Time/Dates
/patientRole/patient/maritalStatusCode .maritalStatus CDA coding ↔ FHIR CodeableConcept
/patientRole/patient/raceCode .extension:us-core-race CDA coding ↔ FHIR CodeableConcept
This should map to ombCategory extension
/patientRole/patient/sdtc:raceCode .extension:us-core-race CDA coding ↔ FHIR CodeableConcept
/patientRole/patient/ethnicGroupCode .extension:us-core-ethnicity CDA coding ↔ FHIR CodeableConcept
This should map to ombCategory extension
/patientRole/patient/sdtc:ethnicGroupCode .extension:us-core-ethnicity CDA coding ↔ FHIR CodeableConcept
/patientRole/patient/languageCommunication/languageCode .communication.language
/patientRole/patient/languageCommunication/preferenceInd .communication.preferred
/patientRole/providerOrganization .managingOrganization

1. XPath abbrievated for C-CDA US Realm recordTarget as:
ClinicalDocument/recordTarget/

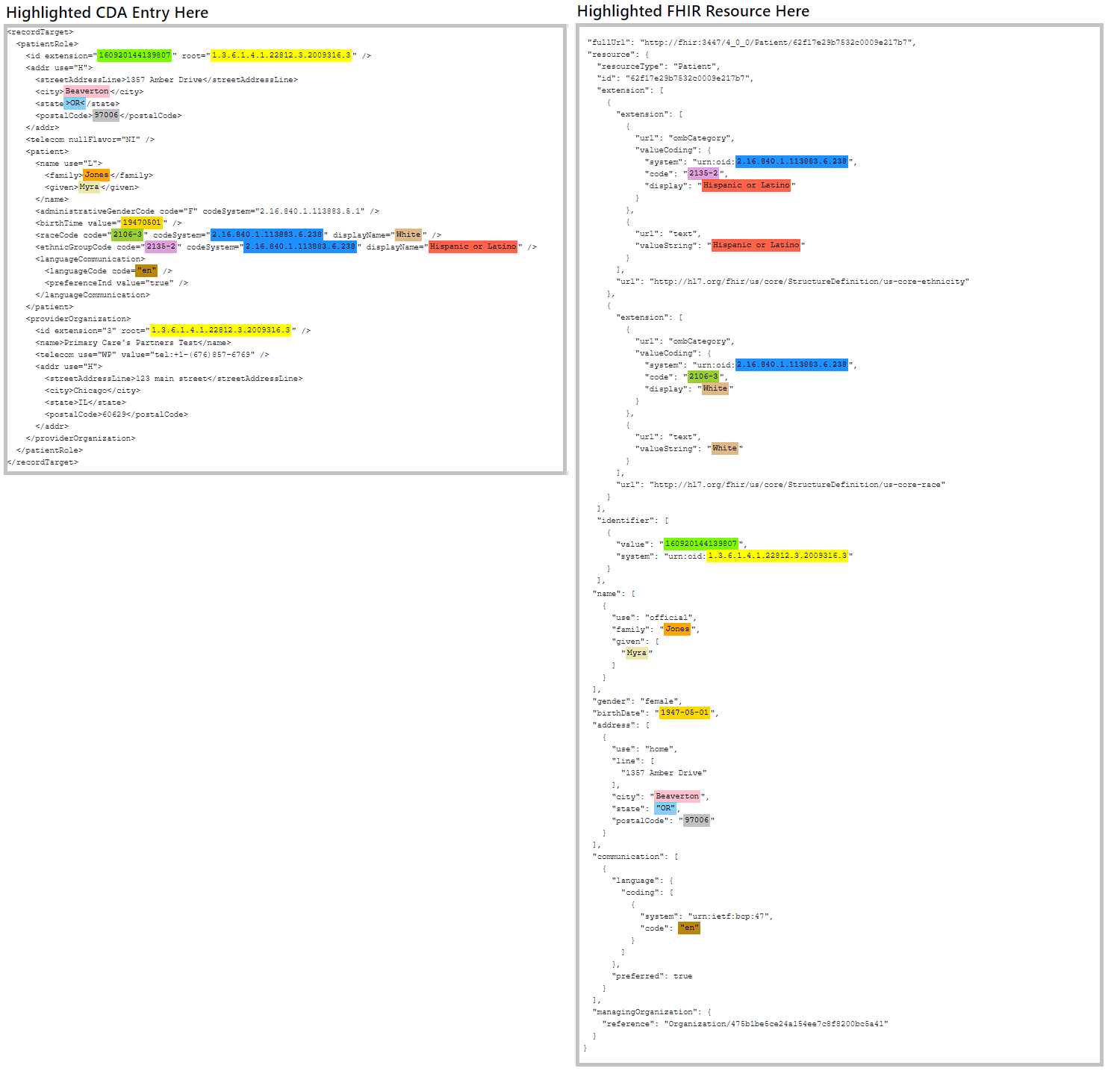

Illustrative example

An illustrative example with higlighting is shown above based on the consensus of mapping and guidance. Not all possible elements in CDA or FHIR may be represented. To access the content for the above example, click on the links below.


Links to example content

The consensus mapping example developed through multiple vendors are available below:

Prior work and Expanded Spreadsheets

As reviewed in the methodology, a more comprehensive review was performed via spreadsheets. These spreadsheets have been consolidated and further revised in the tables above but are provided for reference here
